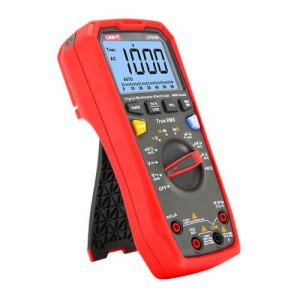

UNI-T UT61B+ True RMS Digital Multimeter

Product Description:
The UNI-T UT61B+ True RMS Digital Multimeter is a professional-grade measuring instrument designed for high-accuracy electrical testing in industrial, commercial, and educational applications. With a measurement capacity of up to 1000V AC/DC, 10A current, and advanced features like True RMS, USB communication, and audible/visual alarms, this multimeter provides reliable and safe performance for electricians, engineers, and technicians.

Equipped with a large 6000-count display, analog bar graph, and backlight, it ensures clear visibility in any environment. The UT61B+ also offers NCV detection, data hold, Max/Min/Relative modes, and input protection, making it a versatile tool for diagnosing electrical systems with precision.

Key Features:

• True RMS Measurement: Accurate readings of AC signals with distortion.

• High Voltage Capability: Measures up to 1000V AC/DC.

• Current Measurement: Up to 10A AC/DC.

• Resistance & Capacitance: Resistance up to 60MΩ, capacitance up to 60mF.

• Frequency & Duty Cycle: Measures up to 10MHz and 0.1–99.9% duty cycle.

• Safety Features: Audible/visual alarms, NCV detection, input protection.

• Convenience: USB communication for data logging, data hold, max/min, and relative measurement.

• Display: 6000 counts with 31-segment analog bar graph and backlight.

Technical Specifications:

• AC Voltage: 1000V ±(1%＋3)

• DC Voltage: 1000V ±(0.5%＋3)

• AC Current: 10A ±(1.2%＋5)

• DC Current: 10A ±(1%＋2)

• Resistance: 60MΩ ±(1%＋2)

• Capacitance: 60mF ±(3%＋5)

• Frequency: 10MHz ±(0.1%＋4)

• Duty Cycle: 0.1% – 99.9% ±(2%＋5)

• Display Count: 6000

• Bandwidth: 40Hz – 500Hz

• Analog Bar Graph: 31 segments

• Power Supply: 4 × 1.5V R03 batteries

• Dimensions: 190 × 90 × 50 mm

• Weight: ~350 g

Applications:

• Electrical and electronics troubleshooting

• Industrial equipment maintenance

• Circuit design and testing

• Automotive diagnostics

• Educational labs and training centers

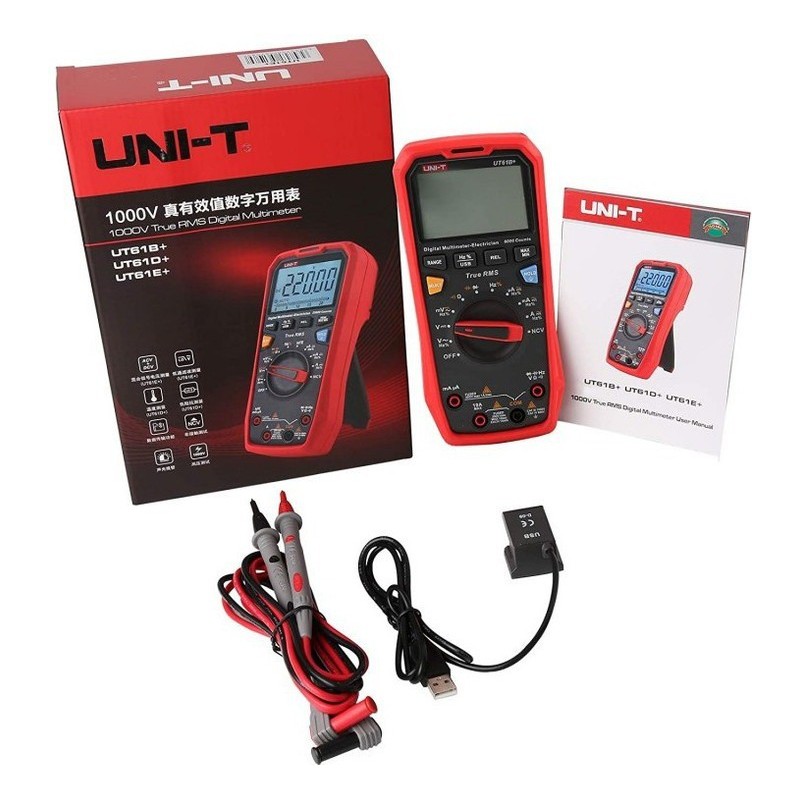

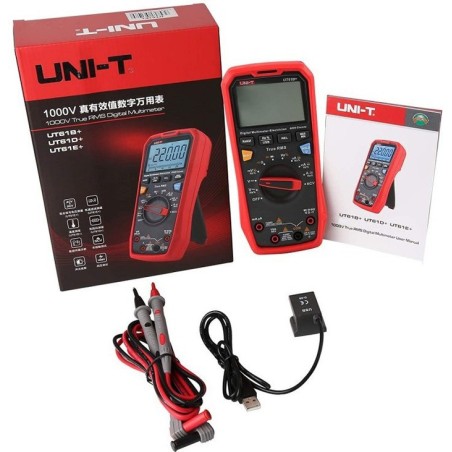

Package Includes:

• 1 × UNI-T UT61B+ True RMS Digital Multimeter

• 1 × Test Lead Set

• 1 × USB Cable (for PC connection)

• 1 × User Manual

Why Choose the UNI-T UT61B+?
With its True RMS accuracy, wide measurement range, built-in safety features, and PC connectivity, the UNI-T UT61B+ is the perfect choice for professionals who need a dependable and versatile multimeter.

Upgrade your toolkit with the UNI-T UT61B+ Digital Multimeter—precision, safety, and reliability in one device.
