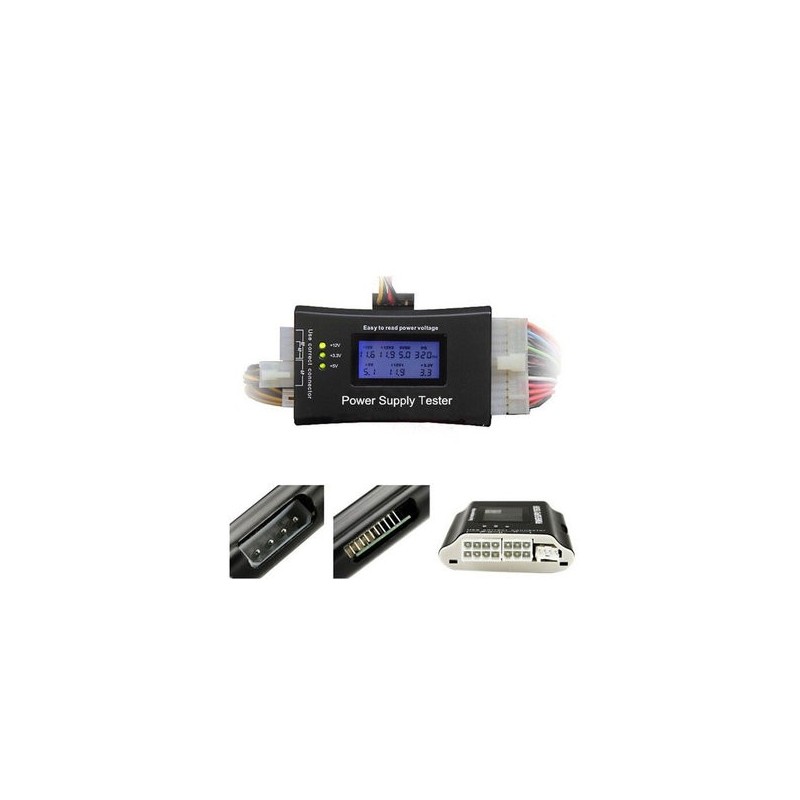

Digital LCD Power Supply Tester for PC ATX/BTX/ITX 4Pin SATA HDD

Reference RBD-1758

Digital LCD
Power Supply Tester for PC
ATX/BTX/ITX 4Pin
SATA HDD

Description
Product Details

Description

The SD power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested. LCD`s indicate the status of voltage .The PC / SPS is suitable for the ambitious hobby user , as well as for a quick functional check in specialized trade. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

This 20/24 Pin PSU ATX BTX ITX PC Power Supply Tester With LCD is powerful testing equipment for PC power supply.
Can detect ATX, BTX, ITX computer power supply and avoid damage to your expensive computer equipment.
Simply plug the tester into your power supply's 20/24 pin female Molex connector and the LED lights will indicate the actual status of your power supply and the LCD will show the unnormal voltage
The SD power supply tester is a robust voltage, tester for PC-power supply, ATX. BTX and ITX compliant, power supplies can be tested. LCD's indicate the status of voltage
The PC / SPS is suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Weight:	82g
Size ( about ):	12 x 6 x 2 cm
Voltage source :	20/24 pin ( ATX - connector )
Voltage test :	(+12V , -12V , +5V , -5V , +3.3V , +5V Stand by (SB) 12V power Good ( PG ))
Connectors:	Floppy, HDD, CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express )
Shipment Weight	0.096 kg
Shipment Dimensions	22 × 10.5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Operating Procedure:

Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite
Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.
If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.

Package Includes:

1 x Digital LCD Power Supply Tester for PC ATX/BTX/ITX 4Pin SATA HDD.
