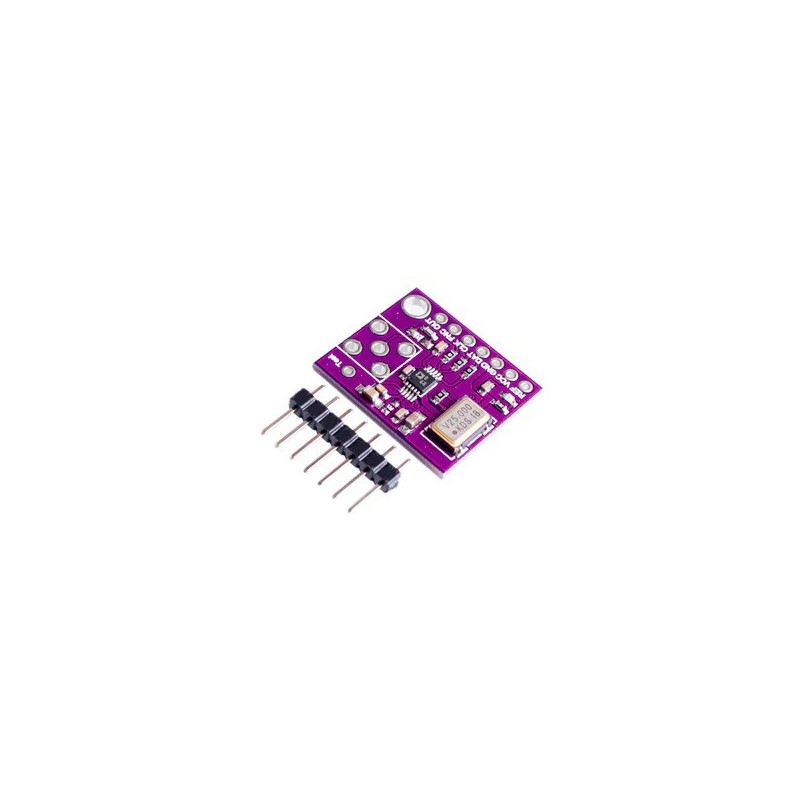

CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module

Reference RBD-2228

Working voltage: 2.3V-5.5V.
Working temperature range: -40 ~ + 105.
Onboard 25MHZ (accuracy of 50ppm) active crystal.
On-board high-speed amplifiers

Description
Product Details

Description

CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal. Easy to adjust, the clocked clock is 25MHz, precision 0.1Hz, the clock frequency is 1MHz, the precision is up to 0.004Hz. Frequency excitation/waveform generation.

CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module is used in Liquid, gas flow measurement. Sensing applications – approximation, sports, defect detection. Linear loss, linear decay, Test equipment, medical equipment, Scan clock generator.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Programmable waveform generator capable of producing sine, triangular, and square waveforms
Onboard 25 MHz clock crystal for high-frequency stability
Provides a 0-5V output signal for each waveform type
SPI interface for easy microcontroller control
Built-in frequency and phase registers for precise waveform generation
Low power consumption

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Audio signal generation
Test and measurement equipment
Signal modulation
Frequency sweeping
Synthesizer circuits

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage (Volt)	2.3 – 5.5
Working Temperature Range (celcius)	-40 ~ + 105
On board Crystal Frequency ( MHz)	25
Material	Metal and Plastic
Model	AD9833BRMZ
Dimensions (cm)	24 x 20 x 4
Weight (gm)	2
Shipment Weight	0.005 kg
Shipment Dimensions	6 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module
