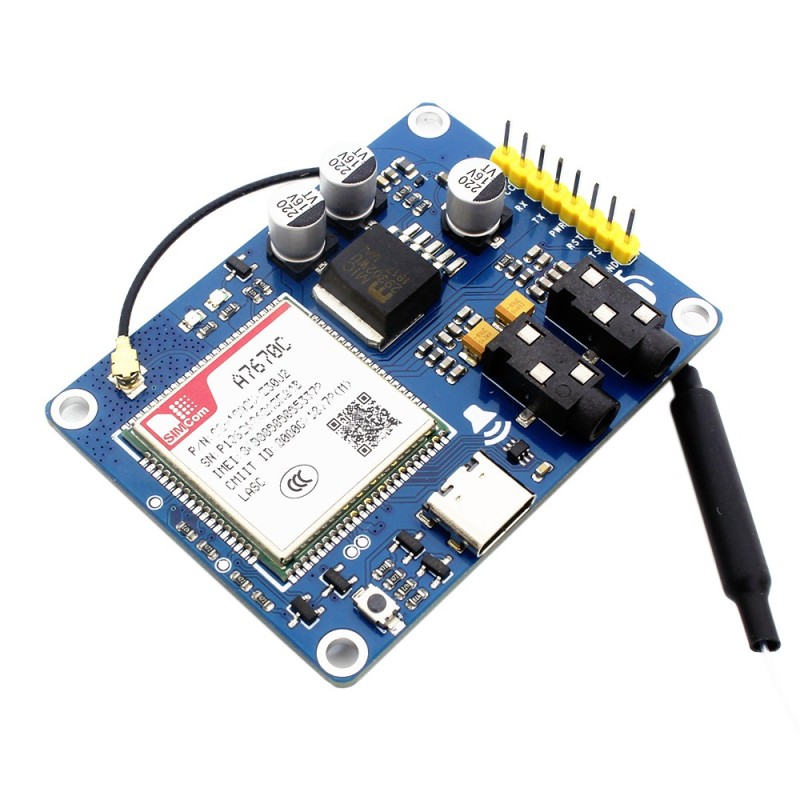

SIM A7670C R2 4G LTE GSM Module Compatible with STM32 Raspberry Pi

Reference RBD-2328

SIM A7670C R2 4G LTE GSM Module supports LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE communication modes
Achieves up to 10Mbps downlink and 5Mbps uplink rates for high-throughput IoT applications
Built-in support for telematics, surveillance, POS, industrial routers, and remote diagnostics
Wide operating temperature range from -30°C to +80°C for reliable performance in harsh environments
Compatible with STM32, Raspberry Pi, and other microcontrollers for seamless integration

Description
Product Details

Description

The SIM A7670C R2 4G LTE GSM Module is a robust solution for IoT applications requiring reliable wireless communication. Supporting LTE Cat 1 with LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE modes, it achieves downlink speeds up to 10Mbps and uplink speeds of 5Mbps. This versatile module integrates multiple network protocols, making it ideal for telematics, surveillance, POS systems, and remote diagnostics. With a wide voltage range (5V–8.4V) and extended operating temperature, it ensures consistent performance in various conditions. Designed for STM32, Raspberry Pi, and other microcontrollers, it offers easy integration for data-intensive IoT projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Multi-Mode Communication: Supports LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE.
High Throughput: Offers 10Mbps downlink and 5Mbps uplink speeds.
Wide Voltage Range: Operates between 5V and 8.4V for flexibility in power configurations.
IoT-Ready: Built-in protocols for telematics, POS systems, industrial routers, and more.
Broad Compatibility: Works seamlessly with STM32, Raspberry Pi, and other microcontrollers.
Durable Design: Operates reliably in temperatures ranging from -30°C to +80°C.
Compact Size: Lightweight and compact for easy integration into IoT devices.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Telematics: Ideal for vehicle tracking and fleet management systems.
Surveillance Systems: Provides reliable data communication for remote monitoring.
POS Terminals: Ensures seamless connectivity for payment systems.
Industrial Routers: Enhances communication in industrial IoT networks.
Remote Diagnostics: Enables efficient data transfer for equipment monitoring.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Communication Modes	LTE-TDD, LTE-FDD, GSM, GPRS, EDGE
LTE-FDD Bands	B1, B3, B5, B7, B8, B20
LTE-TDD Bands	B34, B38, B39, B40, B41
Data Transfer Speeds	Downlink: 10Mbps, Uplink: 5Mbps
Power Supply	5V–8.4V
Hibernation Power	3mA
Audio Interface	Supports one set of audio interfaces
Serial Port	Baud rates: 300bps to 3686400bps, default 115200bps
Operating Temperature	-30°C to +80°C
Extended Temperature	-40°C to +85°C
Dimensions	Compact module size
Shipment Weight	0.021 kg
Shipment Dimensions	6 x 5 x 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Datasheet

Package Includes:

1 x SIM A7670C R2 4G LTE GSM Module Compatible with STM32 Raspberry Pi
