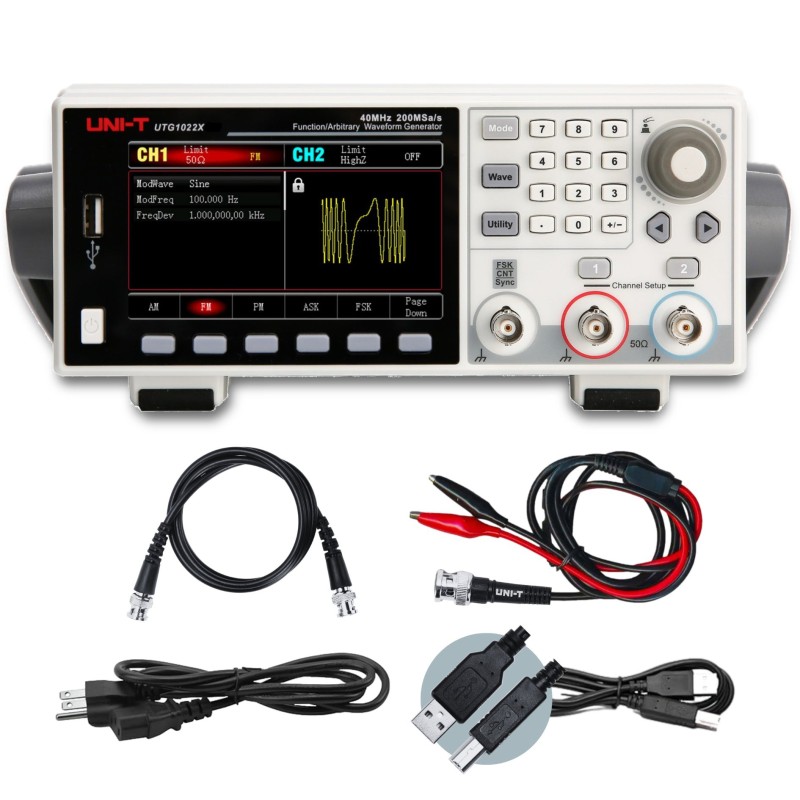

UTG1022X - The Arbitrary Waveform Generator with Impressive Performance

UNI-T UTG1000X Frequency Range

Prepare to take your waveform generation to new heights! Utilizing advanced direct digital synthesis technology, the UTG1022X ensures the generation of highly accurate and stable waveform outputs, boasting an impressive resolution of 1μHz. This makes it an economical, high-performance, and multi-functional arbitrary waveform generator.

UNI-T UTG1022X Key Specifications:

• • Frequency Output: 20MHz
  • Channels: 2
  • Sample Rate: 200MSa/s
  • Vertical Resolution: 16bits
  • Arbitrary Wavelength: 4kpts
  • Working Mode: Continue, Modulation, Frequency Sweep
  • Continue: Sine, Square, Ramp, Pulse, Noise, DC, Arb
  • Modulation Types: AM, PM, FM, ASK , PSK, FSK, PWM
  • Frequency Sweep: Linear, Logarithmic
  • Display: 4.3 inch TFT LCD Screen

Multiple Analog and Digital Modulations:

UNI-T UTG1000X Analog and Digital Modulations

Engineers can leverage the flexibility and precision of arbitrary waveform generators across a wide range of applications to ensure accurate testing, development, and analysis in their respective fields. UTG1022X does this just fine! The system provides support for various modulation methods, encompassing both analog and digital domains, including AM (Amplitude Modulation), FM (Frequency Modulation), PM (Phase Modulation), FSK (Frequency Shift Keying), ASK (Amplitude Shift Keying), PSK (Phase Shift Keying), and PWM (Pulse Width Modulation).

Burst Functions:

Do you know that UTG1022X arbitrary waveform generators support multiple pulse modes and modulation signal sources? The system accommodates three pulse modes: "N cycle," "infinite," and "gated." On top of these bursts, it also supports two modulation signal sources: "Internal" and "External."

Digital Sampling Technology:

You will experience enhanced signal stability and precision with our UTG1022X waveform generator, thanks to cutting-edge digital sampling technology. UTG1022X comes with 200MSa/s sampling rate and 16-bit vertical resolution. Enjoy lower output waveform jitter, ensuring unparalleled accuracy in your applications. Elevate your testing and research with the excellence of our advanced technology.

Arbitrary Waveforms:

UNI-T UTG1000X Outputs/ Bursts

Generate arbitrary waveforms effortlessly using a PC software, providing seamless control and customization for your waveform generation needs. UTG1022X features a built-in 200 arbitrary waveforms, providing flexibility and convenience at your fingertips.

Frequency Sweep Methods:

Two frequency sweep types - linear and logarithmic - are supported by this waveform generator. This feature allows you to seamlessly choose between these two methods, catering to diverse frequency modulation requirements. In addition, UTG1022X also generate precise pulse train outputs.

Signal-to-Noise Ratio:

UTG1022X comes with 35MHz bandwidth (- 3dB). Achieve precise superposition of small signals onto a large DC with the UTG1022X, which boasts lower output noise and a higher signal-to-noise ratio. This ensures optimal clarity and accuracy in your signal generation.

UNI-T UTG1000X Digital Sampling

Explore unparalleled versatility and performance with our UTG1022X arbitrary waveform generator – an economical, high-performance, and multifunctional solution for all your waveform generation needs. Elevate your testing and research capabilities with this advanced instrument that combines affordability with exceptional functionality. Unlock a world of possibilities in waveform generation for various applications. Get one today and discover precision without compromise!
