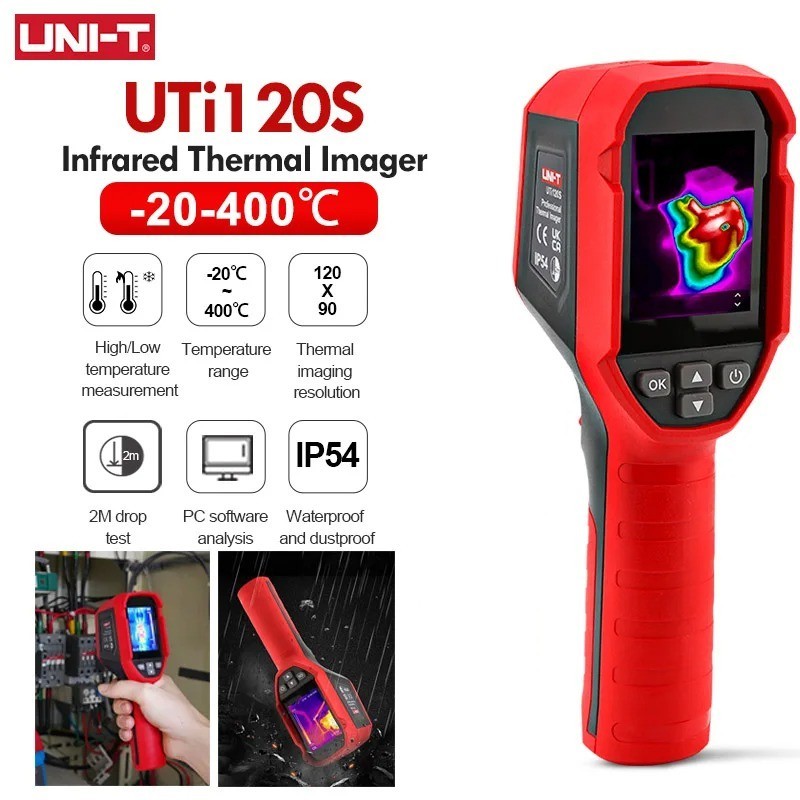

UNI-T UTi120S Handheld Thermal Imaging Camera 120×90 Infrared Resolution -20℃ to 400℃ Range

Product Description:
The UNI-T UTi120S Thermal Imager is a rugged and cost-effective handheld infrared camera designed for fast, accurate temperature measurement and thermal diagnostics. With a 120×90 infrared resolution (10,800 pixels), adjustable emissivity (0.01–0.99), and a temperature measurement range of -20℃ to 400℃, it’s perfect for electrical inspection, HVAC maintenance, building diagnostics, and industrial troubleshooting.

Featuring a 2.4-inch TFT LCD display, six color palettes, laser pointer, and temperature alarms, the UTi120S provides clear and reliable results in real-time. Built to withstand tough environments, it is IP54 rated and drop-tested up to 2 meters. Data can be easily transferred via USB Type-C or stored on a 16GB TF card, making it ideal for professional fieldwork and PC-based analysis.

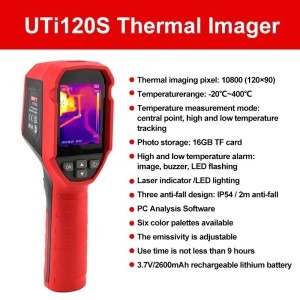

Key Features:

• Infrared Resolution: 120×90 (10,800 pixels) with ≤60mK thermal sensitivity.

• Temperature Range: -20℃ to +400℃ with ±2℃ / ±2% accuracy.

• Fast Measurement: <500ms response time, 0.1℃ resolution.

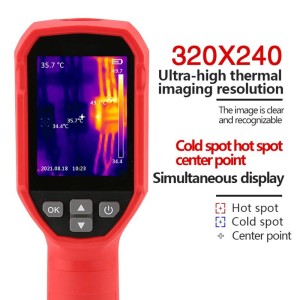

• Display: 2.4" TFT LCD, 320×240 resolution.

• Modes: Thermal, thermal blending, PiP (selected models).

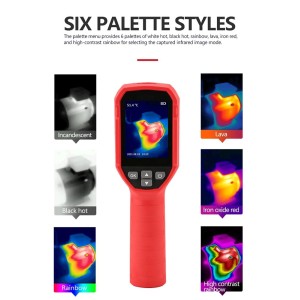

• Color Palettes: 6 options (Rainbow, Iron Red, White Hot, Black Hot, Lava, High-Contrast Rainbow).

• Storage: Supports 16GB TF card image storage (BMP format).

• Alarms: High/low temperature alarm with image, LED, and buzzer alerts.

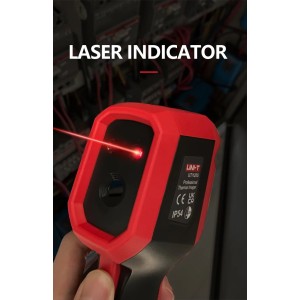

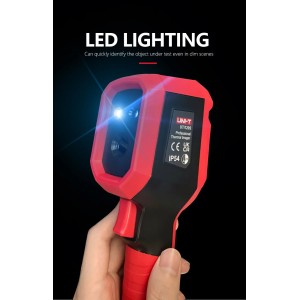

• Laser Pointer & LED Light: For accurate targeting in dark environments.

• Durability: IP54 dust/water protection, 2m drop resistance.

• Battery: Rechargeable 3.7V/2600mAh Li-ion (up to 9 hours use).

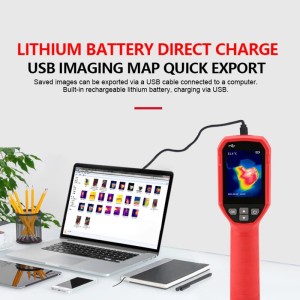

• PC Software: USB data transfer for analysis and reporting.

Technical Specifications:

• Sensor: Uncooled infrared focal plane, 17μm pixel size

• Field of View (FOV): 50°(H) × 38°(V)

• Infrared Spectrum Bandwidth: 8–14μm

• Temperature Accuracy: ±2℃ or ±2% (-10℃ to 400℃)

• Image Format: BMP

• Communication: USB Type-C

• Automatic Shutdown: Selectable (5/10/30 mins), default 30 mins

• Dimensions: 236 × 75.5 × 86 mm

• Weight: ~350 g

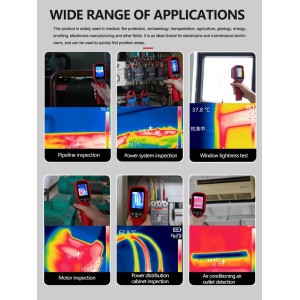

Applications:

• Electrical inspections and circuit analysis

• HVAC and refrigeration diagnostics

• Building insulation and moisture detection

• Mechanical equipment maintenance

• Energy audits and preventive maintenance

Package Includes:

• 1 × UNI-T UTi120S Thermal Imager

• 1 × 16GB TF Card

• 1 × USB Type-C Cable

• 1 × Rechargeable 2600mAh Battery

• 1 × User Manual

Why Choose the UNI-T UTi120S?
With its affordable price, rugged build, accurate measurement range, and advanced analysis features, the UTi120S is an ideal choice for professionals in electrical, HVAC, and industrial fields. Whether for preventive maintenance or diagnostics, it delivers reliable thermal imaging anytime, anywhere.
