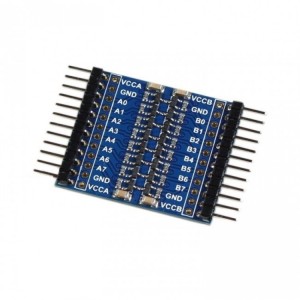

Logic Level Converter

RBD-0272
Waveshare

  • Voltage level: 1.8V-6V
  • Dimension: 38mm x 31.6mm
  • Conversion  level  range:  1.8 V-6 V
  • Instructions for use:  (3.3 V,  5 V  to  each other)
  • 4 pairs of power supply interfaces, supports more situation
  • Use tantalum capacitors for power filter, provides more stability
  • VCCB 5V  power supply  (can  be an external  5V power supply)
BDT 550
BDT 550 BDT 550 BDT 550 BDT 550
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 550 Tax excluded
BDT 550 Tax included
BDT 0 Tax
BDT 550 Tax excluded
BDT 0 Tax
BDT 550 Tax included
Quantity
Sold-out

10 people have purchased this item
There are not enough products in stock
Description

8 channel Level Switching (3.5V to 5V) IO Module Logic Level Converter is able to convert signals from 5V down to 3.3V (and vice versa) meaning you can safely use 5V or 3.3V devices with the Raspberry Pi (compatible).

Because raspberries GPIO is  3.3 V, so regular 5 V sensor is not easy.

Therefore the product realization 8 – channel high – voltage logic and logic low voltage bi-directional transformations embodiment Ax and Bxbi-directional conversion between the two.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

How to Use?

In the case of translating between 3.3V and 5V system:

  1.     VCCA/VA connects to the 3.3V power supply
  2.     VCCB/VB connects to the 5V power supply
  3.     GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
  4.     When Ax has TTL 3.3V input, Bx will get TTL 5V output
  5.     When Bx has TTL 5V input, Ax will get TTL 3.3V output
  6.     NO direction control required

Features :

  1. VCCA Raspberry 3.3 V
  2. 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
  3. 4 pairs of power supply interfaces, supports more situation
  4. Use tantalum capacitors for power filter, provides more stability
  5. VCCB 5V  power supply  (can  be an external  5V power supply)
  6. GND connect the negative pole

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Voltage Level1.8V to 6V
Conversion Level Range1.8V to 6V
Dimensions in mm (LxWxH)60 × 40 × 30 mm
Weight (gm)4
Shipment Weight0.005 kg
Shipment Dimensions6 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Logic Level Converter.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0272

Specific References

EAN13
0272
