HR202 Humidity Detection Sensor Module Robotics Bangladesh
  • HR202 Humidity Detection Sensor Module Robotics Bangladesh
  • HR202 Humidity Detection Sensor Module Robotics Bangladesh

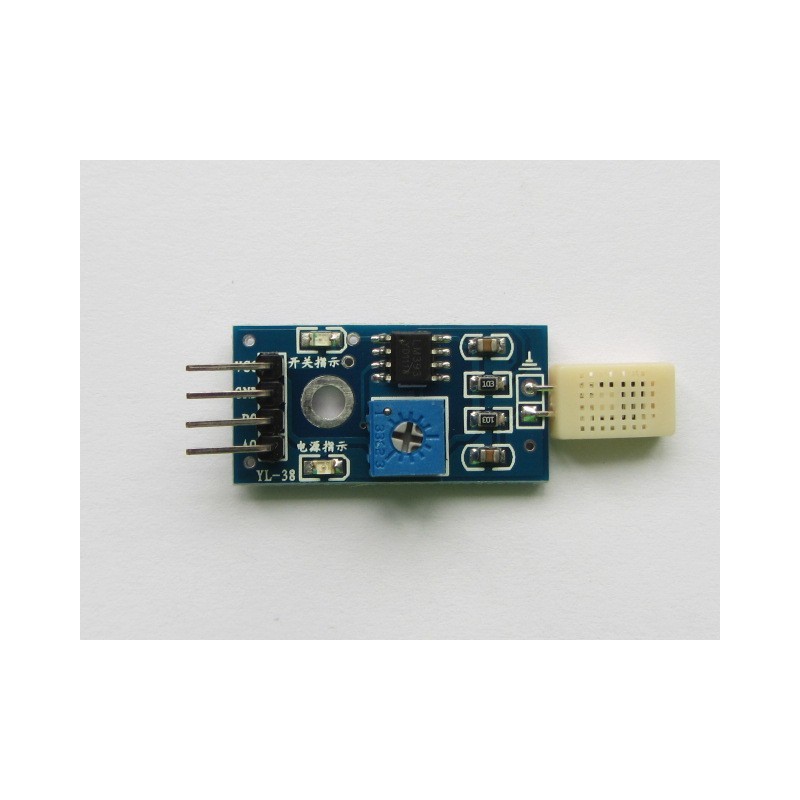

HR202 Humidity Detection Sensor Module

RBD-0147

  • Adjustable Sensitivity, External GND.
  • Detect Ambient Humidity.
  • Provided with Fixed Bolt Hole, Convenient to Install.
  • Power Indicator Light & Digital Output Indication Lamp.
  • Using LM393 Chip for Stable Work.
  • DO Small Digital Outputs Interface (0 & 1).
BDT 299BDT 299 BDT 299 BDT 299 BDT 299
BDT 265 Save BDT 34
BDT 265 BDT 265 BDT 265 BDT 265
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 299 BDT 265 Tax excluded
BDT 299 BDT 265 Tax included
BDT 0 BDT 0 Tax
BDT 299 BDT 265 Tax excluded
BDT 0 BDT 0 Tax
BDT 299 BDT 265 Tax included
Quantity
In-Stock
74 Items

68 people have purchased this item
1 person recently added this item to the cart
74 items in stock
Description

 Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Specifications

  1. Adjustable Sensitivity, External GND.
  2. Detect Ambient Humidity.
  3. Provided with Fixed Bolt Hole, Convenient to Install.
  4. Power Indicator Light & Digital Output Indication Lamp.
  5. Using LM393 Chip for Stable Work.
  6. DO Small Digital Outputs Interface (0 & 1).
  7. Adjustable trigger level from preset.
  8. LEDs indicating output and power.

Descriptions:

  1. can detect the humidity of the surrounding environment
  2. adjustable sensitivity (blue digital potentiometer adjustment)
  3. Operating voltage 3.3V-5V
  4. board PCB size: 3cm * 1.6cm
  5. power indicator (red) and digital switch output indicator (green)
  6. comparator with LM393 chip, which is stable

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
IC ChipHL-01
Operating voltage (v)3.3 ~ 5V DC
Operating Current15mA
Humidity Range20 ~ 95%RH
Output Digital0V or 5V,
Length (mm)51
Width (mm)15
Height (mm)7
Weight (gm)5
Shipment Weight0.01 kg
Shipment Dimensions6 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Module interface specification (4-wire):

VCC external 3.3V-5V

GND external GND

DO small plate switch digital output interface (0 and 1)

AO board analog output interface

Package Includes:

1 x HR 202 Humidity Detection Sensor Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0147
74 Items

Specific References

EAN13
0147
