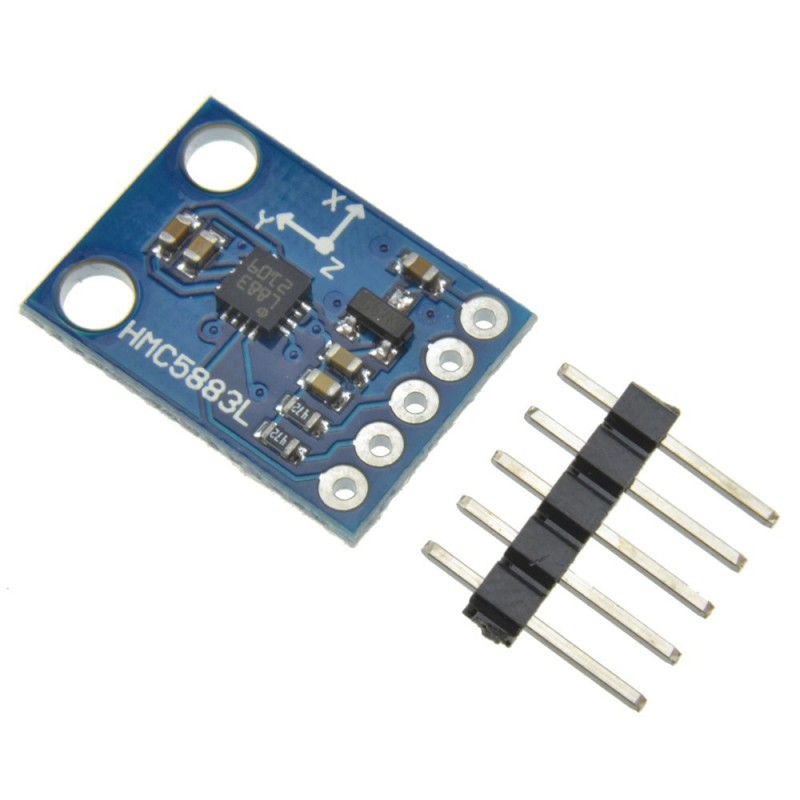

Compass Sensor HMC5883L HW-127

Reference RBD-3404

Compass Sensor HMC5883L HW-127 3-axis digital magnetometer module
Precise heading detection for robotics, UAV, and navigation projects
I2C communication for easy integration with Arduino, ESP32, STM32
Wide measuring range of ±1.3 to 8 Gauss
3–5V operating voltage with onboard 5V-safe logic
Compact and lightweight design for embedded applications

Description
Product Details

Description

The Compass Sensor HMC5883L HW-127 is a high-precision 3-axis digital magnetometer module designed to provide accurate heading and magnetic field measurements. This Compass Sensor HMC5883L HW-127 communicates through the I2C protocol, making it simple to interface with popular development boards such as Arduino, ESP32, and STM32. Because it supports 3–5V input and includes onboard logic level compatibility, it works safely with both 3.3V and 5V microcontrollers. The module measures magnetic fields in the range of ±1.3 to 8 Gauss, allowing developers to calculate direction, detect orientation, and build navigation systems efficiently. Moreover, its compact HW-127 form factor makes it ideal for drones, robotics, and portable embedded systems. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

3-Axis Magnetic Field Detection – Measures X, Y, and Z axis magnetic components for accurate digital compass readings.
Precise Heading Output – Enables reliable north detection and orientation tracking in navigation systems.
I2C Digital Interface – Simplifies communication with microcontrollers using only SDA and SCL lines.
3–5V Compatible Operation – Onboard circuitry allows safe use with both 3.3V and 5V systems.
Wide Magnetic Range – Supports ±1.3 to 8 Gauss measurement range for flexible applications.
Compact & Lightweight – Small PCB size (14.8mm × 13.5mm) and only 2g weight.
Data Ready Pin Support – Improves read speed and synchronization in advanced applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Robot Navigation Systems – Determine heading direction for autonomous movement.
UAV & Drone Projects – Stabilize and control aerial orientation.
Digital Compass Projects – Build portable electronic compass devices.
IoT Orientation Detection – Monitor magnetic field changes in smart systems.
Educational & STEM Projects – Ideal for learning magnetometer interfacing with Arduino.
Motion Tracking Systems – Combine with accelerometers for 9-DOF sensing solutions.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Type	3-Axis Magnetic Compass Module
Driver IC	HMC5883L / QMC5883L (Variant Based)
Operating Voltage	3V – 5V DC
Communication Protocol	I2C
Measuring Range	±1.3 – 8 Gauss
Length	14.8 mm
Width	13.5 mm
Height	3.5 mm
Weight	2 g
Shipment Weight	0.005 kg
Shipment Dimensions	3 × 2 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x Compass Sensor HMC5883L HW-127

2 x 5*1 Male Burg Connectors (without soldered).
