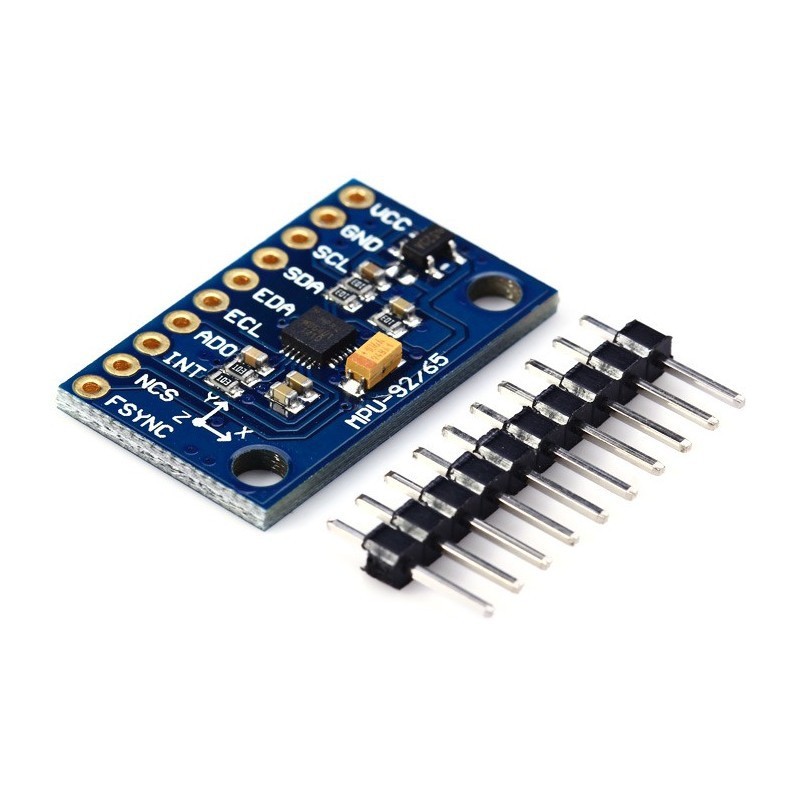

The MPU9255 Motion Sensor Module is an advanced 9-axis IMU that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer into a single compact package. Unlike most MPU9255 modules on the market that lack functional magnetometer support, this module comes with a fully working magnetometer, verified and tested at the RoboticsBD Lab for accuracy and reliability.
The MPU9255 Motion Sensor Module is an advanced 9-axis IMU that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer into a single compact package. Unlike most MPU9255 modules on the market that lack functional magnetometer support, this module comes with a fully working magnetometer, verified and tested at the RoboticsBD Lab for accuracy and reliability.
With I²C/SPI communication and a wide operating voltage range, the MPU9255 is ideal for robotics, drones, navigation systems, and motion tracking applications requiring precise orientation data.
Key Features:
9-Axis Sensor Fusion:
3-axis gyroscope
3-axis accelerometer
3-axis magnetometer (tested & working)
Magnetometer Confirmed: Most MPU9255 modules lack functional magnetometers – this one has been tested and validated at RoboticsBD.
Digital Motion Processing (DMP): Offloads computation for sensor fusion and motion tracking.
Communication Interfaces: I²C and SPI for easy microcontroller integration.
Configurable Ranges:
Gyroscope: ±250, ±500, ±1000, ±2000 °/s
Accelerometer: ±2, ±4, ±8, ±16 g
Magnetometer: ±4800 µT
Low Power Operation: Optimized for battery-powered devices.
Compact Size: Easy to integrate into DIY and professional projects.
Technical Specifications:
IC: MPU-9255
Gyroscope Resolution: 16-bit, ±250 to ±2000 °/s
Accelerometer Resolution: 16-bit, ±2 g to ±16 g
Magnetometer Resolution: 13-bit, ±4800 µT
Communication: I²C (up to 400kHz), SPI (up to 1MHz)
Operating Voltage: 3.3V (with onboard regulator, can accept 5V input)
Power Consumption: Low power, optimized for portable systems
Dimensions: Compact PCB module
Applications:
Robotics and drones (flight stabilization, navigation)
Motion tracking and orientation detection
Wearables and health monitoring devices
Augmented/Virtual Reality (AR/VR)
Electronic compass and GPS aiding systems
Package Includes:
1 × MPU9255 9-Axis Sensor Module (with functional magnetometer)
Why Choose This Module?
Most MPU9255 modules available in the market do not have a working magnetometer, limiting their use to 6-axis motion sensing. This module has been lab-tested at RoboticsBD to confirm full 9-axis functionality, ensuring you get accurate heading, orientation, and navigation data for your projects.
Upgrade your project with a true 9-axis MPU9255 module—precision-tested and verified for reliable performance.
