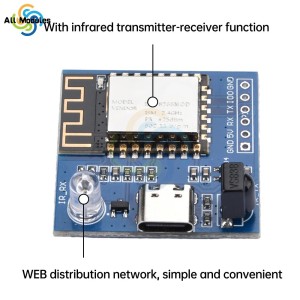

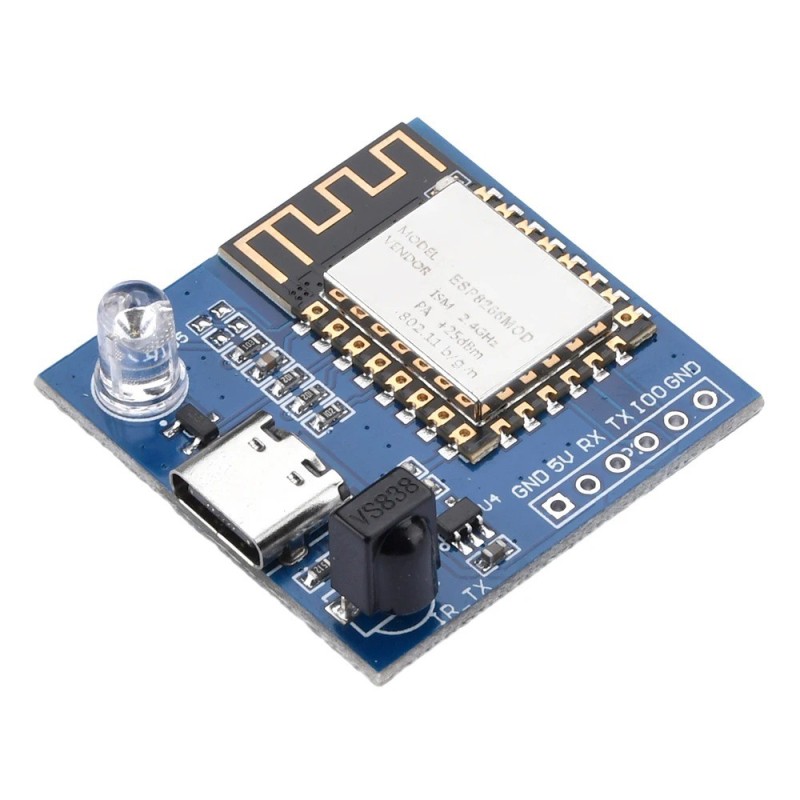

The ESP8266 Infrared Emission and Reception NEC Command Wi-Fi Module (Type-C) is a versatile and compact module designed for integrating Wi-Fi and infrared communication in one convenient solution. Powered by the ESP-12F chip, it supports NEC infrared protocol for transmitting and receiving commands wirelessly across devices and rooms. With its Type-C interface, easy web-based setup, and 5-meter IR range, it’s perfect for smart home control, IoT applications, and automation projects. Whether you’re building a remote-controlled home system or developing an IoT network, this module provides reliable, low-latency communication with simple setup and advanced functionality. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Dual Communication Support: Combines Wi-Fi networking and infrared transmission/reception in one compact device.
NEC Command Compatibility: Fully supports NEC infrared protocol for remote control systems.
Type-C Connectivity: Provides a modern, reversible USB interface for power and data transmission.
Easy Wi-Fi Setup: Configure via web-based interface accessible through a browser (192.168.4.1).
Cross-Room Communication: Transmit IR signals between rooms through Wi-Fi-enabled devices.
Real-Time Debugging: View logs and NEC commands over a serial connection for easy testing.
Flexible Reset Options: Quickly reset Wi-Fi credentials by shorting TX and RX pins.
Compact Design: 33mm x 33mm PCB, ideal for embedded or space-limited applications.
Reliable Wi-Fi Standard: Supports IEEE 802.11 b/g/n for strong, stable network communication.
Plug-and-Play Integration: Suitable for IoT developers, educators, and home automation enthusiasts.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart Home Control: Manage appliances via Wi-Fi and infrared commands.
IoT Development: Integrate into projects requiring Wi-Fi-enabled IR communication.
Cross-Room Remote Systems: Control TVs, ACs, and devices in other rooms over Wi-Fi.
Educational Use: Ideal for learning about Wi-Fi networks and IR communication protocols.
Automation Systems: Perfect for advanced automation setups combining IR and wireless control.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | ESP8266 Infrared Wi-Fi Module |
| Chipset | ESP-12F (ESP8266) |
| Interface | Type-C USB |
| Working Voltage | 5V |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Infrared Frequency | 38 KHz |
| Infrared Range | Up to 5 meters |
| Configuration | Web-based via 192.168.4.1 |
| Reset Function | Short TX and RX pins during power-on |
| Dimensions | 33 × 33 mm |
| Communication Protocol | NEC IR Command |
| Applications | Smart home, IoT, automation, remote control |
| Shipping Weight | 0.0076 kg |
| Shipping Dimensions | 3 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use:
Powering the Module:
- Plug in the module using a serial cable and monitor the output log via a serial terminal.
Connecting to the Module’s Hotspot:
- Use your mobile phone to search for a Wi-Fi hotspot named IR_WIFI.
- Connect to the hotspot.
Configuring Wi-Fi Settings:
- Once connected, the browser will automatically open the configuration page.
- If it doesn't, manually navigate to 192.168.4.1 in your browser.
- On the configuration page, click Configure, select your Wi-Fi router, and enter the password.
- Click Save to complete the configuration.
Verifying Connectivity:
- If the configuration is successful, the IR_WIFI hotspot will disappear.
- If it fails, reconnect to the hotspot and repeat the process.
Resetting Wi-Fi Credentials:
- Short the TX and RX pins and power on the module to erase the saved Wi-Fi settings.
- Reconfigure as needed.
Using Infrared Transmission:

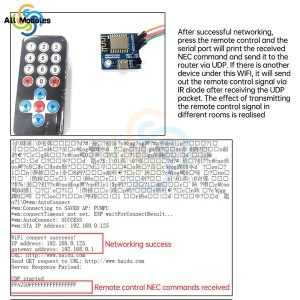

- The module receives NEC format commands via the remote control and transmits them over Wi-Fi.
- Other devices on the same network can receive these commands and emit infrared signals.
Package Includes:
1 x ESP8266 Infrared Emission and Reception NEC Command Wi-Fi Module Type-C
