Product Description:

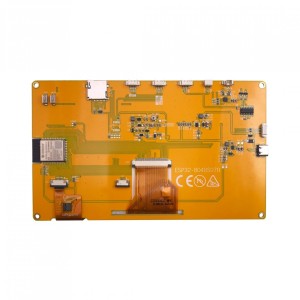

The ESP32-S3 7-Inch Smart Display is a powerful and versatile Wi-Fi and Bluetooth-enabled HMI development platform designed for IoT, automation, and interactive display projects. Built around the ESP32-S3 dual-core processor, it integrates a 7.0-inch 800×480 RGB TFT LCD touchscreen, making it perfect for LVGL GUI development, Arduino projects, and industrial control panels.
With 8MB PSRAM and 16MB Flash, this display delivers smooth graphics and reliable multitasking. It includes USB Type-C programming, TF card support, and camera compatibility (OV2640/OV7670) for advanced visual applications. The included acrylic case ensures protection and easy installation for embedded projects.
For developers, complete firmware examples, LVGL demos, schematics, and drivers are provided through the official resource link below.
Key Features:

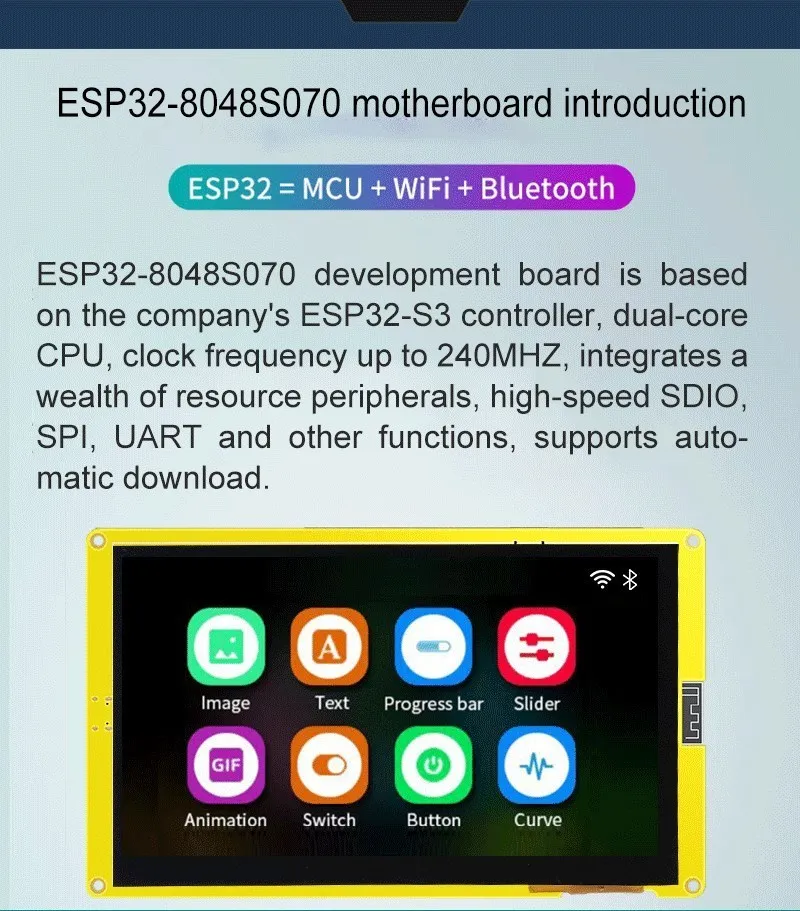

ESP32-S3 dual-core 32-bit CPU, up to 240 MHz
Built-in Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 BR/EDR + BLE
7-inch RGB TFT LCD display, 800 × 480 resolution with touch (capacitive version)
8 MB PSRAM and 16 MB Flash for graphics and data storage
Supports Arduino IDE, LVGL, FreeRTOS, and secondary development
USB Type-C interface for power and programming (supports auto-download)
TF card slot (up to 4 GB) for local data and image storage
Supports camera input (OV2640 / OV7670)
SmartConfig / AirKiss one-click Wi-Fi setup
Integrated PCB antenna (2 dBi gain)
Acrylic case included
Technical Specifications:
| Parameter | Description |
|---|
| CPU | ESP32-S3 Dual-Core 32-bit, up to 240 MHz |
| Memory | 520 KB SRAM + 8 MB PSRAM |
| Flash | 16 MB SPI Flash |
| Display | 7.0″ TFT LCD 800 × 480 RGB |
| Touch | Capacitive Touch (Optional) |
| Wi-Fi | 802.11 b/g/n/e/i |
| Bluetooth | 4.2 BR/EDR + BLE |
| Operating Voltage | 4.75 V – 5.25 V DC |

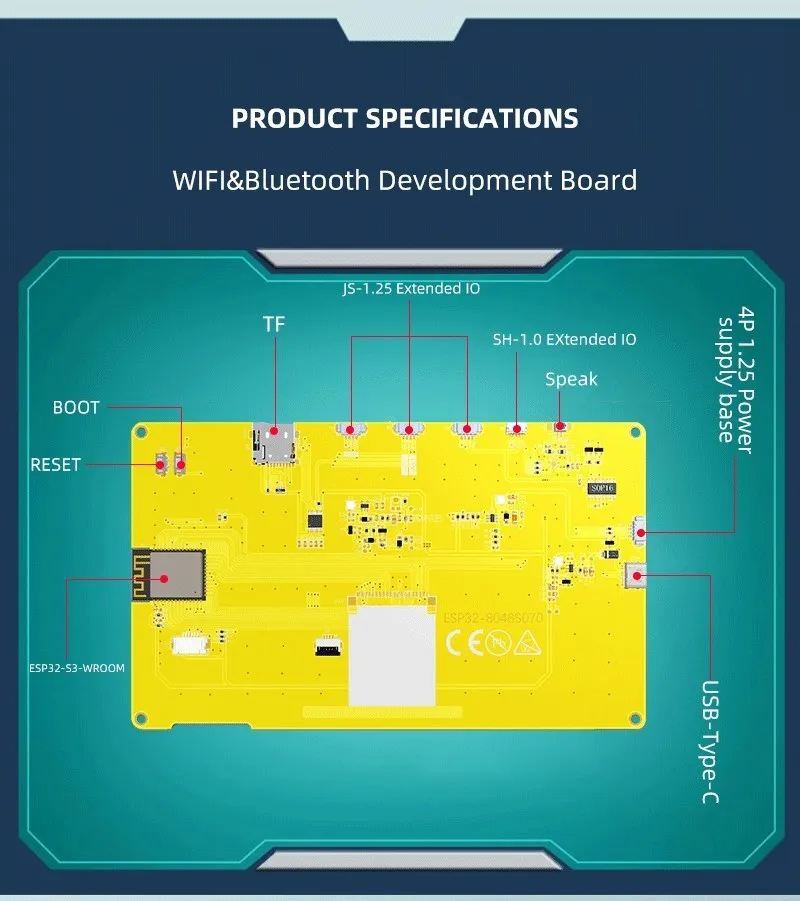

| Interfaces | UART, SPI, I2C, PWM, ADC, DAC, TF Card |
| Antenna | Onboard PCB Antenna (2 dBi) |
| Power Consumption | 180–310 mA @ 5 V (active), 6 mA (deep sleep) |
| Operating Temp | −20 °C to +70 °C |
| Storage Temp | −40 °C to +125 °C, < 90 % RH |
Applications:
Smart Home and IoT Dashboards
Industrial Automation Panels
Wireless Camera and Image Systems
Smart Agriculture Controllers
Robotics and Embedded Displays
Education and DIY Prototyping

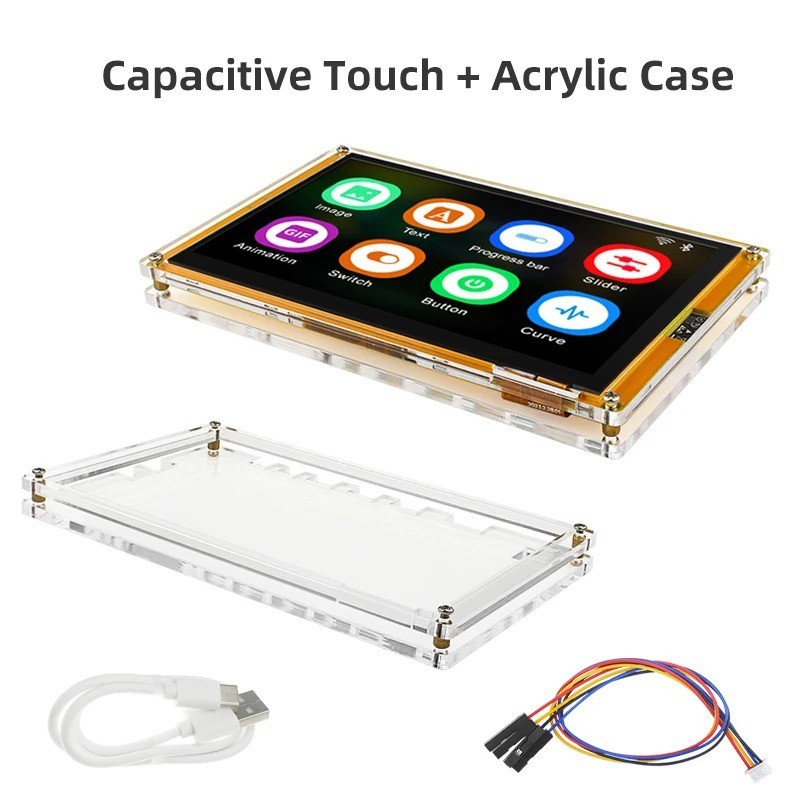

Package Includes:
1 × ESP32-S3 7″ Smart Display Module
1 × Capacitive Touch Screen
1 × Acrylic Protective Case
1 × USB Type-C Cable
1 × GPIO Connection Cable
Download Resources:
Official documentation, LVGL demos, firmware, drivers, and schematics can be downloaded here:
ESP32-8048S070 Official Resource Link
Why Choose This Display?
This 7-inch ESP32-S3 module provides exceptional performance, connectivity, and graphical capability for modern IoT applications. With LVGL support, a large touchscreen, and built-in Wi-Fi/Bluetooth, it’s the perfect solution for developers looking to create interactive, connected, and visually rich embedded systems.
Create stunning IoT interfaces and intelligent control panels effortlessly — download the demo pack and start building today with the ESP32-S3 7-Inch Smart Display!
