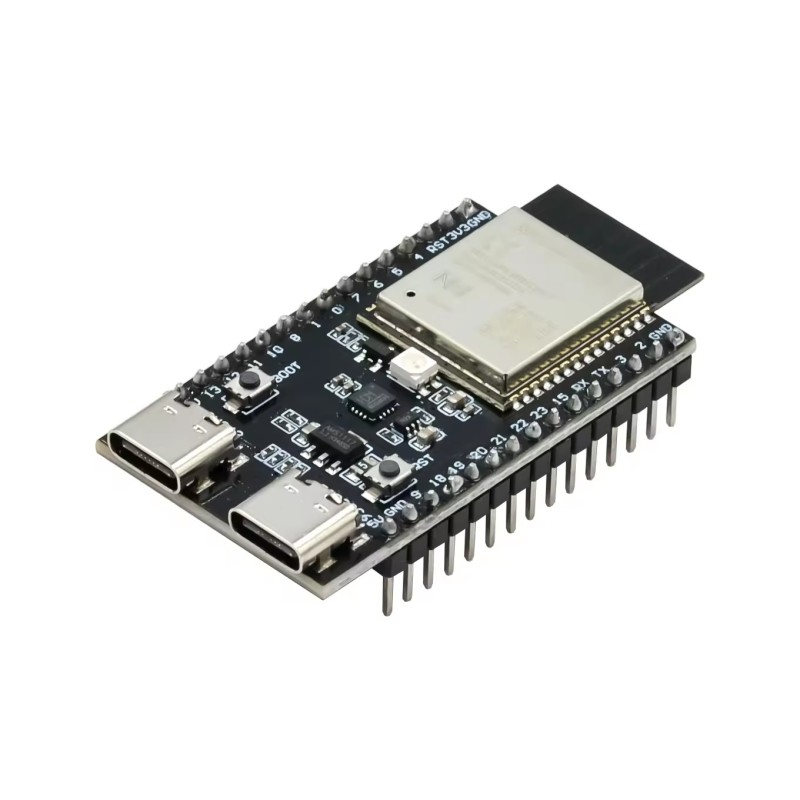

The ESP32-C6-N8 Development Board is a compact and powerful IoT development platform based on the ESP32-C6 chip. It integrates Wi-Fi 6 (802.11ax), Bluetooth LE, and Zigbee/Thread (802.15.4) in a single SoC, making it ideal for next-generation smart home, industrial IoT, and low-power wireless applications.
The ESP32-C6-N8 Development Board is a compact and powerful IoT development platform based on the ESP32-C6 chip. It integrates Wi-Fi 6 (802.11ax), Bluetooth LE, and Zigbee/Thread (802.15.4) in a single SoC, making it ideal for next-generation smart home, industrial IoT, and low-power wireless applications.
Designed for rapid prototyping and development, the board features USB Type-C, onboard USB-to-UART, RGB LED, and BOOT / RESET buttons, allowing easy flashing, debugging, and testing.
ESP32-C6 Core
RISC-V 32-bit single-core processor
Up to 160 MHz CPU frequency
Wireless Connectivity
Wi-Fi 6 (2.4 GHz) for higher efficiency and lower latency
Bluetooth Low Energy (BLE)
Zigbee / Thread (802.15.4) support
Memory
8MB Flash (N8 variant)
512KB SRAM
USB Type-C Interface
Native USB for programming and debugging
Onboard USB-to-TTL (CH343P or equivalent)
Onboard Peripherals
Full-color RGB LED
BOOT button for download mode
RESET button
Development Friendly
Compatible with Windows and Linux
Supports ESP-IDF and Arduino development environments
Product Name: ESP32-C6-N8 Development Board
Module: ESP32-C6-1
CPU Frequency: Up to 160 MHz
SRAM: 512KB
Flash Memory: 8MB
USB Interface: Type-C
Operating Voltage: 3.3V
Wireless Standards: Wi-Fi 6, BLE, Zigbee / Thread
Dimensions: Approx. 46.2 mm × 28 mm (reference)
Smart home devices (Matter / Thread / Zigbee nodes)
IoT gateways and sensors
Wi-Fi 6 low-power connected products
Home automation, industrial monitoring
Learning, education, and rapid prototyping
The ESP32-C6-N8 Development Board combines modern wireless standards with a developer-friendly design, making it an excellent choice for building secure, efficient, and future-ready IoT solutions.
