    YwRobot ESP32 Development Board Pro WiFi & Bluetooth with Extended IO Robotics Bangladesh
    • YwRobot ESP32 Development Board Pro WiFi & Bluetooth with Extended IO Robotics Bangladesh
    • YwRobot ESP32 Development Board Pro WiFi & Bluetooth with Extended IO Robotics Bangladesh
    • YwRobot ESP32 Development Board Pro WiFi & Bluetooth with Extended IO Robotics Bangladesh

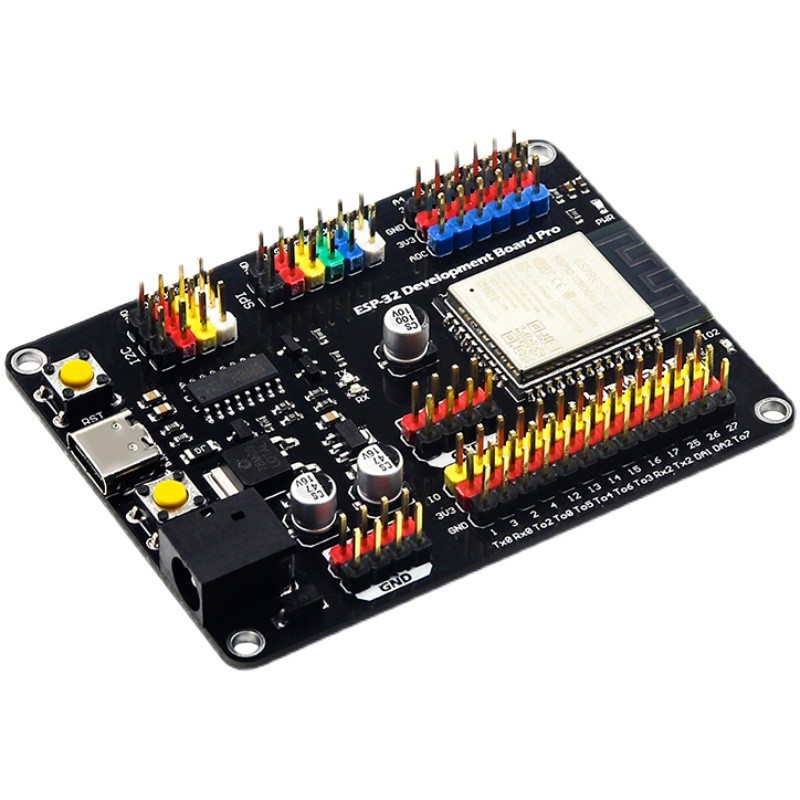

    YwRobot ESP32 Development Board Pro WiFi & Bluetooth with Extended IO

    RBD-3740

    The ESP32 Development Board Pro by YwRobot is a feature-rich and stable development platform based on the ESP32-WROOM-32D module. Designed for makers, students, and professionals, it provides extended IO expansion, reliable power management, and supports multiple programming environments such as Arduino IDE, ESP-IDF, and MicroPython.

    BDT 2,650
    BDT 2,650 BDT 2,650 BDT 2,650 BDT 2,650
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 2,650 Tax excluded
    BDT 2,650 Tax included
    BDT 0 Tax
    BDT 2,650 Tax excluded
    BDT 0 Tax
    BDT 2,650 Tax included
    Quantity
    4 Items

    1 person has purchased this item
    Only 4 items left in stock
    Description

    The ESP32 Development Board Pro by YwRobot is a feature-rich and stable development platform based on the ESP32-WROOM-32D module. Designed for makers, students, and professionals, it provides extended IO expansion, reliable power management, and supports multiple programming environments such as Arduino IDE, ESP-IDF, and MicroPython.

    This board supports both WiFi (802.11 b/g/n) and Bluetooth 4.2 BR/EDR & BLE, making it an excellent choice for IoT, robotics, and AI projects. With multiple power input options, automatic download circuitry, and Type-C USB interface, it ensures a smooth and stable development experience.

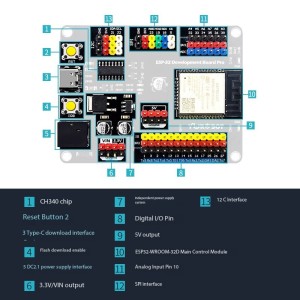

    Features

    • Built-in ESP32-WROOM-32D module for high stability and performance

    • 32-bit dual-core processor with WiFi + Bluetooth communication

    • Extended IO design with color-coded headers for easy sensor/actuator connections

    • Independent voltage regulator chip, supports 6.5V–12V DC input

    • Multiple power filtering designs for stable operation

    • Supports IDE compilers for quick program migration

    • Onboard automatic download circuit (no need for manual bootloader entry)

    • Supports Arduino IDE, ESP-IDF, and MicroPython

    Specifications

    • Model: ESP32 Development Board Pro

    • Main Module: ESP32-WROOM-32D

    • Processor: 32-bit dual-core, 80MHz system clock

    • Flash Memory: 32Mbit (4MB) external Flash

    • USB Interface: Type-C (CH340 USB chip)

    • Default Baud Rate: 115200bps

    • WiFi: IEEE 802.11 b/g/n standard

    • Bluetooth: Bluetooth 4.2 BR/EDR & BLE standard

    • Antenna: Onboard PCB antenna

    • Operating Temperature: -10°C to +70°C

    • Board Size: 71 × 53 mm

    • Mounting Hole: 3mm, Pitch: 2600 × 1900mil (66.04 × 48.26 mm)

    • Weight: 25.8g

    • IO Current: 6mA

    Power Supply

    • USB Type-C Input: 5V

    • DC Input: 6.5V–12V (recommended 7–9V <1000mA)

    • Output Voltages:

      • 5V (<800mA DC supply)

      • 3.3V (<500mA DC supply)

    Supported Interfaces

    • UART

    • SPI

    • SDIO

    • I2C

    • PWM

    • I2S

    • IR

    • ADC / DAC

    • Touch sensors

    • RTC

    Package Includes

    • 1 × YwRobot ESP32 Development Board Pro

    Product Details
    RBD-3740
    4 Items

    Specific References

    EAN13
    3740
