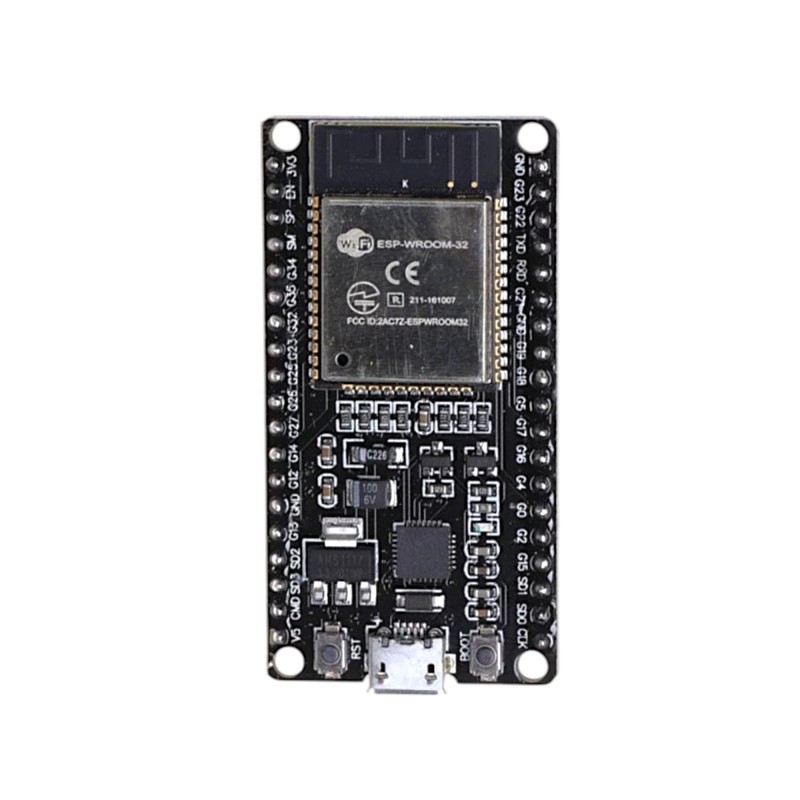

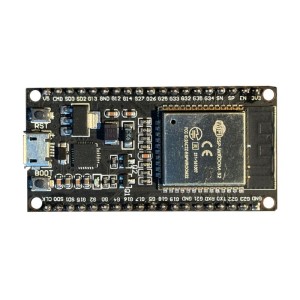

ESP-WROOM-32 ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi + Bluetooth Dual Cores Microcontroller. The ESP32 is integrated with Antenna switches, RF Balun, power amplifiers, low-noise amplifiers, filters, and management modules, and the entire solution occupies the least area of PCB. 2.4 GHz Wi-Fi plus Bluetooth dual-mode chip, with TSMC Ultra-low power consumption 40nm technology, power dissipation performance, and RF performance is the best, safe and reliable, easy to extend to a variety of applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- High performance-price ratio
- Small volume, easily embedded to other products
- Strong function with support LWIP protocol, Freertos
- Supporting three modes: AP, STA, and AP+STA
- Supporting Lua program, easily to develop
Specification:
- 2.4GHz Dual-Mode WiFi + Bluetooth Development Board, 38PIN
- Ultra-Low power consumption works perfectly with the IDE
- Support LWIP protocol, Freertos
- SupportThree Modes: AP, STA, and AP+STA
- ESP 32 is safe, reliable, and scalable to a variety of applications
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Processor | Dual-core 32-bit processor, operating at a frequency of 80, 160 or 240 MHz |
| RAM | 520 KB |
| Flash memory | 448 KB |
| Power Supply | 2.2-3.6 V |
| ADC 12-bit | 18 |
| DAC 8-bit | 2 |
| Temperature sensor | Built in |
| SPI | 4 |
| I2S | 2 |
| I2C | 2 |
| UART | 3 |
| Ethernet controller | Yes |
| CAN | 2.0 |
| Hall Sensor | Built in |
| Shipment Weight | 0.091 kg |
| Shipment Dimensions | 10 × 7 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Installation:
- 1. Download the Arduino IDE
- Install Git from the site
- Run Git GUI
- Select Clone Existing Repository
- In the Source Location write https://github.com/espressif/arduino-esp32.git
- In the Target Directory write C:/Users / [USERNAME]/Documents/Arduino/hardware/espressif / esp32
- Click Clone
- Open the directory C:/Users / [USERNAME]/Documents/Arduino/hardware/espressif/esp32 / tools and run the file get.exe
- Connect our Board
- If the drivers themselves are not installed, then install the driver for CP210x (I had CP2102) from here
- Run the Arduino IDE
- Select the cost in the Tools > Board (Tools > Board) (I DOIT ESP32 DEVKIT V1)
- Select the COM port to which the Board is installed
- How to identify a port?
- Open device Manager
- Open the group "Ports (COM & LPT)"
- Look the name of the device. There must be something like that among them Meet ESP32, part 1: installing the Arduino IDE ESP32, arduino, instruction, first run, dinobot COM7 - this is our port.
- Select any example (for example, here)
- Load by pressing Ctrl + U
- Some instructions say that you need to press the BOOT button on the Board during boot. (Check)
Package Includes:
1 x ESP32 38Pin Development Board.
