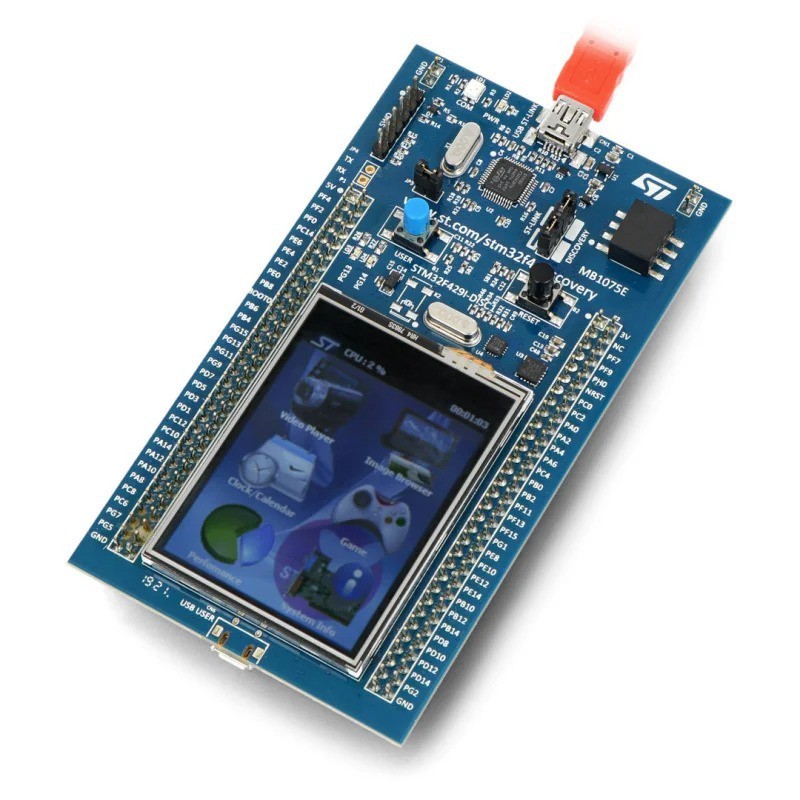

    Discovery Kit STM32F429I-DISC1 with 2.4" screen
    • Discovery Kit STM32F429I-DISC1 with 2.4" screen
    • Discovery Kit STM32F429I-DISC1 with 2.
    • Discovery Kit STM32F429I-DISC1 with 2.

    Discovery Kit STM32F429I-DISC1 with 2.4" screen

    RBD-1531

    • The commissioning kit is based on the board STM32f429zit6 (180 MHz, 2 MB of Flash memory, 256 KB RAM, Cortex-M4F ARM). On-Board is also 3-axis gyroscope, touchscreen LCD 2.4" QVGA TFT and programmer / debugger ST-LINK/V2-B.

    BDT 8,450
    BDT 8,450 BDT 8,450 BDT 8,450 BDT 8,450
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 8,450 Tax excluded
    BDT 8,450 Tax included
    BDT 0 Tax
    BDT 8,450 Tax excluded
    BDT 0 Tax
    BDT 8,450 Tax included
    Quantity
    In-Stock
    7 Items

    10 people have purchased this item
    7 items in stock
    Description

    The 32F429IDISCOVERY Discovery kit leverages the capabilities of the STM32F429 high-performance microcontrollers, to allow users to develop rich applications easily with advanced graphic user interfaces. The STM32F429 Discovery kit (32F429IDISCOVERY) allows users to easily develop applications with the STM32F429 high-performance MCUs with ARM®Cortex®-M4 core. RoboticsBD

    It includes an ST-LINK/V2-B embedded debug tool, a 2.4" QVGA TFT LCD, an external 64-Mbit SDRAM, an ST MEMS gyroscope, a USB OTG micro-AB connector, LEDs and push-buttons. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
    2. On-board ST-LINK/V2-B
    3. mbed™ -enabled (mbed.org)
    4. USB functions: debug port, virtual COM port, mass storage
    5. Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
    6. 2.4" QVGA TFT LCD
    7. 64-Mbit SDRAM
    8. L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
    9. Six LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3.3 V power-on, Two user LEDs: LD3 (green), LD4 (red), Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
    10. Two push-buttons (user and reset)
    11. USB OTG with micro-AB connector
    12. Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
    13. Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Flash memory2 Mbytes
    RAM256 Kbytes
    LCD2.4" QVGA TFT
    SDRAM64-Mbit
    GyroscopeL3GD20, ST MEMS motion sensor 3-axis digital output
    LEDs6
    Push Button2
    Package SoftwareSTM32CubeF4 package or STSW-STM32138
    Shipment Weight0.055 kg
    Shipment Dimensions12 × 7 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Discovery kit with STM32F429ZI MCU

    Package Includes:

    1 x Discovery Kit STM32F429I-DISC1 with 2.4" screen

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Specification

    • The microcontroller STM32F429ZIT6:
      • Core: Cortex M4F
      • Clock Frequency 180 MHz
      • ADC converter 12-bit
      • DAC converter
      • 2 MB of Flash
      • 256 KB of RAM
    • The debugger ST-LINK/V2-B is located on the board with the possibility to work as a separate device with the SWD output
    • The system is running on USB or with external power supply: 5 V / 3.3 V
    • On board are also:
      • 3-axis gyroscpe
      • Touch screen 2.4" QVGA TFT LCD
      • Six LEDs
        (two at user's disposal)
      • Two buttons (user's and reset)
      • Micro-AB USB connector
      • Goldpin leads for I/O ports
    • Board sizes (with goldpin connectors): 120 x 65 x 15 mm



    A detailed description and sample programs are onthe website of the manufacturer.

    Moduł posiada dotykowy wyświetlacz 2,4".

    After connectingthe mini-USB cable, menu appears on the display, installed by the manufacturer.

    Description

    The module allows to implement projects based on the popular 32-bit microcontroller from family STM32. Thanks to Discovery, the user can discover the opportunities offered by the latest ARM Cortex M4F with hardware floating point unit. Creating software is facilitated by libraries and many examples are available on the websiteof the company ST. In addition, the board has an gyroscope, i.e. (including the earth acceleration) and the LCD display 2.4" QVGA TFT.




    To program the system, sufficient isthe miniUSB cableand programming environment. Installation of systems will be allowed by breadboard and connecting wires.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1531
    7 Items

    Specific References

    EAN13
    1531
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    ESP32-C3 RGB LED Ring Development Board WS2812B Circular Smart Light Board Robotics Bangladesh ESP32-C3 RGB LED Ring Development Board WS2812B Circular Smart Light Board Robotics Bangladesh

    Reference: RBD-3950

    ESP32-C3 RGB LED Ring Development Board WS2812B Circular Smart Light Board

    (0)
    The ESP32-C3 RGB LED Ring Development Board is a powerful and visually striking smart lighting module that combines the versatility of the ESP32-C3 WiFi + Bluetooth microcontroller with the brilliance of 24 WS2812B RGB LEDs. It’s perfect for projects involving ambient lighting, interactive displays, PC case mods, and IoT lighting control.
    BDT 1,390
    BDT 1,390 tax incl.
    BDT 1,390 tax excl.
    BDT 1,390 tax excl.
    BDT 1,390 tax incl.
    BDT 1,390 tax incl.
    BDT 0 Tax
    BDT 1,390 tax excl.
    BDT 1,390 tax excl.
    BDT 0 Tax
    BDT 1,390 tax incl.
    More ESP32-C3 RGB LED Ring Development Board WS2812B Circular Smart Light Board
    In stock
    In stock: 8
    Sold-out Tuya 7in1 WiFi Air Quality Monitor - Laser PM2. Tuya 7in1 WiFi Air Quality Monitor - Laser PM2.

    Reference: RBD-2946

    Tuya 7in1 WiFi Air Quality Monitor - Laser PM2.5, CO2, TVOC, HCHO, AQI

    (0)
    Simultaneous monitoring of PM2.5, CO2, TVOC, HCHO, AQI, temperature, and humidity. 2.8-inch TFT color display for clear detection data. Connects to Tuya App for real-time monitoring and historical data analysis. Portable size for easy desk placement and portability. Equipped with high-precision VOC sensors and low power consumption. PM2.5 Sensor: This...
    BDT 7,845
    BDT 7,845 tax incl.
    BDT 7,845 tax excl.
    BDT 7,845 tax excl.
    BDT 7,845 tax incl.
    BDT 7,845 tax incl.
    BDT 0 Tax
    BDT 7,845 tax excl.
    BDT 7,845 tax excl.
    BDT 0 Tax
    BDT 7,845 tax incl.
    More Tuya 7in1 WiFi Air Quality Monitor - Laser PM2.5, CO2, TVOC, HCHO, AQI
    Sold-out
    In stock: 0
    DFrobot ESP32-S3 AI Camera Module Edge Image Recognition Night Vision ChatGPT Voice Interaction Robotics Bangladesh DFrobot ESP32-S3 AI Camera Module Edge Image Recognition Night Vision ChatGPT Voice Interaction Robotics Bangladesh

    Reference: RBD-3632

    Brand: DFRobot

    DFrobot ESP32-S3 AI Camera Module Edge Image Recognition Night Vision ChatGPT Voice Interaction

    (0)
    An intelligent camera module featuring advanced AI, voice interaction, and night vision capabilities. Ideal for IoT applications like surveillance and smart assistants.
    BDT 4,280
    BDT 4,280 tax incl.
    BDT 4,280 tax excl.
    BDT 4,280 tax excl.
    BDT 4,280 tax incl.
    BDT 4,280 tax incl.
    BDT 0 Tax
    BDT 4,280 tax excl.
    BDT 4,280 tax excl.
    BDT 0 Tax
    BDT 4,280 tax incl.
    More DFrobot ESP32-S3 AI Camera Module Edge Image Recognition Night Vision ChatGPT Voice Interaction
    In stock
    In stock: 6
    S2 Mini V1.0.0 ESP32-S2 4MB FLASH 2MB PSRAM WIFI Development Board Robotics Bangladesh S2 Mini V1.0.0 ESP32-S2 4MB FLASH 2MB PSRAM WIFI Development Board Robotics Bangladesh

    Reference: RBD-2131

    S2 Mini V1.0.0 ESP32-S2 4MB FLASH 2MB PSRAM WIFI Development Board

    (0)
    ESP32-S2 based WIFI development board Features S2FN4R2 WIFI IC Equipped with 4MB FLASH and 2MB PSRAM Type-C USB connectivity 27 digital input/output pins with support for interrupt/pwm/I2C/single wire ADC, DAC, I2C, SPI, UART, USB OTG
    BDT 690
    BDT 690 tax incl.
    BDT 690 tax excl.
    BDT 690 tax excl.
    BDT 690 tax incl.
    BDT 690 tax incl.
    BDT 0 Tax
    BDT 690 tax excl.
    BDT 690 tax excl.
    BDT 0 Tax
    BDT 690 tax incl.
    More S2 Mini V1.0.0 ESP32-S2 4MB FLASH 2MB PSRAM WIFI Development Board
    In stock
    In stock: 21
    ESP32 WROOM-32U CP2102 Development Board Micro USB Robotics Bangladesh

    Reference: RBD-3597

    ESP32 WROOM-32U CP2102 Development Board Micro USB

    (0)
    The ESP32-WROOM-32U Development Board with Micro USB is a versatile, compact solution ideal for developers looking to leverage the full power of the ESP32 in a breadboard-friendly format. With a CP2102 USB-to-Serial chip and support for external antennas via the U.FL connector, this board is well-suited for wireless communication, IoT projects, and remote...
    BDT 682
    BDT 682 tax incl.
    BDT 682 tax excl.
    BDT 682 tax excl.
    BDT 682 tax incl.
    BDT 682 tax incl.
    BDT 0 Tax
    BDT 682 tax excl.
    BDT 682 tax excl.
    BDT 0 Tax
    BDT 682 tax incl.
    More ESP32 WROOM-32U CP2102 Development Board Micro USB
    In stock
    In stock: 132

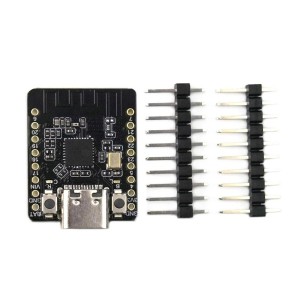

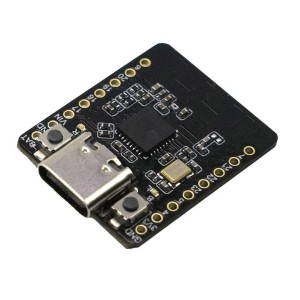

    Beetle ESP32 C6 Mini Development Board for Wireless Smart Wearable Device Supports BLE / Matter Robotics Bangladesh Beetle ESP32 C6 Mini Development Board for Wireless Smart Wearable Device Supports BLE / Matter Robotics Bangladesh

    Reference: RBD-3811

    Brand: DFRobot

    Beetle ESP32 C6 Mini Development Board for Wireless Smart Wearable Device Supports BLE / Matter

    (0)
    A compact IoT board with a RISC-V processor supports Wi-Fi 6, Bluetooth 5, Zigbee, and Thread, ideal for smart home applications and wearable devices.DFRobot SKU: DFR1117
    BDT 1,090
    BDT 1,090 tax incl.
    BDT 1,090 tax excl.
    BDT 1,090 tax excl.
    BDT 1,090 tax incl.
    BDT 1,090 tax incl.
    BDT 0 Tax
    BDT 1,090 tax excl.
    BDT 1,090 tax excl.
    BDT 0 Tax
    BDT 1,090 tax incl.
    More Beetle ESP32 C6 Mini Development Board for Wireless Smart Wearable Device Supports BLE / Matter
    In stock
    In stock: 4
    ESP8266 Serial WiFi Expansion Board Module for Arduino Robotics Bangladesh

    Reference: RBD-3682

    ESP8266 Serial WiFi Expansion Board Module for Arduino

    (0)
    32-bit RISC architecture The processor can operate at 80MHz / 160MHz 32MB flash memory 64kB for instructions 96kB for data Standard native WiFi 802.11b / g / n Operates in AP, Station or AP + Station mode
    BDT 510
    BDT 510 tax incl.
    BDT 510 tax excl.
    BDT 510 tax excl.
    BDT 510 tax incl.
    BDT 510 tax incl.
    BDT 0 Tax
    BDT 510 tax excl.
    BDT 510 tax excl.
    BDT 0 Tax
    BDT 510 tax incl.
    More ESP8266 Serial WiFi Expansion Board Module for Arduino
    In stock
    In stock: 20
    Sold-out Sonoff Basic R2- WiFi Wireless Smart Switch Robotics Bangladesh

    Reference: RBD-0814

    Brand: Sonoff

    Sonoff Basic R2- WiFi Wireless Smart Switch

    (0)
    The 2021 Model is Sonoff Basic R2 Support remotely turn on or off added devices. Support Max 8 timers tasks for each added device. Works with AMAZON ALEXA Works with GOOGLE ASSISTANT Also, Work with NEST Support numerous Wi-Fi smart switches one smartphone.
    BDT 739
    BDT 739 tax incl.
    BDT 739 tax excl.
    BDT 739 tax excl.
    BDT 739 tax incl.
    BDT 739 tax incl.
    BDT 0 Tax
    BDT 739 tax excl.
    BDT 739 tax excl.
    BDT 0 Tax
    BDT 739 tax incl.
    More Sonoff Basic R2- WiFi Wireless Smart Switch
    Sold-out
    In stock: 0
    LoraTap Tuya Smart ZigBee 3.0 Hub Wireless Multi Mode Mesh Gateway Robotics Bangladesh LoraTap Tuya Smart ZigBee 3.0 Hub Wireless Multi Mode Mesh Gateway Robotics Bangladesh

    Reference: RBD-1965

    LoraTap Tuya Smart ZigBee 3.0 Hub Wireless Multi Mode Mesh Gateway

    (0)
    LoraTap Tuya Smart ZigBee 3.0 Hub  Simple operation Easy to use Plug and play Using infrared sensor technology method Making your life more fashionable
    BDT 3,500
    BDT 3,500 tax incl.
    BDT 3,500 tax excl.
    BDT 3,500 tax excl.
    BDT 3,500 tax incl.
    BDT 3,500 tax incl.
    BDT 0 Tax
    BDT 3,500 tax excl.
    BDT 3,500 tax excl.
    BDT 0 Tax
    BDT 3,500 tax incl.
    More LoraTap Tuya Smart ZigBee 3.0 Hub Wireless Multi Mode Mesh Gateway
    In-Stock
    In stock: 4
    Wemos D1 Mini V3 Robotics Bangladesh Wemos D1 Mini V3 Robotics Bangladesh

    Reference: RBD-2651

    Wemos D1 Mini V3

    (0)
    Compact ESP8266 development board with 4MB Flash memory Built-in CH340 USB chipset for easy PC connectivity Compatible with Arduino IDE, NodeMCU, and MicroPython Operates at 3.3V logic, powered via USB 5V Features 11 digital I/O pins and 1 analog input pin (max 3.2V) Perfect for IoT, WiFi-enabled projects, and smart devices
    BDT 430
    BDT 430 tax incl.
    BDT 430 tax excl.
    BDT 430 tax excl.
    BDT 430 tax incl.
    BDT 430 tax incl.
    BDT 0 Tax
    BDT 430 tax excl.
    BDT 430 tax excl.
    BDT 0 Tax
    BDT 430 tax incl.
    More Wemos D1 Mini V3
    In-Stock
    In stock: 14

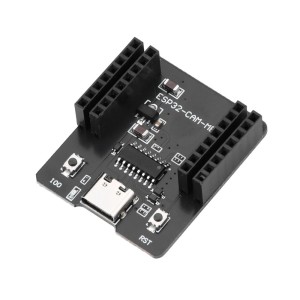

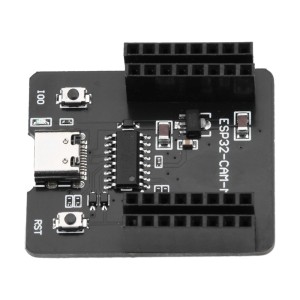

    ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM Development Board Robotics Bangladesh ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM Development Board Robotics Bangladesh
