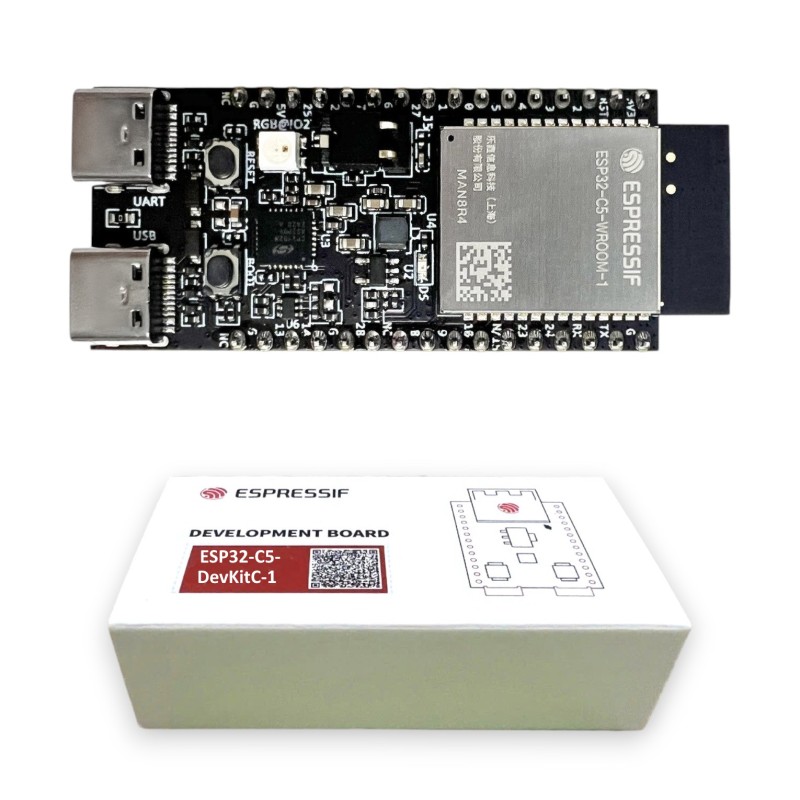

The Espressif ESP32-C5-DevKitC-1-N8R4 is an advanced dual-band Wi-Fi 6 development board designed for next-generation IoT applications. Built around the ESP32-C5-WROOM-1 module, it combines powerful wireless technologies including Wi-Fi 6 (2.4 GHz & 5 GHz), Bluetooth 5.0 LE, Zigbee 3.0, and Thread 1.3, making it a truly versatile connectivity platform. Its RISC-V CPU runs up to 240 MHz, complemented by a low-power 40 MHz core for energy-efficient tasks. With 8 MB of PSRAM and 4 MB of flash, developers have ample resources for complex projects. The board includes USB-C for power, programming, and debugging, along with headers that expose most I/O pins for breadboard prototyping. Supporting ESP-IDF v5.4 and later, this development kit is ideal for creating cutting-edge IoT, smart home, and industrial solutions. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Dual-band Wi-Fi 6 (802.11ax) with 2.4 & 5 GHz support for high-performance wireless connectivity.
Bluetooth 5.0 Low Energy (LE) for low-power communication.
Zigbee 3.0 & Thread 1.3 support for mesh networking and IoT integration.
RISC-V single-core CPU up to 240 MHz plus low-power 40 MHz core.
8 MB external PSRAM & 4 MB SPI flash memory for advanced applications.
USB-C interface for flashing, debugging, power, and communication.
Breadboard-compatible with 2 × 16-pin GPIO headers.
Includes boot & reset buttons, power LED, and J5 jumper for current measurement.
Compact design with onboard PCB trace antenna for strong wireless performance.
Backward-compatible with older Wi-Fi standards (802.11 a/b/g/n/ac).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Next-generation IoT devices requiring Wi-Fi 6 speed and efficiency.
Smart home automation with Zigbee, Thread, and Bluetooth integration.
Industrial monitoring and control systems with multi-protocol support.
Wireless sensor networks with energy-efficient connectivity.
Robotics and embedded systems requiring high bandwidth.
Educational projects for learning Wi-Fi 6, Zigbee, and RISC-V development.
Prototype development of connected consumer electronics.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Product Type | Development Board |
| Model | ESP32-C5-DevKitC-1-N8R4 |
| Module | ESP32-C5-WROOM-1-N8R4 |
| SoC | ESP32-C5 (RISC-V, 240 MHz + 40 MHz low-power core) |
| Wireless Connectivity | Wi-Fi 6 (2.4 & 5 GHz, 802.11ax), Bluetooth 5.0 LE, Zigbee 3.0, Thread 1.3 |
| Wi-Fi 6 Features | MU-MIMO, OFDMA (UL/DL), Target Wake Time (TWT), BSS Coloring |
| Memory | 384 KB SRAM, 320 KB ROM |
| External RAM | 8 MB PSRAM |
| Flash Memory | 4 MB SPI Flash |
| USB Ports | USB-C (12 Mbps full-speed), USB-UART (up to 3 Mbps) |
| GPIOs | 2 × 16-pin headers (SPI flash pins reserved) |
| Additional Features | Boot/reset buttons, power LED, J5 current measurement jumper |
| Antenna Type | PCB trace antenna |
| Performance | ~47 Mbps TCP / ~65 Mbps UDP (2.4 & 5 GHz) |
| Software Support | ESP-IDF v5.4 preview, v5.5+ full support |
| Shipment Weight | 0.0525 kg |
| Shipment Dimensions | 10 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Espressif 2.4 & 5 GHz Dual-Band Wi-Fi 6 ESP32-C5-DevKitC-1-N8R4
