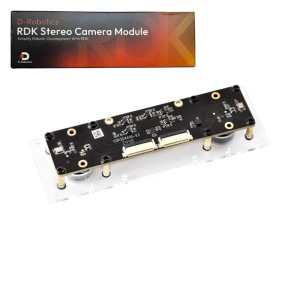

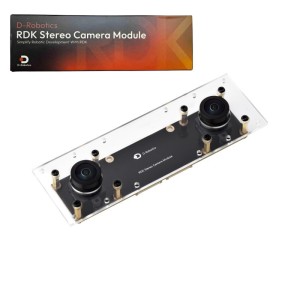

D-Robotics SC230AI Ultra-Wide Angle Binocular Depth Camera Module For RDK X5

Reference RBD-3677

D-Robotics SC230AI Ultra-Wide Angle Binocular Depth Camera Module For RDK X5, Dual 2MP Color Cameras, Stereo Vision, Depth Vision

SC230AI with SmartClarity-2
Dual 2MP, 178° FOV
Fast depth via BPU
For AI vision
RDK X5 compatible

Description
Product Details

Description

Features:

Adopts SC230AI chip with SmartSens SmartClarity-2 technology, it provides excellent day and night imaging effects (the IR fill light is required for night imaging, please purchase separately)
Onboard dual 2MP cameras with 178° ultra wide angle field of view
Combined with optimized algorithms and BPU acceleration to achieve efficient depth computation
Suitable for AI visual applications such as depth vision and stereo vision
Compatible with the RDK X5 development board
RESETB control :
low active : I2C address 0x30 / 0x32
EEORIN : 0x50
Synchronization : Hardware synchronization
Distortion : <-30°

Baseline length : 70mm

SC230AI Ultra-Wide Angle Binocular Depth Camera Module For RDK X5, Dual 2MP Color Cameras, Stereo Vision, Depth Vision

RDK binocular depth camera module

SC230AI | 2MP | Hardware Synchronization | 178° DFoV

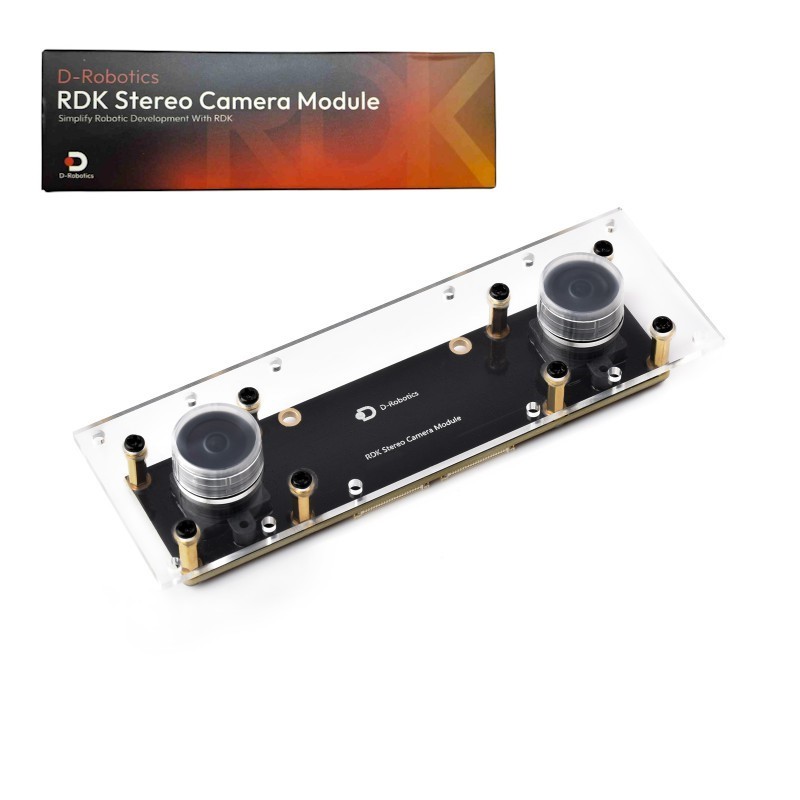

SC230AI binocular depth camera module, front view of camera

Features

The D-Robotics RDK Stereo Camera Module is a binocular depth camera specifically designed for the RDK X5, featuring two 2MP color cameras and dual 22PIN MIPI interface output. Through optimized binocular depth algorithm and BPU-based inference to enable efficient depth perception of the camera, and it supports algorithm result visualization via RViz2 on the PC

Adopts SC230AI chip with SmartSens SmartClarity-2 technology, it provides excellent day and night imaging effects (the IR fill light is required for night imaging, please purchase separately)
Onboard dual 2MP cameras with 178° ultra wide angle field of view
Combined with optimized algorithms and BPU acceleration to achieve efficient depth computation
Suitable for AI visual applications such as depth vision and stereo vision
Compatible with the RDK X5 development board

Specifications

Pixels		2MP
sensor chip		SC230AI
Camera	sensor size	1/2.8 inch
	Aperture (F)	2.2
	Resolution	1920 × 1080 (per camera)
	Focal length (BFL)	2.28 mm
	Field of View (FOV)	178°(D) 150°(H) 80°(V)
	Distortion	<-30°
	Baseline length	70mm
RESETB control		low active
I2C address		0x30 / 0x32
EEORIN		0x50
Synchronization		Hardware synchronization
Application scenarios		Suitable for AI visual applications such as deep vision and stereo vision

Connection example

* for reference only, the RDK X5 is NOT included.

Outline dimensions

Resources & Services

Wiki: https://developer.d-robotics.cc/rdk_doc/en/Robot_development/boxs/function/hobot_stereonet

Product Details

Reference RBD-3677

In stock 4 Items
