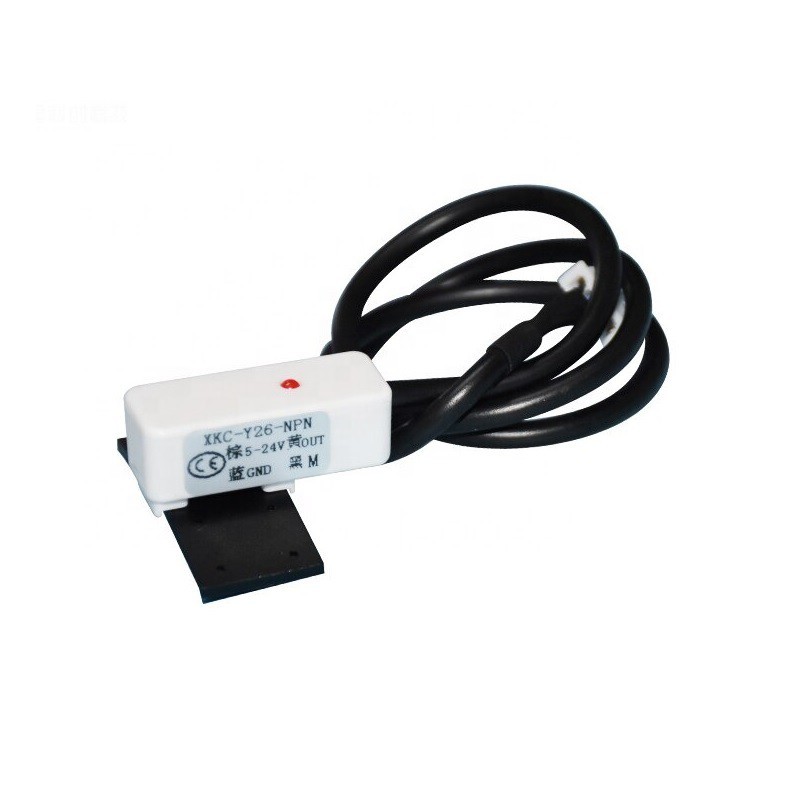

XKC-Y26 NPN 24V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor

Reference RBD-2960

Non-contact liquid level sensor for non-metallic airtight containers
24V NPN output for industrial automation and controller integration
Detects toxic, acidic, alkaline, and high-pressure liquids safely
High stability & sensitivity, unaffected by container wall thickness
Fast 500ms response time with low 5mA power consumption
Durable ABS housing, IP65 waterproof for reliable long-term use

Description
Product Details

Description

The XKC-Y26 NPN 24V Intelligent Non-Contact Liquid Level Sensor provides accurate, reliable, and hygienic monitoring of liquid levels without requiring direct contact. Designed for airtight, non-metallic containers, it uses advanced signal processing technology and a high-speed chip to ensure stable operation even with varying wall thickness, scale, or impurities. Powered by 24V DC, it features an NPN output with up to 100mA drive capability, making it ideal for industrial systems. With IP65 waterproof protection and ABS housing, this sensor is perfect for toxic liquids, acids, alkalis, and high-pressure applications, widely used in sewage treatment, water towers, aquariums, irrigation, and smart appliances. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Non-contact Detection – Works externally on non-metallic containers without touching the liquid.
Industrial-Grade 24V Input – Compatible with most industrial automation systems.
NPN Output – Supports 1–100mA for easy PLC/controller integration.
Fast Response – 500ms response time for quick level detection.
Safe for Harsh Liquids – Detects acids, alkalis, toxic, and sealed high-pressure liquids.
High Sensitivity & Stability – Consistent results unaffected by wall thickness or buildup.
Waterproof & Durable – ABS body with IP65 protection for long service life.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Water Towers & Tanks – Automated water level monitoring.
Sewage Treatment – Reliable detection in harsh and corrosive environments.
Agricultural Irrigation & Drones – Non-contact sensing for lightweight setups.
Medical Equipment – Hygienic and sterile liquid monitoring.
Aquariums & Smart Appliances – Maintenance-free water level detection.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	XKC-Y26 NPN
Input Voltage	24V DC
Current Consumption	≤5mA
Output Current	1–100mA
Output Type	NPN
Response Time	500ms
Material	ABS
Waterproof Rating	IP65
Detection Method	Non-contact, external mounting
Container Type	Non-metallic airtight containers
Features	High sensitivity, stable performance
Applications	Water, toxic liquids, acids, alkalis, sealed tanks
Shipment Weight	0.0205 kg
Shipment Dimensions	7 × 7 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Pin connections:

Brown wire- 24V
Blue wire – Ground
Yellow wire – Buzzer negative (Buzzer positive connected to Vcc)
Black wire – NC/NO

Package Includes:

1 x XKC-Y26 NPN 24V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor
