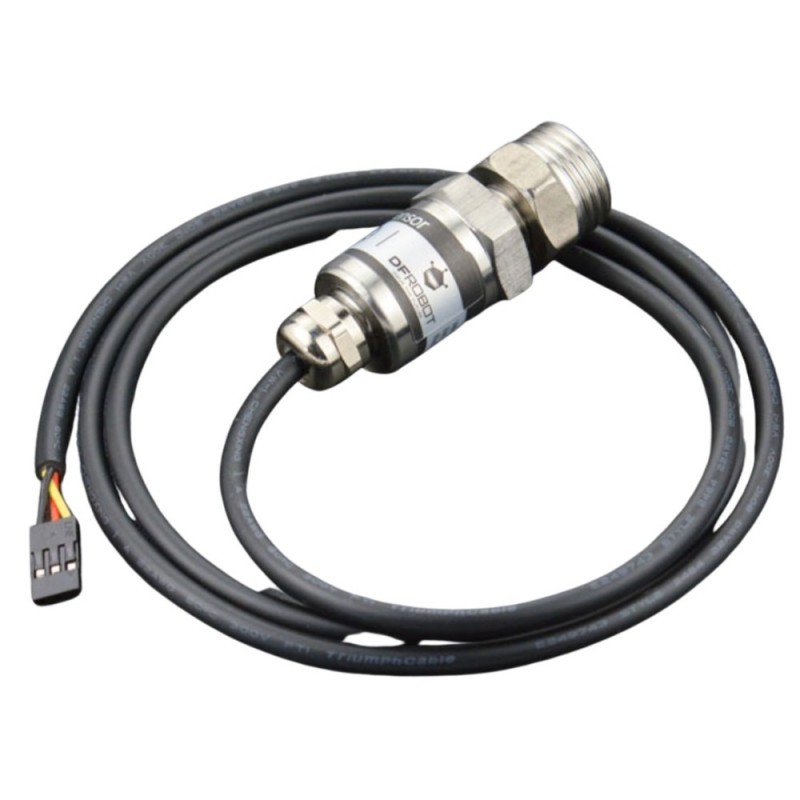

The Gravity: Analog Water Pressure Sensor is a reliable and accurate liquid pressure sensing module designed for smart systems and IoT applications. Featuring the DFRobot Gravity 3-pin interface, it supports a 5V input and linear 0.5–4.5V analog output, making it easy to integrate with Arduino and other microcontrollers. With a measurement range of 0–1.6MPa and a precision of 0.5%FS, this sensor can be applied to household water systems, smart farming, environmental monitoring, and industrial automation. Its IP68 waterproof rating ensures stable performance in harsh conditions, while the G1/4 threaded port (with G1/2 to G1/4 adapter included) allows simple installation in water pipelines and tanks. Designed with durability in mind, it withstands up to 3.0MPa pressure and supports over 10 million cycles of use. Whether for detecting water flow, tank levels, or system pressure, this sensor provides fast, reliable, and long-lasting performance. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Pressure Range – Measures 0 to 1.6MPa, suitable for residential and industrial systems.
Arduino-Compatible – Gravity 3-pin plug-and-play interface for easy integration.
High Accuracy – ±0.5%FS typical accuracy ensures reliable readings.
Durable & Long-Life – Rated for over 10 million operation cycles.
Waterproof Design – IP68-rated for indoor and outdoor environments.
Fast Response – Reaction time under 2ms for real-time monitoring.
Threaded Connector – G1/4 port with adapter for easy pipe installation.
Versatile Use – Ideal for water systems, farming, IoT devices, and tanks.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart Home Systems – Monitor household water pressure for safety and efficiency.
Agriculture & Farming – Manage irrigation and monitor farm water supply.
IoT Projects – Add water pressure sensing to smart city or connected devices.
Tank Monitoring – Detect pressure and liquid levels in tanks and reservoirs.
Environmental Monitoring – Measure water pressure in rivers, lakes, and marine systems.
Industrial Automation – Use in pipelines, pumps, and process monitoring systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | Gravity: Analog Water Pressure Sensor |
| Medium | Liquid/gas (non-corrosive) |
| Interface | Gravity 3-pin (Signal, VCC, GND) |
| Pressure Range | 0–1.6 MPa |
| Input Voltage | =+5V DC |
| Output Voltage | 0.5–4.5V (linear) |
| Accuracy | 0.5%–1% FS (0.5% @ 0–55°C) |
| Thread Size | G1/4 (Adapter G1/2 to G1/4 included) |
| Waterproof Level | IP68 |
| Operating Temperature | -20°C to +85°C |
| Response Time | <2 ms |
| Quiescent Current | 2.8 mA |
| Normal Operating Pressure | ≤2.0 MPa |
| Burst Pressure | ≥3.0 MPa |
| Service Life | 10,000,000 cycles |
| Cable Length | 1m |
| Shipment Weight | 0.030 kg |
| Shipment Dimensions | 6 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Connection Diagram(Arduino)
Documents
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Gravity: Analog Water Pressure Sensor
