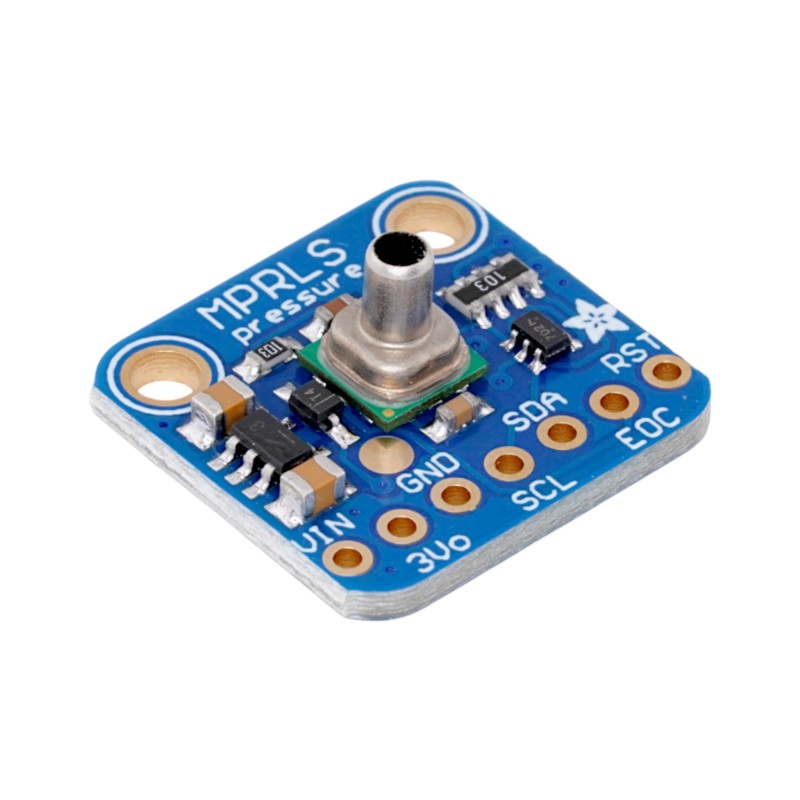

The MPRLS Ported Pressure Sensor Breakout is an absolute pressure measurement module designed for applications where pressure must be measured inside an enclosed space. Unlike standard barometric sensors, this module features a metal pressure port, allowing tubing to be attached directly for accurate air or gas pressure sensing.
The sensor integrates a factory-calibrated pressure sensing element with a high-resolution 24-bit ADC and temperature compensation. Communication is handled via an I2C interface, making it simple to integrate with microcontrollers and single-board computers.
This module is suitable for assistive devices, laboratory experiments, vacuum systems, and sealed container pressure monitoring.
Key Features
Absolute pressure measurement from 0 to 25 PSI
Integrated metal pressure port for tubing connection
24-bit ADC with factory calibration and compensation
I2C digital communication interface
Onboard 3.3V regulation and logic level shifting
Compatible with 3.3V and 5V systems
Compact breakout board design
Technical Specifications
| Parameter | Specification |
|---|
| Pressure Type | Absolute pressure |
| Measurement Range | 0 to 25 PSI |
| Resolution | 24-bit internal ADC |
| Communication Interface | I2C |
| I2C Address | 0x18 |
| Operating Voltage | 3.3V regulated, 5V logic tolerant |
| Pressure Port Material | Stainless steel |
| Port Dimensions | Approx. 3.7mm length, 2.5mm diameter |
| Sensor Type | Pre-calibrated, temperature compensated |
How to Use
Connect VCC and GND to the power supply.
Connect SDA and SCL to the I2C bus of the microcontroller.
Attach suitable flexible tubing to the metal pressure port.
Read pressure data via I2C using the provided register values.
Tubing is not included and must be selected based on the application.
Applications
Assistive technology such as sip and puff input devices
Vacuum chamber pressure monitoring
Sealed container pressure measurement
Laboratory and research experiments
Pneumatic and airflow testing
Industrial and educational projects
Package Includes
Why Choose This Module
This sensor is ideal when direct pressure sensing through tubing is required. With factory calibration, high resolution, and an easy I2C interface, it eliminates the complexity of analog pressure measurement while providing reliable and repeatable results.
Upgrade your pressure sensing project today with a compact, accurate, and easy-to-integrate ported pressure sensor module.
