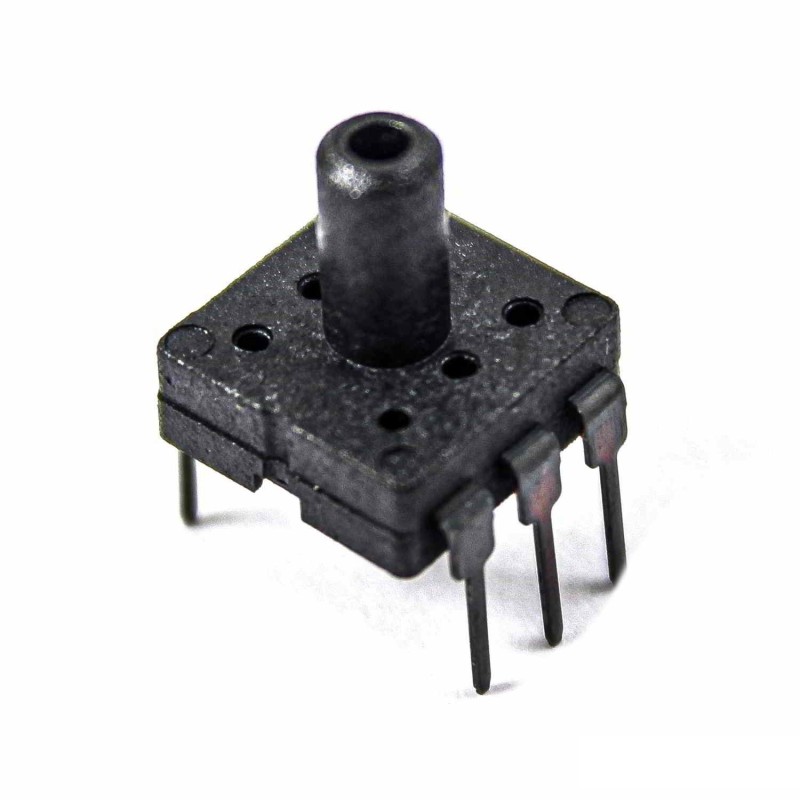

MPS20N0040D-D Sphygmomanometer Pressure Sensor

Reference RBD-3313

High-precision differential pressure sensor for medical, automotive, and industrial applications.
Measures up to 40KPa with stable analog voltage output and excellent linearity.
Operates on 5VDC or 1mA constant current, ensuring low power consumption.
Compact DIP-6 package for easy PCB mounting and integration.
Ideal for blood pressure monitors, air pressure sensing, and environmental monitoring.

Description
Product Details

Description

The MPS20N0040D-D Sphygmomanometer Pressure Sensor is a high-accuracy differential pressure transducer designed for applications that demand precision and reliability. With a measurement range of 0–40KPa, it delivers stable analog output suitable for both medical and industrial use. Operating at 5V DC or 1mA constant current, it offers low power consumption while maintaining excellent linearity (±0.3% F.S.) and low hysteresis (±0.7% F.S.). The sensor’s compact DIP-6 package allows for straightforward PCB mounting, making it a preferred choice for OEM applications such as blood pressure measurement devices, tire pressure monitoring systems, industrial process control, and environmental pressure sensing. Engineered for stability and high repeatability, the MPS20N0040D-D combines performance and affordability for precise pressure monitoring in diverse conditions. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High-Accuracy Differential Sensing: Measures up to 40KPa with exceptional precision.
Analog Output Signal: Provides consistent voltage response for easy ADC interfacing.
Low Power Operation: Consumes minimal current (1mA) at 5V input.
Excellent Linearity & Stability: ±0.3% F.S. linearity and ±0.7% F.S. hysteresis ensure accuracy.
Wide Temperature Range: Operates reliably from -40°C to 85°C.
Compact DIP-6 Package: Easy to integrate into embedded circuits and prototypes.
Versatile Compatibility: Works with Arduino, ESP32, and industrial microcontrollers.
Durable & Reliable: Designed for long-term use in critical monitoring applications.
OEM Friendly: Ideal for medical and automotive device manufacturing.
Environmentally Resilient: Withstands temperature and humidity fluctuations.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Medical Equipment: Used in sphygmomanometers (digital blood pressure monitors).
Automotive Systems: Tire pressure and manifold air pressure measurement.
Industrial Automation: Air pressure monitoring in pneumatic systems.
Environmental Monitoring: Detects atmospheric and barometric pressure variations.
IoT and Research Projects: Integrates with microcontrollers for real-time sensing.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	MPS20N0040D-D
Pressure Type	Differential
Measurement Range	0 – 40 KPa
Output Type	Analog
Input Voltage	5V DC
Input Current	1mA (constant)
Input Impedance	4KΩ – 6KΩ
Output Impedance	4KΩ – 6KΩ
Full-Scale Output Voltage	50mV – 100mV
Linearity	±0.3% F.S.
Hysteresis	±0.7% F.S.
Bridge Resistance	4KΩ – 6KΩ
Bias Temp. Coefficient	±0.08% of F.S./°C
Sensitivity Temp. Coefficient	-0.21% of F.S./°C
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +125°C
Package Type	DIP-6
Shipment Weight	0.008 kg
Shipment Dimensions	3 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

How to Use the MPS20N0040D-D Pressure Sensor

Step 1: Powering the Sensor

Supply 5V DC or a constant 1mA current to the sensor.

Step 2: Connecting to a Microcontroller (e.g., Arduino, Raspberry Pi)

Connect VCC to 5V power supply
Connect GND to ground
Connect Analog Output Pin to an ADC pin of your microcontroller

Step 3: Reading Pressure Data

Read the analog voltage output from the sensor using an ADC (Analog-to-Digital Converter)
Convert the voltage reading to pressure based on the sensor’s full-scale output range

Step 4: Calibrating the Sensor

Use known pressure values to calibrate the sensor and improve accuracy

Package Includes:

1 x MPS20N0040D-D Sphygmomanometer Pressure Sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-3313

In stock 88 Items

Specific References

EAN13: 3313

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-4122

BMP585 Ported I2C / SPI Temperature and Pressure Sensor – STEMMA QT / Qwiic Compatible

(0)

The BMP585 is a next-generation high-precision barometric pressure and temperature sensor from Bosch Sensortec, designed for accurate altitude and environmental measurements. It is an upgrade over earlier BMP series sensors (BMP280, BMP388, BMP390) and offers improved resolution, low noise performance, and fast conversion time.

BDT 3,900

BDT 3,900 tax incl.

BDT 3,900 tax excl.

BDT 3,900 tax incl.

BDT 0 Tax

BDT 3,900 tax excl.

BDT 0 Tax

BDT 3,900 tax incl.

Last items in stock

In stock: 1

- BDT 130 Reduced price

Reference: RBD-3263

BME280 I2C Pressure Humidity Temperature Sensor Module

(0)

High-precision BME280 I2C sensor measures temperature, humidity, and pressure. Supports 3.3V and 5V operation with built-in voltage regulator and logic level shifters. Measures temperature (-40°C to 85°C), humidity (0–100%), and pressure (300–1100hPa). Compact 4-pin I2C interface for easy integration with Arduino, ESP32, and Raspberry Pi. Provides...

BDT 420 BDT 550

BDT 550 BDT 420 tax incl.

BDT 550 BDT 420 tax excl.

BDT 550 BDT 420 tax incl.

BDT 0 BDT 0 Tax

BDT 550 BDT 420 tax excl.

BDT 0 BDT 0 Tax

BDT 550 BDT 420 tax incl.

In-Stock

In stock: 13

Reference: RBD-3294

BMP280-5V Temperature and Barometric Pressure Sensor

(0)

High-precision BMP280 sensor for temperature and barometric pressure measurement. Operates at 5V DC, compatible with common microcontrollers and 5V logic systems. Supports I2C and SPI interfaces for flexible communication options. Measures temperature from -40°C to +85°C with ±1°C accuracy. Compact, stable, and easy to integrate for weather, drone, and...

BDT 250

BDT 250 tax incl.

BDT 250 tax excl.

BDT 250 tax incl.

BDT 0 Tax

BDT 250 tax excl.

BDT 0 Tax

BDT 250 tax incl.

In-Stock

In stock: 22

Gravity Liquid Flow Sensor (G1/4) Robotics Bangladesh

Reference: RBD-3237

Brand: DFRobot

Gravity Liquid Flow Sensor (G1/4)

(0)

Gravity Liquid Flow Sensor (G1/4) based on electromagnetic principle for precise flow measurement. Wide operating voltage range of 3.5V–24V with NPN pulse output for easy microcontroller integration. Durable design with O-ring and silicone sealant for enhanced water resistance and reliability. Supports liquid types with high concentration and low...

BDT 3,750

BDT 3,750 tax incl.

BDT 3,750 tax excl.

BDT 3,750 tax incl.

BDT 0 Tax

BDT 3,750 tax excl.

BDT 0 Tax

BDT 3,750 tax incl.

Last items in stock

In stock: 1

Reference: RBD-4092

BME680 Temperature, Humidity, Pressure and VOC Sensor – STEMMA QT / Qwiic Compatible

(0)

The BME680 is a four-in-one environmental sensor that measures temperature, relative humidity, barometric pressure, and volatile organic compounds (VOC). It is designed for low-power operation and communicates over I2C, making it suitable for IoT devices, smart homes, weather stations, and portable environmental monitoring systems.

BDT 1,895

BDT 1,895 tax incl.

BDT 1,895 tax excl.

BDT 1,895 tax incl.

BDT 0 Tax

BDT 1,895 tax excl.

BDT 0 Tax

BDT 1,895 tax incl.

Last items in stock

In stock: 1

Reference: RBD-1854

Resistive Film Pressure Sensor Module Pin Header Analog Signal 200mm

(0)

This module is compatible with various microcontroller control boards, such as arduino series microcontrollers. The module contains 2 kinds of interfaces. The module comes with a 20cm wire, which is long enough for your use. It has a short response time and quick response.

BDT 450

BDT 450 tax incl.

BDT 450 tax excl.

BDT 450 tax incl.

BDT 0 Tax

BDT 450 tax excl.

BDT 0 Tax

BDT 450 tax incl.

In-Stock

In stock: 34

Reference: RBD-3299

MD-PS002 Vacuum Pressure Sensor Module

(0)

High-precision vacuum pressure sensor for industrial and automation applications. Measures pressure from vacuum (-100kPa) to +50kPa above atmospheric Operates at 5V DC or 1mA constant current for stable performance. Provides analog output for real-time monitoring with microcontrollers. Compact size (6.8×6.8×4.6mm) ideal for embedded designs. Perfect for...

BDT 350

BDT 350 tax incl.

BDT 350 tax excl.

BDT 350 tax incl.

BDT 0 Tax

BDT 350 tax excl.

BDT 0 Tax

BDT 350 tax incl.

In-Stock

In stock: 19

Reference: RBD-3519

MS5540-CM Digital Waterproof Air Pressure Height Sensor Module

(0)

The MS5540-CM is a compact and robust high-precision air pressure and height sensor designed for applications requiring accurate barometric measurements in rugged or waterproof environments. This 16-bit digital altimeter module combines a precision piezoresistive pressure sensor and an analog-to-digital converter (ADC) in a single SMD hybrid package,...

BDT 2,150

BDT 2,150 tax incl.

BDT 2,150 tax excl.

BDT 2,150 tax incl.

BDT 0 Tax

BDT 2,150 tax excl.

BDT 0 Tax

BDT 2,150 tax incl.

In stock

In stock: 13

Reference: RBD-2980

YFS403 5-18V Water Flow Sensor Flowmeter G3/4 1- 30L/Min

(0)

YFS403 water flow sensor with 1–30 L/min measurement range Wide voltage support (5–18V DC) with Hall effect pulse output G3/4” threaded inlet/outlet for direct plumbing integration Durable stainless-steel impeller shaft for long-lasting performance Reliable sealing structure prevents leaks under pressure Ideal for water heaters, vending machines,...

BDT 1,080

BDT 1,080 tax incl.

BDT 1,080 tax excl.

BDT 1,080 tax incl.

BDT 0 Tax

BDT 1,080 tax excl.

BDT 0 Tax

BDT 1,080 tax incl.

In-Stock

In stock: 9

Reference: RBD-2965

5MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

(0)

Stainless steel pressure transducer with G1/4" threaded interface Pressure range up to 5MPa, ideal for high-pressure monitoring High accuracy (±1.5%FS) with <2ms response time Output: 0.5–4.5VDC @ 5V input, low power <10mA consumption IP65-rated waterproof & surge-protected stainless steel body Suitable for oil, gas, hydraulic, and industrial...

BDT 4,790

BDT 4,790 tax incl.

BDT 4,790 tax excl.

BDT 4,790 tax incl.

BDT 0 Tax

BDT 4,790 tax excl.

BDT 0 Tax

BDT 4,790 tax incl.

In-Stock

In stock: 10

Reference: RBD-4108

BMP580 Precision Temperature and Pressure Sensor – STEMMA QT / Qwiic Compatible

(0)

The BMP580 is a next-generation digital temperature and barometric pressure sensor from Bosch. It supports both I2C and SPI communication and provides high-resolution pressure data suitable for altitude estimation, environmental monitoring, and embedded sensing applications.

BDT 2,090

BDT 2,090 tax incl.

BDT 2,090 tax excl.

BDT 2,090 tax incl.

BDT 0 Tax

BDT 2,090 tax excl.

BDT 0 Tax

BDT 2,090 tax incl.

Last items in stock

In stock: 1

Fermion BME680 Environmental Sensor Robotics Bangladesh

Reference: RBD-3944

Brand: DFRobot

Fermion BME680 Environmental Sensor

(0)

The BME680 is a compact, low-power 4-in-1 environmental sensor for VOCs, temperature, humidity, and pressure, ideal for air quality monitoring in IoT applications.

BDT 3,150

BDT 3,150 tax incl.

BDT 3,150 tax excl.

BDT 3,150 tax incl.

BDT 0 Tax

BDT 3,150 tax excl.

BDT 0 Tax

BDT 3,150 tax incl.

In stock

In stock: 4

Reference: RBD-3863

MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor Module

(0)

Supply voltage range from 4.75VDC to 5.25VDC. Temperature compensated over -40°C to 125°C. Pressure range from 0KPa to 10KPa. The sensitivity of 450mV/kPa.

BDT 2,650

BDT 2,650 tax incl.

BDT 2,650 tax excl.

BDT 2,650 tax incl.

BDT 0 Tax

BDT 2,650 tax excl.

BDT 0 Tax

BDT 2,650 tax incl.

Last items in stock

In stock: 1

Reference: RBD-4124

MPRLS Ported Pressure Sensor Breakout – 0 to 25 PSI I2C

(0)

The MPRLS Ported Pressure Sensor Breakout is an absolute pressure measurement module designed for applications where pressure must be measured inside an enclosed space. Unlike standard barometric sensors, this module features a metal pressure port, allowing tubing to be attached directly for accurate air or gas pressure sensing.

BDT 6,990

BDT 6,990 tax incl.

BDT 6,990 tax excl.

BDT 6,990 tax incl.

BDT 0 Tax

BDT 6,990 tax excl.

BDT 0 Tax

BDT 6,990 tax incl.

Last items in stock

In stock: 1

BMP390 High Precision Barometric Pressure Sensor, Barometric Pressure / Altitude / Temperature Measuring Robotics Bangladesh

Reference: RBD-4013

Brand: Waveshare

BMP390 High Precision Barometric Pressure Sensor, Barometric Pressure / Altitude / Temperature Measuring

(0)

SKU:24658Part No.:BMP390 Barometric Pressure SensorBrand:Waveshare

BDT 1,690

BDT 1,690 tax incl.

BDT 1,690 tax excl.

BDT 1,690 tax incl.

BDT 0 Tax

BDT 1,690 tax excl.

BDT 0 Tax

BDT 1,690 tax incl.

In stock

In stock: 5

Reference: RBD-3339

MPL3115A2 I2C Barometric Pressure & Altitude Sensor Module

(0)

High-precision barometric and altitude sensor with 1.5 Pa resolution and 0.3 m altitude accuracy. Features built-in altimeter calculation, eliminating manual calibration needs. I2C digital output for easy integration with Arduino, Raspberry Pi, and ESP boards. Ultra-low power design with interrupt support for energy-efficient applications. Includes...

BDT 750

BDT 750 tax incl.

BDT 750 tax excl.

BDT 750 tax incl.

BDT 0 Tax

BDT 750 tax excl.

BDT 0 Tax

BDT 750 tax incl.

In stock

In stock: 7

Frequently purchased together
Products from the same category

- BDT 14 Reduced price

Reference: RBD-0133

Breadboard Full Size Bare 830 Tie Points

(0)

830 Solder-less Points Ideal for Experimenting With Circuit Design In Labs Compatible with resistance, diodes, transistors, LED’s, Capacitors and other types of electronic components Colored coordinates for easy components placement. Accept a variety of wire sizes 20-29 AWG

BDT 145 BDT 159

BDT 159 BDT 145 tax incl.

BDT 159 BDT 145 tax excl.

BDT 159 BDT 145 tax incl.

BDT 0 BDT 0 Tax

BDT 159 BDT 145 tax excl.

BDT 0 BDT 0 Tax

BDT 159 BDT 145 tax incl.

In-Stock

In stock: 163

Reference: RBD-0344

Weighing Sensor 24 Bit Load Cell Amplifier HX711

(0)

Output Sensitivity: 1.0 ± 0.1 mV / V. Two selectable differential input channels. On-chip active low noise PGA with the selectable gain of 32, 64 and 128. On-chip oscillator requiring no external component with optional external crystal. On-chip power-on-reset. Measurement Resolution: 24 bit. RoboticsBD

BDT 130

BDT 130 tax incl.

BDT 130 tax excl.

BDT 130 tax incl.

BDT 0 Tax

BDT 130 tax excl.

BDT 0 Tax

BDT 130 tax incl.

In-Stock

In stock: 61

Reference: RBD-0755

5 mm Green LED (Pack of 5)

(0)

Size: 5mm Color: Green Head Shape: Round Lens Appearance: Transparent

BDT 5

BDT 5 tax incl.

BDT 5 tax excl.

BDT 5 tax incl.

BDT 0 Tax

BDT 5 tax excl.

BDT 0 Tax

BDT 5 tax incl.

In-Stock

In stock: 199

Reference: RBD-0768

5 mm Red LED (Pack of 5)

(0)

Size: 5mm Color: RED Head Shape: Round Lens Appearance: Transparent

BDT 5

BDT 5 tax incl.

BDT 5 tax excl.

BDT 5 tax incl.

BDT 0 Tax

BDT 5 tax excl.

BDT 0 Tax

BDT 5 tax incl.

In-Stock

In stock: 909

6V-12V Mini Air Pump Motor Robotics Bangladesh

Reference: RBD-0913

6V Mini Air Pump Motor

(0)

High-Quality Pump Operating Voltage 12VDC Air pump rate: 4 LPM Current Consumption: 300mA Low Noise Operation Durable and Longer Lasting

BDT 620

BDT 620 tax incl.

BDT 620 tax excl.

BDT 620 tax incl.

BDT 0 Tax

BDT 620 tax excl.

BDT 0 Tax

BDT 620 tax incl.

In-Stock

In stock: 45

Reference: RBD-0982

Digital Barometric Pressure Sensor Module 0-40kPa

(0)

Model: TM7711 / HX710B Data Output Rate:10 SPS / 80SPS Max. Operating Current (mA):1.5 IC Package:16 Pin SOP

BDT 350

BDT 350 tax incl.

BDT 350 tax excl.

BDT 350 tax incl.

BDT 0 Tax

BDT 350 tax excl.

BDT 0 Tax

BDT 350 tax incl.

In-Stock

In stock: 30

Reference: RBD-1360

1N4007 Diode

(0)

PN junction rectifier diode. One direction flow of Current. Used for conversion of AC power to DC. 1N 4007 is electrically compatible with other rectifier diodes Used instead of any of the diode belonging to 1N400X series

BDT 4

BDT 4 tax incl.

BDT 4 tax excl.

BDT 4 tax incl.

BDT 0 Tax

BDT 4 tax excl.

BDT 0 Tax

BDT 4 tax incl.

In-Stock

In stock: 380

Reference: RBD-0022

Ultrasonic Sonar Sensor HC-SR04

(0)

This is the HC-SR04 ultrasonic distance sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit. There are only four pins that you need to worry about on the HC-SR04: VCC (Power),...

BDT 110

BDT 110 tax incl.

BDT 110 tax excl.

BDT 110 tax incl.

BDT 0 Tax

BDT 110 tax excl.

BDT 0 Tax

BDT 110 tax incl.

In-Stock

In stock: 394

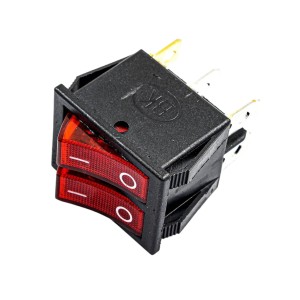

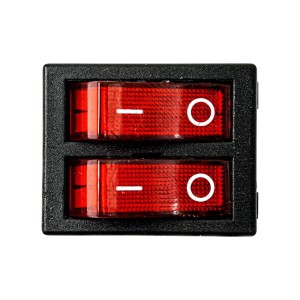

250V AC 20A 6 PIN Double Rocker Switch - Red Light

(0)

High-Capacity Switching: Rated for 250V AC and 20A, ideal for heavy-duty applications. Durable Construction: Built to endure up to 5000 cycles, ensuring long-lasting performance. Quick Visual Indicator: Features a red LED light for easy on/off status identification. Compact & Functional: Small, sleek design with a 6-pin configuration for versatile...

BDT 120

BDT 120 tax incl.

BDT 120 tax excl.

BDT 120 tax incl.

BDT 0 Tax

BDT 120 tax excl.

BDT 0 Tax

BDT 120 tax incl.

In-Stock

In stock: 293

- BDT 130 Reduced price

Reference: RBD-3263

BME280 I2C Pressure Humidity Temperature Sensor Module

(0)

BDT 420 BDT 550

BDT 550 BDT 420 tax incl.

BDT 550 BDT 420 tax excl.

BDT 550 BDT 420 tax incl.

BDT 0 BDT 0 Tax

BDT 550 BDT 420 tax excl.

BDT 0 BDT 0 Tax

BDT 550 BDT 420 tax incl.

In-Stock

In stock: 13

Reference: RBD-3338

LPS331AP Pneumatic Atmospheric Pressure Module

(0)

High-precision barometric pressure sensor with 24-bit resolution for accurate environmental monitoring. Measures pressure from 260 to 1260 mbar (26–126 kPa) for wide application versatility. Supports I2C and SPI communication for flexible microcontroller integration. Low power consumption (2mA) ideal for portable and battery-operated projects. Built-in...

BDT 990

BDT 990 tax incl.

BDT 990 tax excl.

BDT 990 tax incl.

BDT 0 Tax

BDT 990 tax excl.

BDT 0 Tax

BDT 990 tax incl.

In-Stock

In stock: 9

Reference: RBD-1376

MPXV7002DP Pressure Sensor Module

(0)

SensorModule : MPXV7002DP Measurement Range: 1psi, 100m/s (223mph/360kmh). Resolution: 0.84Pa. Data: Delivered at 14 bits from a 24 bit delta-sigma ADC. Low pass filtered Temperature compensated 10° to 60°C

BDT 5,990

BDT 5,990 tax incl.

BDT 5,990 tax excl.

BDT 5,990 tax incl.

BDT 0 Tax

BDT 5,990 tax excl.

BDT 0 Tax

BDT 5,990 tax incl.

In-Stock

In stock: 10

Follow us on Facebook

Facebook
