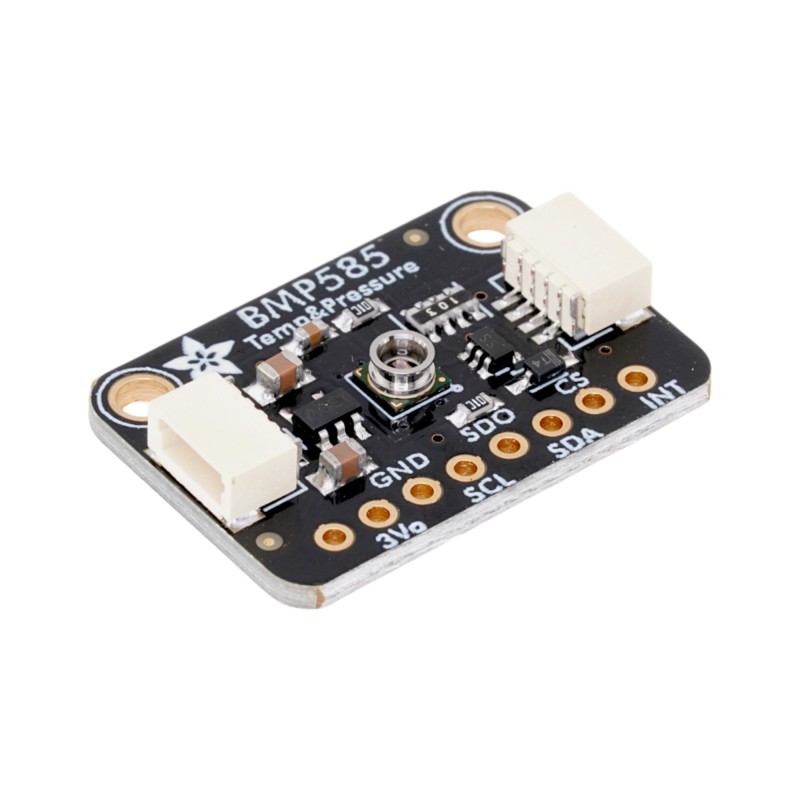

The BMP585 is a next-generation high-precision barometric pressure and temperature sensor from Bosch Sensortec, designed for accurate altitude and environmental measurements. It is an upgrade over earlier BMP series sensors (BMP280, BMP388, BMP390) and offers improved resolution, low noise performance, and fast conversion time.
This version features a ported pressure inlet, allowing a tube to be attached for remote or sealed pressure measurements. The sensor supports both I2C and SPI communication, making it suitable for a wide range of embedded systems, drones, wearables, and industrial applications.
The module includes onboard voltage regulation and logic level shifting, allowing safe operation with 3.3V or 5V microcontrollers. It is equipped with STEMMA QT / Qwiic connectors for solder-free, plug-and-play connections.
Key Features
High-precision barometric pressure and temperature measurement
Ported pressure inlet for tubing or sealed applications
Very low pressure noise, suitable for precise altitude sensing
Supports both I2C and SPI interfaces
Compatible with 3.3V and 5V logic systems
STEMMA QT / Qwiic connectors for easy, solderless wiring
Software compatible with BMP580 and BMP581
Technical Specifications
| Parameter | Specification |
|---|
| Pressure Measurement Range | Suitable for altitude and environmental sensing |
| Relative Pressure Accuracy | ±6 Pa (typical, at room temperature) |
| Absolute Pressure Accuracy | ±60 Pa (typical) |
| Pressure Noise | Approximately 0.08 Pa (equivalent to ~1 cm altitude) |
| Temperature Accuracy | ±0.5 °C |
| Communication Interface | I2C or SPI |
| I2C Address | Configurable |
| Operating Voltage | 3.3V (regulated), 5V tolerant |
| Sensor Type | Ported barometric pressure sensor |
| Connector Type | STEMMA QT / Qwiic (JST-SH 4-pin) |
| Module Dimensions | Approx. 25.3 mm × 17.8 mm |
Typical Applications
Drone and quadcopter altitude stabilization
Precision altimeters
Environmental and weather monitoring
Wearable devices
Industrial pressure sensing
Sealed or remote pressure measurement using tubing
Notes
Absolute altitude calculation requires reference sea-level pressure
Port allows connection of flexible tubing for remote pressure sensing
Compatible with common Arduino, Raspberry Pi, ESP32, and STM32 platforms
Package Contents
Summary
The BMP585 ported pressure sensor is an excellent choice when high resolution, low noise, and a physical pressure port are required. With dual I2C/SPI support and STEMMA QT / Qwiic compatibility, it provides flexibility, precision, and ease of integration for advanced sensing projects.
