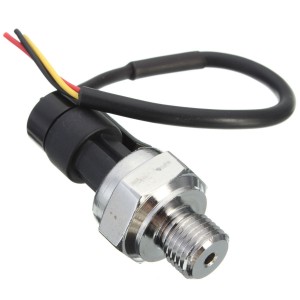

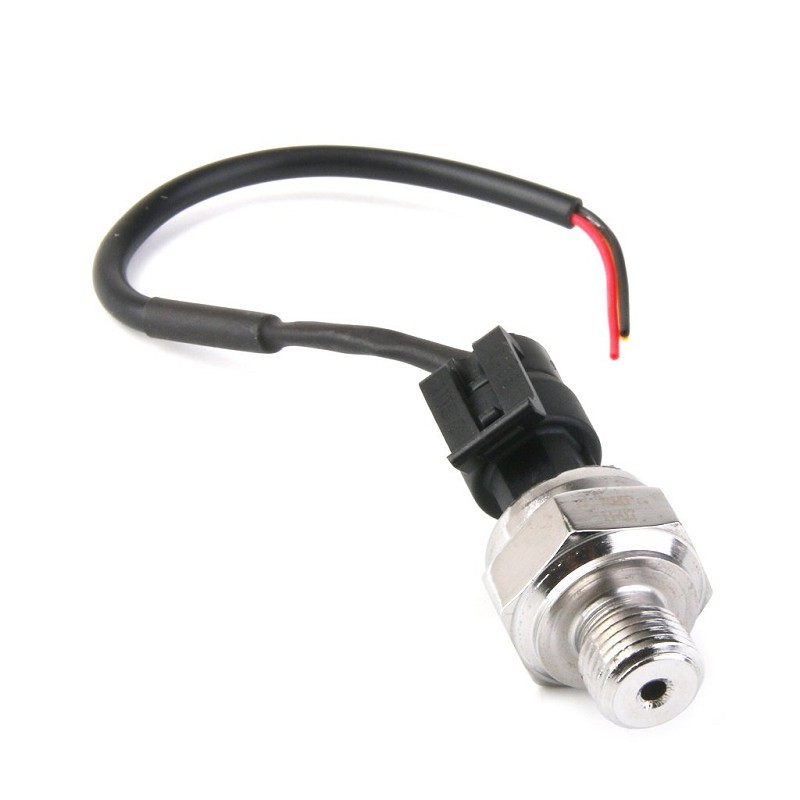

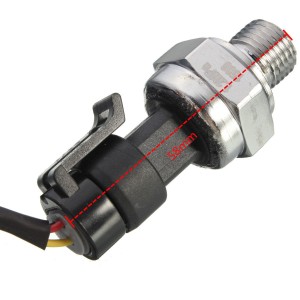

10MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2968

10MPa stainless steel pressure transducer with G1/4" threaded interface
Designed for high-pressure monitoring applications
High accuracy (±1.5%FS) with <2ms fast response
Analog output: 0.5–4.5VDC @ 5V input for easy integration
IP65-rated stainless steel housing ensures durability and stability
Ideal for oil, gas, hydraulic, and industrial systems

Description
Product Details

Description

The 10MPa G1/4" Stainless Steel Pressure Transducer Sensor is a rugged, high-accuracy pressure sensor built for demanding industrial and engineering applications. With its stainless steel housing, IP65 protection rating, and precision compensation technology, it ensures stable and reliable pressure monitoring under high load conditions. Operating on 5VDC with a 0.5–4.5V analog output, this sensor is compatible with microcontrollers, PLCs, and industrial automation systems. Its ±1.5%FS accuracy, <2ms response time, and surge protection make it a robust choice for hydraulic, pneumatic, oil, and gas systems requiring high-pressure monitoring up to 10MPa. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Pressure Range – Supports measurements up to 10MPa.
High Accuracy – ±1.5%FS with stable, repeatable readings.
Fast Response Time – <2ms for real-time pressure detection.
Analog Voltage Output – 0.5–4.5VDC for easy controller/PLC integration.
Stainless Steel Construction – Rugged and durable design.
Low Power Consumption – <10mA operating current.
Surge Protection – Ensures reliable operation in industrial setups.
IP65 Waterproof Rating – Safe for use in harsh environments.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Hydraulic Systems – High-pressure oil and fluid monitoring.
Industrial Automation – Machine pressure feedback and safety systems.
Gas Pipelines – Monitoring clean/non-corrosive gases.
Oil Tanks & Storage – High-pressure monitoring for industrial tanks.
Robotics & IoT Projects – Integration with control systems requiring precise pressure data.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

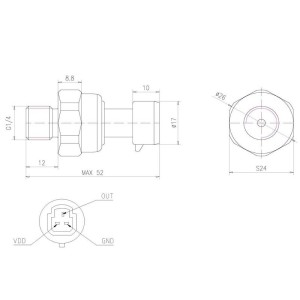

General Specifications
Specification	Details

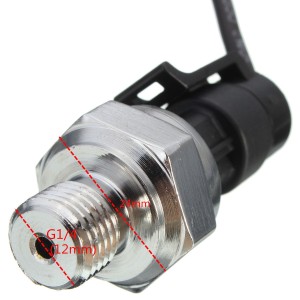

Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–10MPa
Maximum Applied Pressure	10MPa
Destruction Pressure	30MPa
Suitable Medium	Gas/liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0537 kg
Shipment Dimensions	8 × 7 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 10MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor
