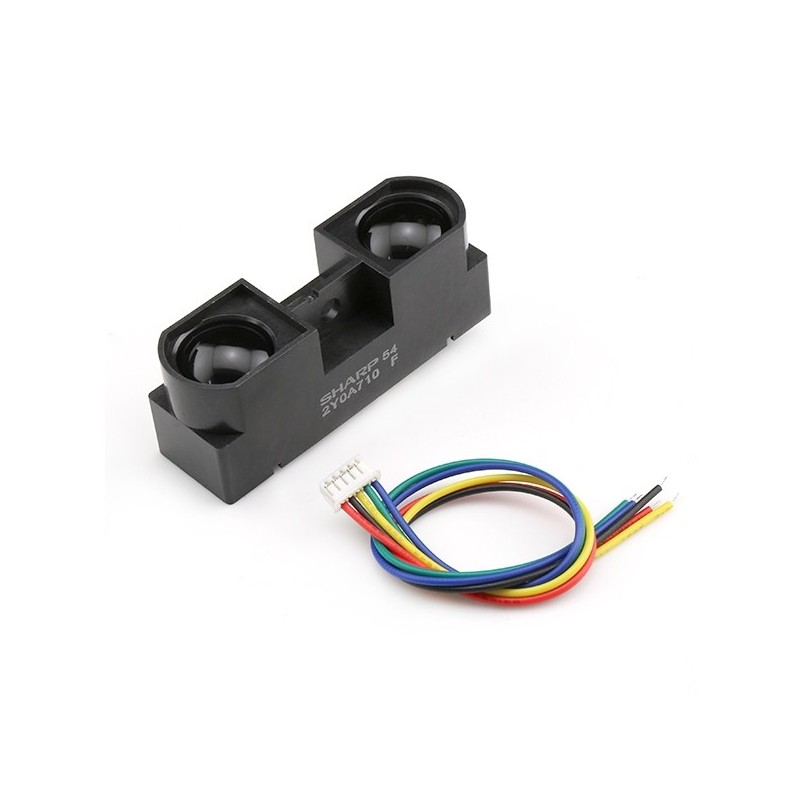

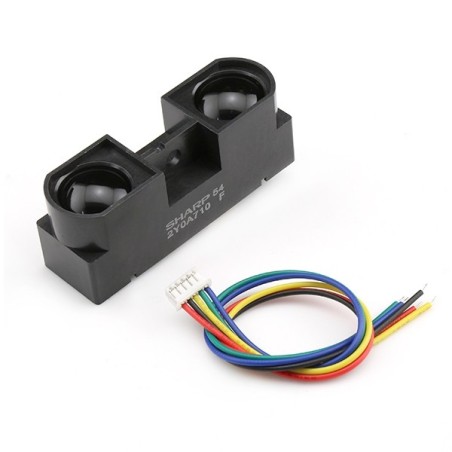

    SHARP Distance Measuring Sensor GP2Y0A710K0F

    RBD-1204

    • Distance measuring range: 100 cm to 550 cm
    • Output type: Analog voltage
    • Output voltage differential over distance range: 2.05 V (typical)
    • Update period: 38 ± 10 ms
    BDT 1,999
    BDT 1,999 BDT 1,999 BDT 1,999 BDT 1,999
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,999 Tax excluded
    BDT 1,999 Tax included
    BDT 0 Tax
    BDT 1,999 Tax excluded
    BDT 0 Tax
    BDT 1,999 Tax included
    Quantity
    In-Stock
    4 Items

    14 people have purchased this item
    Only 4 items left in stock
    Description

    These sensors are essential if you’re working on small robots or projects. However, while there are many distance sensors on the market, Sharp is known for providing high-quality distance sensors at a reasonable price. RoboticsBD

    Sharp is a well-known brand that produces distance sensors as well as other household appliances. The range of operation for these distance sensors is 550 cm.

    Distance sensors are becoming more popular as a cost-effective method of detecting, counting, and identifying objects without requiring physical contact.

    This extra-long-range SHARP Distance Measuring Sensor unit 100 to 550 cm – GP2Y0A710K0F with cable bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. These sensors are good for detection between 100cm-500cm (1-5 meters / 3-15 feet). RoboticsBD

    The long-range makes them a good alternative to sonar sensors.

    Please note: the wire colorings are not intuitive! Watch out before wiring! The datasheet has wiring details. Connect the two outer ground wires both to the ground, the two ‘VCC’ wires both to 5VDC power, and read the analog signal from the Vo wire. The analog voltage out will range from 3V when an object is about 100cm away and 1.4V when the object is 500cm away.

    For a full graph, showing the distance to the analog range, find the datasheet in the ATTACHMENT tab.

    These sensors tend to be a little noisy, we suggest soldering/connecting the 220uF capacitor to the same place you connect the wires, to provide some filtering on the power supply. Connect the + pin of the capacitor to the Vcc wire connection, and the – pin of the capacitor to the GND wire connection.  Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features :

    1. Long-distance type (bigger size).
    2. Analog output.
    3. Good Alternative to Sonar Sensors.
    4. This item comes with a JST connector and wires

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    ModelGP2Y0A710K0F (100to 550 cm)
    Operating Voltage (VDC)4.5 ~ 5.5
    Average Current Consumption (mA)33
    Sampling Rate21-26Hz
    Distance Measuring Range (CM)100 ~ 550
    UPC707223055991
    Output TypeAnalog Voltage
    Length (mm)58
    Width (mm)17.5
    Height (mm)25.2
    Weight (gm)11
    Shipment Weight0.016 kg
    Shipment Dimensions5 × 5 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Arduino-distance-sensor-library

    Package Includes :

    1 x SHARP Distance Measuring Sensor.

    1 x Connecting Cable.
