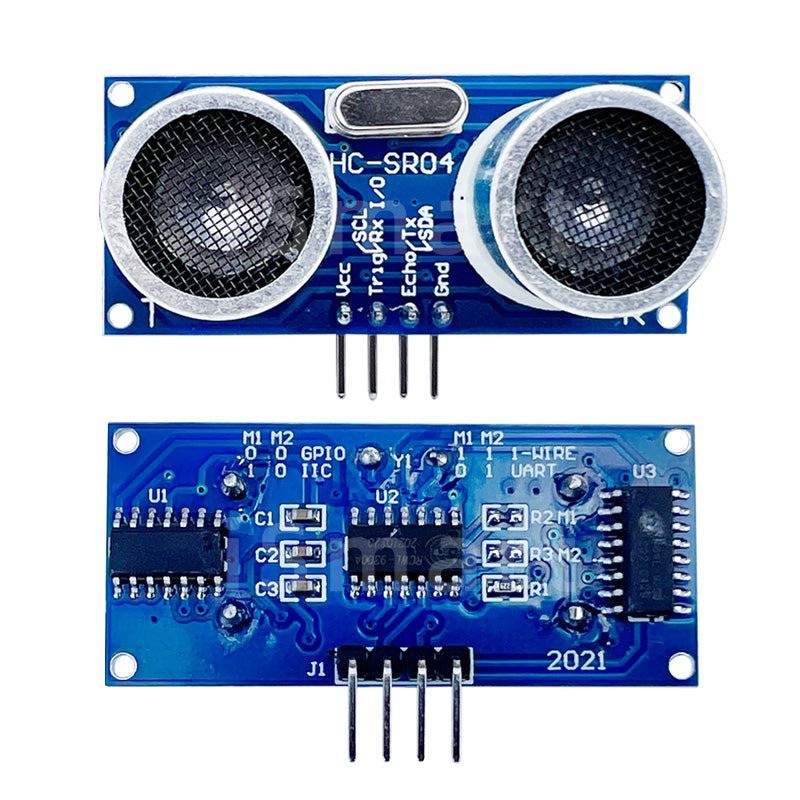

HC-SR04 Plus Ultrasonic Sonar Sensor 2021 3.3V-5V

Reference RBD-2446

Upgraded 2021 version of HC-SR04 with advanced communication modes
Wide input voltage range: 2.8V – 5.5V, compatible with 3.3V & 5V systems
Supports four communication modes: GPIO, I2C, 1-Wire, and UART
High-precision distance measurement: 2cm to 400cm with stable performance
Easy jumper configuration for selecting communication modes
Ideal for robotics, obstacle detection, and distance measurement projects

Description
Product Details

Description

The HC-SR04 Plus Ultrasonic Sonar Sensor (2021 edition) is an enhanced version of the classic HC-SR04, designed for greater flexibility and compatibility with modern microcontrollers. Unlike its predecessors, this version supports an input voltage range of 2.8V to 5.5V, making it ideal for both 3.3V boards like ESP32/STM32 and 5V boards like Arduino UNO/Nano. It introduces four communication modes (GPIO, I2C, 1-Wire, UART), offering users versatility to integrate the sensor according to their project requirements. With a reliable distance range of 2cm to 400cm, this sensor is widely used in robotics, automation, security, and IoT applications. Its jumper-based configuration makes switching between modes simple, making it a must-have sensor for advanced projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Updated 2021 Version – Improved flexibility over traditional HC-SR04 sensors.
Wide Voltage Support – Works seamlessly with 2.8V to 5.5V systems.
Multiple Communication Interfaces – Choose between GPIO, I2C, 1-Wire, or UART.
Accurate Distance Measurement – Detects objects from 2cm up to 400cm.
Easy Jumper Settings – Configure communication mode using onboard jumpers.
Broad Microcontroller Compatibility – Works with Arduino, ESP32, STM32, Raspberry Pi, and more.
Compact & Lightweight – Designed for easy integration into DIY and professional robotics projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Robotic Navigation – Enable autonomous obstacle detection and avoidance.
Security Systems – Detect motion or intruders using ultrasonic distance sensing.
IoT Projects – Integrate with smart devices for environment monitoring.
Industrial Automation – Use in distance measurement, level detection, or safety systems.
3D Mapping & Positioning – Aid in robotic SLAM (Simultaneous Localization and Mapping).
DIY Electronics – Perfect for Arduino and Raspberry Pi based projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Model	HC-SR04 Plus Ultrasonic Sonar Sensor 2021
Operating Voltage	2.8V – 5.5V
Compatible Systems	3.3V and 5V microcontrollers
Communication Modes	GPIO, I2C, 1-Wire, UART
Measurement Range	2cm – 400cm
Accuracy	±3mm (typical)
Field of View	~15°
Default Mode	GPIO (via Trigger & Echo pins)
Configuration	M1 & M2 jumpers for mode selection
Applications	Robotics, IoT, Automation, Security
Shipment Weight	0.0075 kg
Shipment Dimensions	5 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x HC-SR04 Plus Ultrasonic Sonar Sensor 2021 3.3V-5V
