    8051 Microcontroller MCU Learning Development Board Kit

    RBD-1544

    • AT89S52 development board
    • zero-based entry
    • AT89S51 learning board
    • 51 microcontroller development board
    • experiment board
    BDT 7,850
    BDT 7,850 BDT 7,850 BDT 7,850 BDT 7,850
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 7,850 Tax excluded
    BDT 7,850 Tax included
    BDT 0 Tax
    BDT 7,850 Tax excluded
    BDT 0 Tax
    BDT 7,850 Tax included
    Quantity
    In-Stock
    13 Items

    17 people have purchased this item
    2 people recently added this item to the cart
    13 items in stock
    Description

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. 8x8 Dot matrix Screen
    2. Water Lamp
    3. Two Relay control
    4. Infrared Transmitter and Receiver
    5. Multiple Sensor Pin

    This image has been translated from Chinese**

    STC89C52RC Features:

    1. Enhanced 80C51 Central Processing Unit ,6T or 12T per machine cycle
    2. Operation voltage range: 5.5V~3.3V (STC89C series) or 2.0V~ 3.6V (STC89LE series)
    3. Operation frequency range: 0- 48MHz@12T, or 0-24MHz@6T
    4. On-chip 4/8/13/16/20/32/64K FLASH program memory with flexible ISP/IAP capability
    5. On-chip 1280 byte / 512 byte RAM
    6. Be capable of addressing up to 64K byte of external RAM
    7. Be capable of addressing up to 64K bytes external memory RoboticsBD
    8. Dual Data Pointer (DPTR) to speed up data movement
    9. Three 16-bit timer/counter, Timer 2 is an up/down counter with programmable clcok output on P1.0
    10. 8 vector-address, 4 level priority interrupt capability
    11. One enhanced UART with hardware address-recognition, frame-error detection function, and with self baudrate generator.
    12. One 15 bits Watch-Dog-Timer with 8-bit pre-scaler (one-time-enabled)
    13. integrate MAX810 — specialized reset circuit
    14. Three power management modes: idle mode and power-down mode
    15. Low EMI: inhibit ALE emission
    16. Power down mode can be woken-up by INT0/P3.2 pin, INT1/P3.3 pin, T0/P3.4, T1/P3.5, RXD/P3.0 pin, INT2/P4.3, INT3/P4.2
    17. Maximum 39 programmable I/O ports are available
    18. Four 8-bit bi-directonal ports; extra four-bit additional P4 are available for PLCC-44 and LQFP-44
    19. Operating temperature: -40 ~ +85o C (industrial) / 0~75o C (commercial)  RoboticsBD
    20. package type :LQFP-44,PDIP-40,PLCC-44

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Model8051 MCU Learning Development Board
    ChipsetSTC89C52RC
    Part Number:HJ-C52
    Length (mm)178
    Width (mm)112
    Height (mm)15
    Weight (gm)250
    Shipment Weight0.445 kg
    Shipment Dimensions22 × 14 × 5.5 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. STC89Cxx series MCU STC89LExx series MCU Data Sheet
    2. User manual

    Package Includes:

    1 x 8051 MCU Learning Development Board Kit

    1 x Laser engraving wooden development box

    1 x STC89C52RC-51 MCU chip

    1 x 8x8 LED dot matrix screen

    1 x LCD1602 LCD display

    1 x 5-wire 4-phase stepper motor

    1 x 5V DC motor

    1 x Infrared remote control

    1 x Temperature sensor

    1 x Close sensitive resistance sensor

    1 x Thermistor sensor

    1 x CR1220 clock circuit battery

    1 x USB download data cable

    10 x 20cm high-quality Dupont wire

    1 x 11mm copper pillar pad .

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1544
    13 Items

    Specific References

    EAN13
    1544
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    Raspberry Pi Pico W with Soldered Headers Robotics Bangladesh Raspberry Pi Pico W with Soldered Headers Robotics Bangladesh

    Reference: RBD-2393

    Brand: Raspberry Pi Official

    Raspberry Pi Pico W with Soldered Headers

    (0)
    Enhanced Connectivity: Wi-Fi via Infineon CYW43439  High Performance: RP2040 microcontroller with dual-core Arm Cortex M0+ processor  Flexible Power Options: from ~1.8 to 5.5V, ideal for batteries or USB power. Rich Interfaces: Includes 26 GPIO pins, 2x SPI, 2x I2C, 2x UART, ADC, and PWM channels. Easy Programming: Drag-and-drop via USB or Serial Wire...
    BDT 1,549
    BDT 1,549 tax incl.
    BDT 1,549 tax excl.
    BDT 1,549 tax excl.
    BDT 1,549 tax incl.
    BDT 1,549 tax incl.
    BDT 0 Tax
    BDT 1,549 tax excl.
    BDT 1,549 tax excl.
    BDT 0 Tax
    BDT 1,549 tax incl.
    More Raspberry Pi Pico W with Soldered Headers
    In-Stock
    In stock: 5
    A4 Size Sheet Toner Transfer Paper For DIY PCB Electronic Prototype Robotics Bangladesh

    Reference: RBD-2115

    A4 Size Sheet Toner Transfer Paper For DIY PCB Electronic Prototype

    (0)
    Toner transfer paper for DIY PCB Easily attach with Copper Board High quality Imported
    BDT 16
    BDT 16 tax incl.
    BDT 16 tax excl.
    BDT 16 tax excl.
    BDT 16 tax incl.
    BDT 16 tax incl.
    BDT 0 Tax
    BDT 16 tax excl.
    BDT 16 tax excl.
    BDT 0 Tax
    BDT 16 tax incl.
    More A4 Size Sheet Toner Transfer Paper For DIY PCB Electronic Prototype
    In-Stock
    In stock: 322
    ESP32-S3 Development Board with 1.28inch Round Touch LCD Robotics Bangladesh ESP32-S3 Development Board with 1.28inch Round Touch LCD Robotics Bangladesh

    Reference: RBD-2770

    Brand: Waveshare

    ESP32-S3 Development Board with 1.28inch Round Touch LCD

    (0)
    ESP32-S3 development board with 1.28" round touch LCD display Integrated Wi-Fi and Bluetooth 5 (LE) connectivity Includes accelerometer and gyroscope sensor for motion detection Compact and stylish design, ideal for smart wearable applications Powered by ESP32-S3 chip with AI and IoT capabilities Brand: Waveshare | SKU: 25098 | Part: ESP32-S3-Touch-LCD-1.28
    BDT 4,390
    BDT 4,390 tax incl.
    BDT 4,390 tax excl.
    BDT 4,390 tax excl.
    BDT 4,390 tax incl.
    BDT 4,390 tax incl.
    BDT 0 Tax
    BDT 4,390 tax excl.
    BDT 4,390 tax excl.
    BDT 0 Tax
    BDT 4,390 tax incl.
    More ESP32-S3 Development Board with 1.28inch Round Touch LCD
    In-Stock
    In stock: 5
    STM32 NUCLEO-F446RE STM32F446RE ARM Cortex M4 Development Board Robotics Bangladesh STM32 NUCLEO-F446RE STM32F446RE ARM Cortex M4 Development Board Robotics Bangladesh

    Reference: RBD-2827

    Brand: ST Microelectronics

    STM32 NUCLEO-F446RE STM32F446RE ARM Cortex M4 Development Board

    (0)
    Powered by STM32F446RET6 ARM Cortex M4 core running at 180 MHz. Features 512 KB Flash and 128 KB SRAM for advanced embedded applications. Arduino Uno Rev3 shield compatible and ST Morpho connectors for expansion. Integrated ST-Link/V2 debugger/programmer with SWD output. Wide range of interfaces: SPI, I2C, USART, UART, CAN, USB OTG, Quad SPI, SAI,...
    BDT 5,245
    BDT 5,245 tax incl.
    BDT 5,245 tax excl.
    BDT 5,245 tax excl.
    BDT 5,245 tax incl.
    BDT 5,245 tax incl.
    BDT 0 Tax
    BDT 5,245 tax excl.
    BDT 5,245 tax excl.
    BDT 0 Tax
    BDT 5,245 tax incl.
    More STM32 NUCLEO-F446RE STM32F446RE ARM Cortex M4 Development Board
    In-Stock
    In stock: 6
    Lego Style Mini Tie-point Breadboard Solderless Prototype Test Board Robotics Bangladesh Lego Style Mini Tie-point Breadboard Solderless Prototype Test Board Robotics Bangladesh

    Reference: RBD-2570

    Lego Style Mini Tie-point Breadboard Solderless Prototype Test Board

    (0)
    Compact Lego-style mini solderless breadboard kit for rapid prototyping Includes 7 mini tie-point breadboards and 1 under splice plate Snap-together design for easy expansion and modular prototyping Perfect for Arduino, Raspberry Pi, and other microcontroller projects Durable plastic housing with reliable metal spring contacts Lightweight and portable,...
    BDT 250
    BDT 250 tax incl.
    BDT 250 tax excl.
    BDT 250 tax excl.
    BDT 250 tax incl.
    BDT 250 tax incl.
    BDT 0 Tax
    BDT 250 tax excl.
    BDT 250 tax excl.
    BDT 0 Tax
    BDT 250 tax incl.
    More Lego Style Mini Tie-point Breadboard Solderless Prototype Test Board
    In-Stock
    In stock: 87
    Pack Sold-out Line Following Robot Kit 2021 Robotics Bangladesh Line Following Robot Kit 2021 Robotics Bangladesh

    Reference: RBD-0117

    Line Following Robot Kit 2021

    (0)
    Package Name: Line Following Kit Year: 2021 Arduino Uno  L298n motor shield Line Following Sensor 5 Array Breadboard medium Tp4056 with 1 cell holder (Charger)
    BDT 2,899
    BDT 2,899 tax incl.
    BDT 2,899 tax excl.
    BDT 2,899 tax excl.
    BDT 2,899 tax incl.
    BDT 2,899 tax incl.
    BDT 0 Tax
    BDT 2,899 tax excl.
    BDT 2,899 tax excl.
    BDT 0 Tax
    BDT 2,899 tax incl.
    More Line Following Robot Kit 2021
    Sold-out
    In stock: 0
    On sale! Electric Mini Drill Robotics Bangladesh Electric Mini Drill Robotics Bangladesh

    Reference: RBD-0670

    Brand: RoboticsBD

    Electric Mini Drill

    (0)
    Color: Grey Speed: 8500 RPM Collet Size: 0.5-3.0mm Full Accessories Set (14 pcs)
    BDT 1,150
    BDT 1,150 tax incl.
    BDT 1,150 tax excl.
    BDT 1,150 tax excl.
    BDT 1,150 tax incl.
    BDT 1,150 tax incl.
    BDT 0 Tax
    BDT 1,150 tax excl.
    BDT 1,150 tax excl.
    BDT 0 Tax
    BDT 1,150 tax incl.
    More Electric Mini Drill
    In-Stock
    In stock: 10
    ESP32 Dev Board CH340 USB-C Robotics Bangladesh ESP32 Dev Board CH340 USB-C Robotics Bangladesh

    Reference: RBD-2266

    ESP32 Dev Board CH340 USB-C

    (0)
    Versatile and powerful development board for IoT and embedded systems projects. USB Type-C port for reversible plug orientation and easy connection to computer or other devices. Built-in Wi-Fi and Bluetooth module for wireless connectivity. Arduino IDE compatibility for easy code writing and uploading. Suitable for a wide range of applications, including...
    BDT 590
    BDT 590 tax incl.
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 590 tax incl.
    BDT 590 tax incl.
    BDT 0 Tax
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 0 Tax
    BDT 590 tax incl.
    More ESP32 Dev Board CH340 USB-C
    In-Stock
    In stock: 77
    STM32 NUCLEO-F401RE STM32F401RE ARM Cortex M4 Development Board Robotics Bangladesh STM32 NUCLEO-F401RE STM32F401RE ARM Cortex M4 Development Board Robotics Bangladesh

    Reference: RBD-2826

    Brand: ST Microelectronics

    STM32 NUCLEO-F401RE STM32F401RE ARM Cortex M4 Development Board

    (0)
    Powered by STM32F401RE 32-bit ARM Cortex M4 core running at 84 MHz. Features 512 KB Flash and 96 KB SRAM for complex project development. Compatible with Arduino Uno Rev3 shields and ST Morpho connectors. Integrated ST-Link/V2 debugger/programmer with SWD output. Supports mbed.org online compiler, Keil, IAR, and GCC-based IDEs. Onboard LED indicators and...
    BDT 4,590
    BDT 4,590 tax incl.
    BDT 4,590 tax excl.
    BDT 4,590 tax excl.
    BDT 4,590 tax incl.
    BDT 4,590 tax incl.
    BDT 0 Tax
    BDT 4,590 tax excl.
    BDT 4,590 tax excl.
    BDT 0 Tax
    BDT 4,590 tax incl.
    More STM32 NUCLEO-F401RE STM32F401RE ARM Cortex M4 Development Board
    In-Stock
    In stock: 8
    Maixduino AI Development Kit K210 RISC-V AI + IoT ESP32 Robotics Bangladesh Maixduino AI Development Kit K210 RISC-V AI + IoT ESP32 Robotics Bangladesh

    Reference: RBD-2830

    Brand: DFRobot

    Maixduino AI Development Kit K210 RISC-V AI + IoT ESP32

    (0)
    Maixduino AI Development Kit powered by K210 RISC-V dual-core AI processor Built-in neural network accelerator (KPU), voice processing (APU), and FFT hardware Integrated ESP32 module for WiFi 2.4GHz (802.11 b/g/n) and Bluetooth 4.2 LE Includes 2.4” LCD screen and GC0328 camera for vision-based AI projects Arduino UNO form factor with digital I/O, PWM,...
    BDT 9,500
    BDT 9,500 tax incl.
    BDT 9,500 tax excl.
    BDT 9,500 tax excl.
    BDT 9,500 tax incl.
    BDT 9,500 tax incl.
    BDT 0 Tax
    BDT 9,500 tax excl.
    BDT 9,500 tax excl.
    BDT 0 Tax
    BDT 9,500 tax incl.
    More Maixduino AI Development Kit K210 RISC-V AI + IoT ESP32
    Last items in stock
    In stock: 1

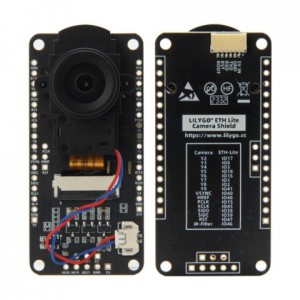

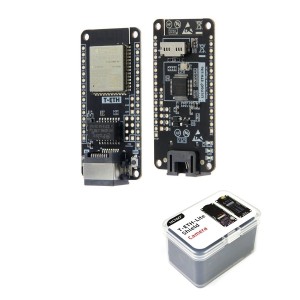

    LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 Robotics Bangladesh LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 Robotics Bangladesh

    Reference: RBD-3506

    LILYGO T-ETH Lite ESP32-S3 Camera Shield H683

    (0)
    LILYGO T-ETH Lite ESP32-S3 Camera Shield H683 for advanced IoT vision projects Supports OV2640 (2MP) and OV5640 (5MP) camera modules Built-in W5500 Ethernet for stable wired networking Wi-Fi 802.11 b/g/n + Bluetooth 5 (LE) wireless connectivity Optional PoE support for simplified power and data over Ethernet Compatible with ESP-IDF and Arduino IDE for...
    BDT 1,890
    BDT 1,890 tax incl.
    BDT 1,890 tax excl.
    BDT 1,890 tax excl.
    BDT 1,890 tax incl.
    BDT 1,890 tax incl.
    BDT 0 Tax
    BDT 1,890 tax excl.
    BDT 1,890 tax excl.
    BDT 0 Tax
    BDT 1,890 tax incl.
    More LILYGO T-ETH Lite ESP32-S3 Camera Shield H683
    In-Stock
    In stock: 4
    STM32 NUCLEO-H755ZI-Q - STM32H755ZIT6 ARM Cortex M7/M4 Development Board Robotics Bangladesh STM32 NUCLEO-H755ZI-Q - STM32H755ZIT6 ARM Cortex M7/M4 Development Board Robotics Bangladesh

    Reference: RBD-2669

    Brand: ST Microelectronics

    STM32 NUCLEO-H755ZI-Q - STM32H755ZIT6 ARM Cortex M7/M4 Development Board

    (0)
    STM32 NUCLEO-H755ZI-Q with dual-core ARM Cortex-M7 (480 MHz) & Cortex-M4 (240 MHz) Equipped with 2 MB Flash, 864 kB SRAM, and 1 MB RAM for high-performance applications Compatible with Arduino Uno Rev3 and ST Morpho connectors for versatile prototyping On-board ST-LINK/V2 debugger with SWD output and microUSB interface for programming Features 16-bit...
    BDT 10,232
    BDT 10,232 tax incl.
    BDT 10,232 tax excl.
    BDT 10,232 tax excl.
    BDT 10,232 tax incl.
    BDT 10,232 tax incl.
    BDT 0 Tax
    BDT 10,232 tax excl.
    BDT 10,232 tax excl.
    BDT 0 Tax
    BDT 10,232 tax incl.
    More STM32 NUCLEO-H755ZI-Q - STM32H755ZIT6 ARM Cortex M7/M4 Development Board
    In-Stock
    In stock: 7
    Soldering Iron Kit 21-in-1 with PU Bag Robotics Bangladesh Soldering Iron Kit 21-in-1 with PU Bag Robotics Bangladesh

    Reference: RBD-1245

    Soldering Iron Kit 21-in-1 with PU Bag

    (0)
    Soldering Iron Kit 21-in-1 with PU Bag by HANDSKIT Complete Soldering Kit: It includes the complete soldering tools for various uses, from home DIY, electrical repairs jobs and other soldering projects.
    BDT 2,990
    BDT 2,990 tax incl.
    BDT 2,990 tax excl.
    BDT 2,990 tax excl.
    BDT 2,990 tax incl.
    BDT 2,990 tax incl.
    BDT 0 Tax
    BDT 2,990 tax excl.
    BDT 2,990 tax excl.
    BDT 0 Tax
    BDT 2,990 tax incl.
    More Soldering Iron Kit 21-in-1 with PU Bag
    In-Stock
    In stock: 46
    FR4 CCL Copper Clad Plate Laminate Single Side PCB Glass Fiber Robotics Bangladesh FR4 CCL Copper Clad Plate Laminate Single Side PCB Glass Fiber Robotics Bangladesh

    Reference: RBD-2113

    FR4 CCL Copper Clad Plate Laminate Single Side PCB Glass Fiber

    (0)
    Single side PCB. Reinforced with glass fiber laminate on the core. 200 x 330 x 1.4 mm. Ideal for prototyping. Color: Ash, White Smooth Machine Cut
    BDT 590
    BDT 590 tax incl.
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 590 tax incl.
    BDT 590 tax incl.
    BDT 0 Tax
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 0 Tax
    BDT 590 tax incl.
    More FR4 CCL Copper Clad Plate Laminate Single Side PCB Glass Fiber
    In-Stock
    In stock: 40
    SS49E Linear Hall Effect Sensor Module Robotics Bangladesh SS49E Linear Hall Effect Sensor Module Robotics Bangladesh

    Reference: RBD-2071

    SS49E Linear Hall Effect Sensor Module

    (0)
    Type: Magnetic Sensor Module Mainly Compatible with: Ardunio
    BDT 50
    BDT 50 tax incl.
    BDT 50 tax excl.
    BDT 50 tax excl.
    BDT 50 tax incl.
    BDT 50 tax incl.
    BDT 0 Tax
    BDT 50 tax excl.
    BDT 50 tax excl.
    BDT 0 Tax
    BDT 50 tax incl.
    More SS49E Linear Hall Effect Sensor Module
    Last items in stock
    In stock: 3
    - BDT 800 Reduced price Pack Sold-out Wireless Communication KIT for Arduino UNO Robotics Bangladesh Wireless Communication KIT for Arduino UNO Robotics Bangladesh

    Reference: RBD-1661

    Wireless Communication KIT for Arduino UNO

    (0)
    All in one kit for Arduino Based Wireless and IoT NRF wireless Transceiver Module Sim900 Shield Sim800L RF Transmitter and Receiver
    BDT 5,500 BDT 6,300
    BDT 6,300 BDT 5,500 tax incl.
    BDT 6,300 BDT 5,500 tax excl.
    BDT 6,300 BDT 5,500 tax excl.
    BDT 6,300 BDT 5,500 tax incl.
    BDT 6,300 BDT 5,500 tax incl.
    BDT 0 BDT 0 Tax
    BDT 6,300 BDT 5,500 tax excl.
    BDT 6,300 BDT 5,500 tax excl.
    BDT 0 BDT 0 Tax
    BDT 6,300 BDT 5,500 tax incl.
    More Wireless Communication KIT for Arduino UNO
    Sold-out
    In stock: 0
    Heat Shrink Tube Robotics Bangladesh Heat Shrink Tube Robotics Bangladesh

    Reference: 0984

    Heat Shrink Tube

    (0)
    Choose your desire Heat Sink Size from below:
    BDT 2
    BDT 2 tax incl.
    BDT 2 tax excl.
    BDT 2 tax excl.
    BDT 2 tax incl.
    BDT 2 tax incl.
    BDT 0 Tax
    BDT 2 tax excl.
    BDT 2 tax excl.
    BDT 0 Tax
    BDT 2 tax incl.
    More Heat Shrink Tube
    In-Stock
    In stock: 617
    Jumper Wire Single 20cm Robotics Bangladesh

    Reference: RBD-1354

    Jumper Wire Single 20cm

    (0)
    Length: 8 inches/20 CM (Long) Material: Copper Plated Pin Spacing: 2.54mm.
    BDT 3
    BDT 3 tax incl.
    BDT 3 tax excl.
    BDT 3 tax excl.
    BDT 3 tax incl.
    BDT 3 tax incl.
    BDT 0 Tax
    BDT 3 tax excl.
    BDT 3 tax excl.
    BDT 0 Tax
    BDT 3 tax incl.
    More Jumper Wire Single 20cm
    In-Stock
    In stock: 5824
    37 In 1 Sensor Module Board Set Kit For Arduino with Box Robotics Bangladesh 37 In 1 Sensor Module Board Set Kit For Arduino with Box Robotics Bangladesh

    Reference: RBD-1541

    37 In 1 Sensor Module Board Set Kit For Arduino with Box

    (0)
    For beginners who are interested in Arduino A complete set of Arduino’s most common and useful electronic components Infrared sensor receiving module Laser sensor module Temperature and humidity sensor module Infrared sensor module 5v relay module Obstacle avoidance sensor module.
    BDT 1,990
    BDT 1,990 tax incl.
    BDT 1,990 tax excl.
    BDT 1,990 tax excl.
    BDT 1,990 tax incl.
    BDT 1,990 tax incl.
    BDT 0 Tax
    BDT 1,990 tax excl.
    BDT 1,990 tax excl.
    BDT 0 Tax
    BDT 1,990 tax incl.
    More 37 In 1 Sensor Module Board Set Kit For Arduino with Box
    In-Stock
    In stock: 4
    - BDT 100 Reduced price Arduino Mega 2560 R3 Robotics Bangladesh Arduino Mega 2560 R3 Robotics Bangladesh

    Reference: RBD-0009

    Arduino Mega 2560 R3

    (0)
    54 Digital I/O terminals (14 of which have programmable PWM outputs). 16 Analog Inputs. 4 UARTs (hardware serial ports). 16 MHz crystal clock. RoboticsBD Operating voltage: 6 ~ 12v. Dimensions: 110 x 53 x 15 mm.
    BDT 1,788 BDT 1,888
    BDT 1,888 BDT 1,788 tax incl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax incl.
    BDT 1,888 BDT 1,788 tax incl.
    BDT 0 BDT 0 Tax
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 0 BDT 0 Tax
    BDT 1,888 BDT 1,788 tax incl.
    More Arduino Mega 2560 R3
    In-Stock
    In stock: 6
    Breadboard (Medium Size) Robotics Bangladesh

    Reference: RBD-0120

    Breadboard Half Size Bare 400 Tie Points

    (0)
    400 tie points 2 Power lanes, Total 100 tie points in power lanes 1 Double strip, Total 300 tie points Perfect for Arduino shield prototyping and testing Plastic housing, metal contact clips
    BDT 88
    BDT 88 tax incl.
    BDT 88 tax excl.
    BDT 88 tax excl.
    BDT 88 tax incl.
    BDT 88 tax incl.
    BDT 0 Tax
    BDT 88 tax excl.
    BDT 88 tax excl.
    BDT 0 Tax
    BDT 88 tax incl.
    More Breadboard Half Size Bare 400 Tie Points
    In-Stock
    In stock: 248
    Infrared Obstacle Avoidance IR Sensor Module Robotics Bangladesh Infrared Obstacle Avoidance IR Sensor Module Robotics Bangladesh

    Reference: RBD-0685

    Infrared Obstacle Avoidance IR Sensor Module

    (0)
    Detection distance: 2 ~ 30cm Detection angle: 35 ° Comparator chip: LM393 3mm screw holes for easy mounting
    BDT 45
    BDT 45 tax incl.
    BDT 45 tax excl.
    BDT 45 tax excl.
    BDT 45 tax incl.
    BDT 45 tax incl.
    BDT 0 Tax
    BDT 45 tax excl.
    BDT 45 tax excl.
    BDT 0 Tax
    BDT 45 tax incl.
    More Infrared Obstacle Avoidance IR Sensor Module
    In-Stock
    In stock: 1666
    5 mm Green LED (Pack of 5) Robotics Bangladesh

    Reference: RBD-0755

    5 mm Green LED (Pack of 5)

    (0)
    Size: 5mm Color: Green Head Shape: Round Lens Appearance: Transparent
    BDT 5
    BDT 5 tax incl.
    BDT 5 tax excl.
    BDT 5 tax excl.
    BDT 5 tax incl.
    BDT 5 tax incl.
    BDT 0 Tax
    BDT 5 tax excl.
    BDT 5 tax excl.
    BDT 0 Tax
    BDT 5 tax incl.
    More 5 mm Green LED (Pack of 5)
    In-Stock
    In stock: 199
    You might also like
    Arduino Advance Learning Kit with Uno R3 Robotics Bangladesh Arduino Advance Learning Kit with Uno R3 Robotics Bangladesh

    Reference: RBD-1626

    Brand: RoboticsBD

    Arduino Advance Learning Kit with Uno R3

    (0)
    Great for Starting with Arduino Programming A variety of components are included in this pack to try out different projects. The kit comes with quality components All-in-one kit, a great starter kit for learning to code. All Basis component to start is covered in kit You can create 15 different projects from this kit
    BDT 3,190
    BDT 3,190 tax incl.
    BDT 3,190 tax excl.
    BDT 3,190 tax excl.
    BDT 3,190 tax incl.
    BDT 3,190 tax incl.
    BDT 0 Tax
    BDT 3,190 tax excl.
    BDT 3,190 tax excl.
    BDT 0 Tax
    BDT 3,190 tax incl.
    More Arduino Advance Learning Kit with Uno R3
    In-Stock
    In stock: 33
    Pack Beginners Kit with Arduino Uno R3 Robotics Bangladesh

    Reference: RBD-1665

    Beginners Kit with Arduino Uno R3

    (0)
    Great for Starting with Arduino Programming A variety of components are included in this pack to try out different projects. The kit comes with quality components assured by RoboticsBD All-in-one kit, a great starter kit for learning to code. Microcontroller ATmega328
    BDT 2,950
    BDT 2,950 tax incl.
    BDT 2,950 tax excl.
    BDT 2,950 tax excl.
    BDT 2,950 tax incl.
    BDT 2,950 tax incl.
    BDT 0 Tax
    BDT 2,950 tax excl.
    BDT 2,950 tax excl.
    BDT 0 Tax
    BDT 2,950 tax incl.
    More Beginners Kit with Arduino Uno R3
    Sold-Out
    In stock: -2
    CH340 USB to ESP8266 Serial Wireless Wifi Module Adapter Board CH340 ESP-01 Development Microcontroller For Arduino Robotics

    Reference: RBD-0697

    CH340 USB to ESP8266 Serial Wireless Wifi Module Adapter Board CH340 ESP-01 Development Microcontroller For Arduino

    (0)
    Driver Chip: CH340G Supports all basic windows versions. The adapter plate integrated 1000μF solid capacitors to ensure the current supply The power supply will not be a problem to make WIFI module crashes unresponsive. Using 3225 SMD crystal oscillator, improve the stability of serial work, on a beautiful and tall. Working voltage: 4.5V – 5.5V (Onboard...
    BDT 199
    BDT 199 tax incl.
    BDT 199 tax excl.
    BDT 199 tax excl.
    BDT 199 tax incl.
    BDT 199 tax incl.
    BDT 0 Tax
    BDT 199 tax excl.
    BDT 199 tax excl.
    BDT 0 Tax
    BDT 199 tax incl.
    More CH340 USB to ESP8266 Serial Wireless Wifi Module Adapter Board CH340 ESP-01 Development Microcontroller For Arduino
    In-Stock
    In stock: 48
    Discovery Kit STM32F429I-DISC1 with 2.4" screen Discovery Kit STM32F429I-DISC1 with 2.4" screen

    Reference: RBD-1531

    Brand: ST Microelectronics

    Discovery Kit STM32F429I-DISC1 with 2.4" screen

    (0)
    The commissioning kit is based on the board STM32f429zit6 (180 MHz, 2 MB of Flash memory, 256 KB RAM, Cortex-M4F ARM). On-Board is also 3-axis gyroscope, touchscreen LCD 2.4" QVGA TFT and programmer / debugger ST-LINK/V2-B.
    BDT 8,450
    BDT 8,450 tax incl.
    BDT 8,450 tax excl.
    BDT 8,450 tax excl.
    BDT 8,450 tax incl.
    BDT 8,450 tax incl.
    BDT 0 Tax
    BDT 8,450 tax excl.
    BDT 8,450 tax excl.
    BDT 0 Tax
    BDT 8,450 tax incl.
    More Discovery Kit STM32F429I-DISC1 with 2.4" screen
    In-Stock
    In stock: 7
    Pack Sold-out Line Following Robot Kit 2021 Robotics Bangladesh Line Following Robot Kit 2021 Robotics Bangladesh

    Reference: RBD-0117

    Line Following Robot Kit 2021

    (0)
    Package Name: Line Following Kit Year: 2021 Arduino Uno  L298n motor shield Line Following Sensor 5 Array Breadboard medium Tp4056 with 1 cell holder (Charger)
    BDT 2,899
    BDT 2,899 tax incl.
    BDT 2,899 tax excl.
    BDT 2,899 tax excl.
    BDT 2,899 tax incl.
    BDT 2,899 tax incl.
    BDT 0 Tax
    BDT 2,899 tax excl.
    BDT 2,899 tax excl.
    BDT 0 Tax
    BDT 2,899 tax incl.
    More Line Following Robot Kit 2021
    Sold-out
    In stock: 0
    Pre-Order PICkit3 Microchip MPLAB PICkit 3 PIC In-Circuit Programmer Debugger for PIC and dsPIC Flash Chips Robotics Bangladesh

    Reference: RBD-0412

    PICkit3 Microchip MPLAB PICkit 3 PIC In-Circuit Programmer Debugger for PIC and dsPIC Flash Chips

    (0)
    Microchip's PICkit3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. The MPLAB PICkit3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price.
    BDT 2,500
    BDT 2,500 tax incl.
    BDT 2,500 tax excl.
    BDT 2,500 tax excl.
    BDT 2,500 tax incl.
    BDT 2,500 tax incl.
    BDT 0 Tax
    BDT 2,500 tax excl.
    BDT 2,500 tax excl.
    BDT 0 Tax
    BDT 2,500 tax incl.
    More PICkit3 Microchip MPLAB PICkit 3 PIC In-Circuit Programmer Debugger for PIC and dsPIC Flash Chips
    Pre-Order
    In stock: -2
    - BDT 171 Reduced price PN532 Compatible Clone NFC RFID Read / Write Module V3 Kit Robotics Bangladesh

    Reference: RBD-0346

    PN532 Compatible Clone NFC RFID Read / Write Module V3 Kit

    (0)
    The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at...
    BDT 419 BDT 590
    BDT 590 BDT 419 tax incl.
    BDT 590 BDT 419 tax excl.
    BDT 590 BDT 419 tax excl.
    BDT 590 BDT 419 tax incl.
    BDT 590 BDT 419 tax incl.
    BDT 0 BDT 0 Tax
    BDT 590 BDT 419 tax excl.
    BDT 590 BDT 419 tax excl.
    BDT 0 BDT 0 Tax
    BDT 590 BDT 419 tax incl.
    More PN532 Compatible Clone NFC RFID Read / Write Module V3 Kit
    In-Stock
    In stock: 19
    On sale! STM32F103C8T6 Blue Pill Development Board Robotics Bangladesh

    Reference: RBD-0350

    STM32F103C8T6 Blue Pill Development Board Imported Chipset

    (0)
    100% Brand new and high quality STM32 Board Model: STM32F103C8T6. Core: ARM 32 Cortex-M3 CPU. Debug mode: SWD. 72MHz work frequency. 64K flash memory, 20K SRAM. RoboticsBD 2.0-3.6V power, I/O.
    BDT 490
    BDT 490 tax incl.
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 490 tax incl.
    BDT 490 tax incl.
    BDT 0 Tax
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 0 Tax
    BDT 490 tax incl.
    More STM32F103C8T6 Blue Pill Development Board Imported Chipset
    In-Stock
    In stock: 86
    STM8S103F3P6 ARM STM8 Minimum System Development Board Module (Arduino Compatible) Robotics Bangladesh

    Reference: RBD-0576

    STM8S103F3P6 ARM STM8 Minimum System Development Board Module (Arduino Compatible)

    (0)
    Chipboard STM32F103C8T6 On board, SWIM interface and reset button Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V. Power light and the Demo indicator light Leads all the pins and has detailed label for the Pins. Support SWIM debug mode. RoboticsBD
    BDT 450
    BDT 450 tax incl.
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 450 tax incl.
    BDT 450 tax incl.
    BDT 0 Tax
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 0 Tax
    BDT 450 tax incl.
    More STM8S103F3P6 ARM STM8 Minimum System Development Board Module (Arduino Compatible)
    In-Stock
    In stock: 20

    Follow us on Facebook

    Facebook
