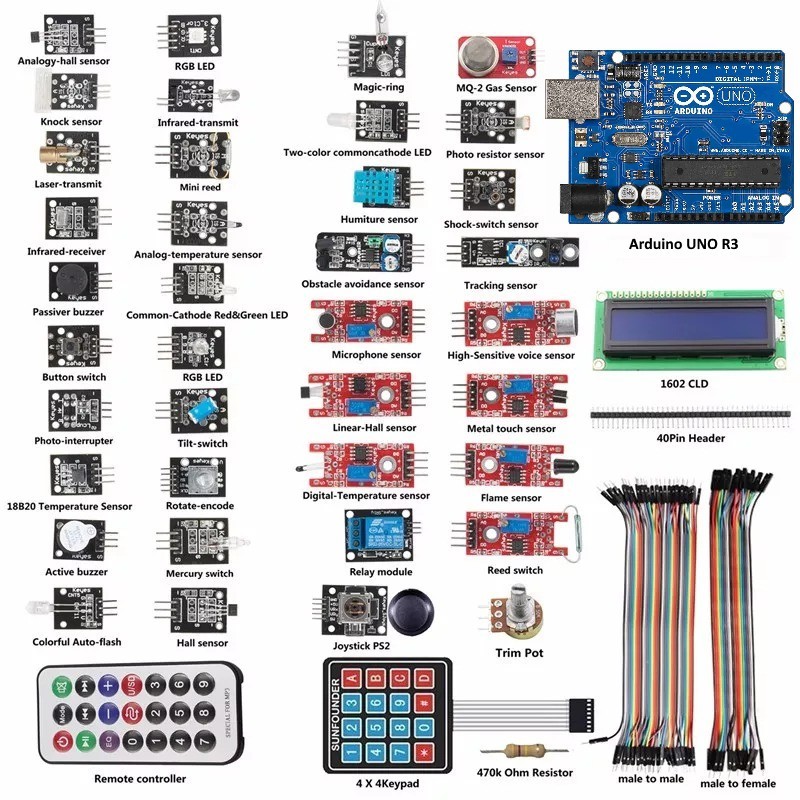

RoboticsBD Ultimate Sensor Kit V1.0

Reference RBD-2066

1. 35 projects and 37 modules for you to learn basic knowledge about Arduino.
2. With an elaborately-written user manual, providing more details, clear breadboard images and schematic diagrams, and thorough wiring descriptions so you can connect the components easily. (You can download the PDF and code after the purchase)
3. Code files are provided for view and download in the LEARN section on our website.

Link for the Manual: Manual
Link for the Code: Code

Description
Product Details

Description

MAIN FEATURES

1. 35 projects and 37 modules for you to learn basic knowledge about Arduino.
2. With an elaborately-written user manual, providing more details, clear breadboard images and schematic diagrams, and a thorough wiring descriptions so you can connect the components easily. (You can download the PDF and code after the purchase)
3. Code files are provided for view and download in the LEARN section on our website.

Link for the Manual: Manual
Link for the Code: Code

This kit is different from other kits. All the components in this kit are provided in the form of modules that integrate some necessary components, such as a comparator, resistor, capacitor, and so on. Therefore it is convenient for circuit connection. They will output signals directly by connecting for Arduino boards. The kit includes all kinds of funny and completed modules for Arduino fans. It can help you "control" the physical world with sensors.

Note:
You need to solder the pin headers provided with the kit onto the LCD1602

35 Experiments with Modules (You can download the PDF and code after the purchase)

Lesson 1 Hall Sensor
Lesson 2 RGB LED
Lesson 3 Dual-color Common-Cathode LED
Lesson 4 Shock Switch
Lesson 5 Knock Sensor
Lesson 6 Infrared Transmitter
Lesson 7 Laser Transmitter
Lesson 8 Reed Switch
Lesson 9 Infrared-Receiver
Lesson 10 Analog Temperature Sensor
Lesson 11 Digital Temperature Sensor
Lesson 12 Buzzer
Lesson 13 Button Switch
Lesson 14 Photo-interrupter
Lesson 15 Tilt-Switch
Lesson 16 Mercury Switch
Lesson 17 Magic Cup
Lesson 18 DS18B20 Temperature Sensor
Lesson 19 Rotary Encoder
Lesson 20 7-Color Auto-flash LED
Lesson 21 Photoresistor Sensor
Lesson 22 Humiture Sensor
Lesson 23 Obstacle Avoidance Sensor
Lesson 24 Tracking Sensor
Lesson 25 Microphone Sensor
Lesson 26 Metal Touch Sensor
Lesson 27 Flame Sensor
Lesson 28 Relay Module
Lesson 29 Joystick PS2
Lesson 30 MQ-2 Gas Sensor
Lesson 31 Password Lock
Lesson 32 Lie Detector
Lesson 33 Fire Alarm
Lesson 34 Thermostatic Water Tank System
Lesson 35 Intelligent Environment Monitoring

Package Included
Name	ID
1 x Arduino Uno R3	RBD-2335
2 x Analog Hall Sensor	RBD-2071, RBD-2072
1 x Switch Hall Sensor	RBD-2073
2 x RGB LED	RBD-1367, RBD-2102
2 x Dual-color Common-Cathode LED	RBD-2076, RBD-2077
1 x Shock switch	RBD-2078
1 x Knock sensor	RBD-0352
1 x Infrared transmitter	RBD-2079
1 x Laser Transmitter	RBD-1863
1 x Reed switch	RBD-2080
1 x Mini Reed	RBD-2081
1 x Infrared-receiver	RBD-2082
1 x Analog-temperature sensor	RBD-2083
1 x Digital-temperature sensor	RBD-2084
1 x Active Buzzer	RBD-1738
1 x Passive Buzzer	RBD-2085
1 x Button Switch	RBD-2086
1 x Photo-interrupter	RBD-2087
1 x Tilt-switch module	RBD-2088
1 x Mercury switch module	RBD-2089
2 x Magic Cup	RBD-2090
1 x DS18B20 Temperature Sensor	RBD-2091
1 x Rotary Encoder module	RBD-2041
1 x 7-colour Auto-flash LED module	RBD-2092
1 x Photoresistor Sensor	RBD-2093
1 x Humiture Sensor	RBD-2094
1 x Obstacle Avoidance Sensor	RBD-2420
1 x Tracking Sensor	RBD-2763
1 x Microphone Sensor	RBD-2097
1 x High-sensitive Voice Sensor	RBD-2098
1 x Metal Touch Sensor	RBD-2099
1 x Flame Sensor	RBD-2100
1 x Relay module	RBD-2074
1 x Joystick PS2	RBD-0393
1 x MQ-2 Gas Sensor	RBD-2075
1 x LCD1602	RBD-1164
1 x Keypad (4x4)	RBD-0986
1 x Remote controller	RBD-2103
1 x Potentiometer (250k Ohm)	RBD-2101
1 x Resistor (470k Ohm)	RBD-0766
1 x Breadboard	RBD-0120
40 x Jumper wire (Male to Female)	RBD-0031
20 x Jumper wire (Male to Male)	RBD-2639
1 x PDF & Code Download	ask@roboticsbd.com

CONTENTS

1 x Arduino Uno R3
1 x PDF & Code Download
2 x Analog Hall Sensor
1 x Switch Hall Sensor
2 x RGB LED
2 x Dual-color Common-Cathode LED
1 x Shock switch
1 x Knock sensor
1 x Infrared transmitter
1 x Laser Transmitter
1 x Reed switch
1 x Mini Reed
1 x Infrared-receiver
1 x Analog-temperature sensor
1 x Digital-temperature sensor
1 x Active Buzzer
1 x Passive Buzzer
1 x Button Switch
1 x Photo-interrupter
1 x Tilt-switch module
1 x Mercury switch module
2 x Magic Cup
1 x DS18B20 Temperature Sensor
1 x Rotary Encoder module
1 x 7-colour Auto-flash LED module
1 x Photoresistor Sensor
1 x Humiture Sensor
1 x Obstacle Avoidance Sensor
1 x Tracking Sensor
1 x Microphone Sensor
1 x High-sensitive Voice Sensor
1 x Metal Touch Sensor
1 x Flame Sensor
1 x Relay module
1 x Joystick PS2
1 x MQ-2 Gas Sensor
1 x LCD1602
1 x Keypad (4x4)
1 x Remote controller
1 x Potentiometer (250k Ohm)
1 x Resistor (470k Ohm)
1 x Breadboard
40 x Jumper wire (Male to Female)
20 x Jumper wire (Male to Male)

Product Details

Reference RBD-2066

In stock 8 Items

Specific References

EAN13: 2066
