PIC Mini System Development Board - Microchip PIC16F877A

Reference RBD-3476

PIC Mini System Development Board PIC16F877A for embedded learning and prototyping
Dual power input: USB or 12V DC external supply
Built-in MAX3232 for reliable RS232 serial communication
Supports 1602 & 12864 LCD modules and DS18B20 sensors
Integrated IR receiver and 8-bit LED experiment module
Dedicated ICSP port for easy programming and debugging

Description
Product Details

Description

The PIC Mini System Development Board PIC16F877A is a compact and beginner-friendly platform designed for learning, prototyping, and embedded system development. Built around the reliable Microchip PIC16F877A microcontroller, this board provides direct access to all I/O ports and integrates essential peripherals for hands-on experimentation. It supports both USB and 12V DC power input, ensuring flexible operation in lab or classroom environments. The onboard MAX3232 chip enables smooth RS232 communication, while built-in modules such as LED indicators, IR receiver, DS18B20 temperature interfaces, and LCD connectors make project development faster and more practical. A dedicated ICSP interface allows convenient programming using PICKit2, ICD2, K149, or K150 programmers. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dual Power Flexibility – Operate using USB or external 12V DC input based on project needs.
Integrated RS232 Communication – Built-in MAX3232 ensures stable serial data transfer.
Complete I/O Access – All CPU pins, VCC, 3.3V, and GND are externally accessible for easy expansion.
LCD Display Support – Compatible with 1602 alphanumeric and 12864 graphical LCD modules.
Temperature Experiment Ready – Two DS18B20 interfaces simplify sensor-based projects.
Infrared Remote Control Interface – Built-in IR receiver enables remote-based applications.
ICSP Programming Port – Fast and reliable firmware uploading and debugging.
User Interaction Components – Includes 4 push buttons, reset button, and LED module for interactive experiments.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Embedded Systems Learning – Ideal for students practicing PIC programming.
Sensor-Based Experiments – Perform temperature monitoring and IR control demonstrations.
Serial Communication Projects – Test and analyze RS232-based communication systems.
LCD Interfacing Practice – Develop both text and graphical display applications.
Prototype Development – Build and test microcontroller-based embedded solutions quickly.
Educational Lab Training – Suitable for academic institutions and training centers.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Name	PIC Mini System Development Board – PIC16F877A
Microcontroller	Microchip PIC16F877A
Operating Voltage	5V / 3.3V
Power Supply	USB or 12V DC External
Communication	RS232 via MAX3232
Clock Source	6 MHz Crystal Oscillator
LCD Support	1602 LCD, 12864 Graphical LCD
Temperature Interface	2 × DS18B20 Ports
Infrared Receiver	Integrated IR Module
Programming Interface	ICSP (PICKit2, ICD2, K149, K150 Compatible)
User Inputs	4 Independent Buttons
Reset	Manual Reset Button
GPIO Access	Full External Access to I/O Pins
Board Dimensions	Compact Training Board
Shipment Weight	0.0153 kg
Shipment Dimensions	13 × 12 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

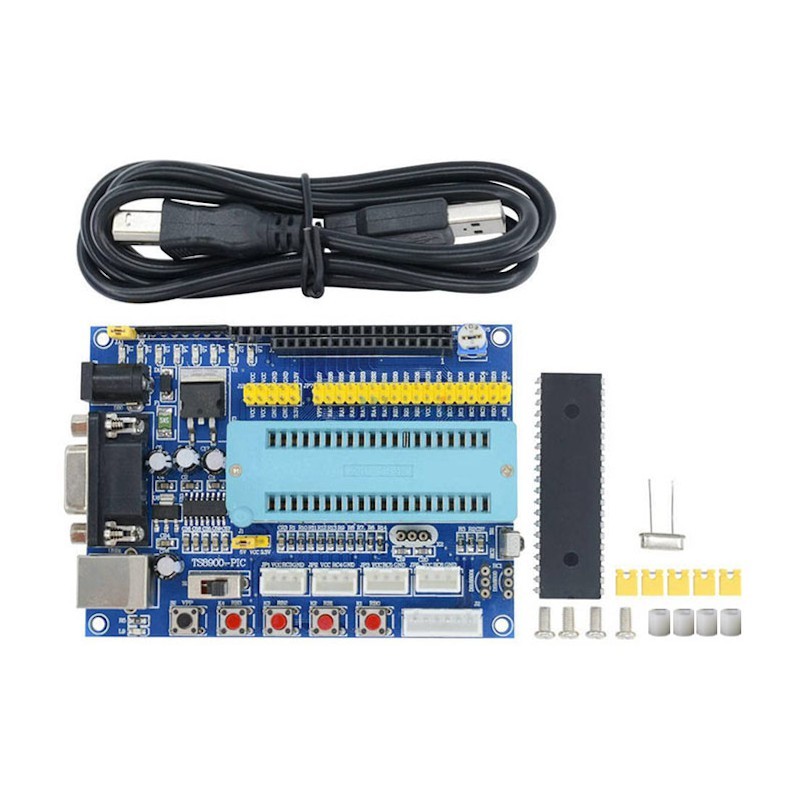

Package Includes:

1 x PIC Mini System Development Board - Microchip PIC16F877A

1 x USB A to USB B Cable (39 Inch, Black)

4 x Screws

4 x Plastic Hex Spacers

4 x Computer Short Jumpers (Yellow)

1 x 6 MHz Crystal Oscillator
