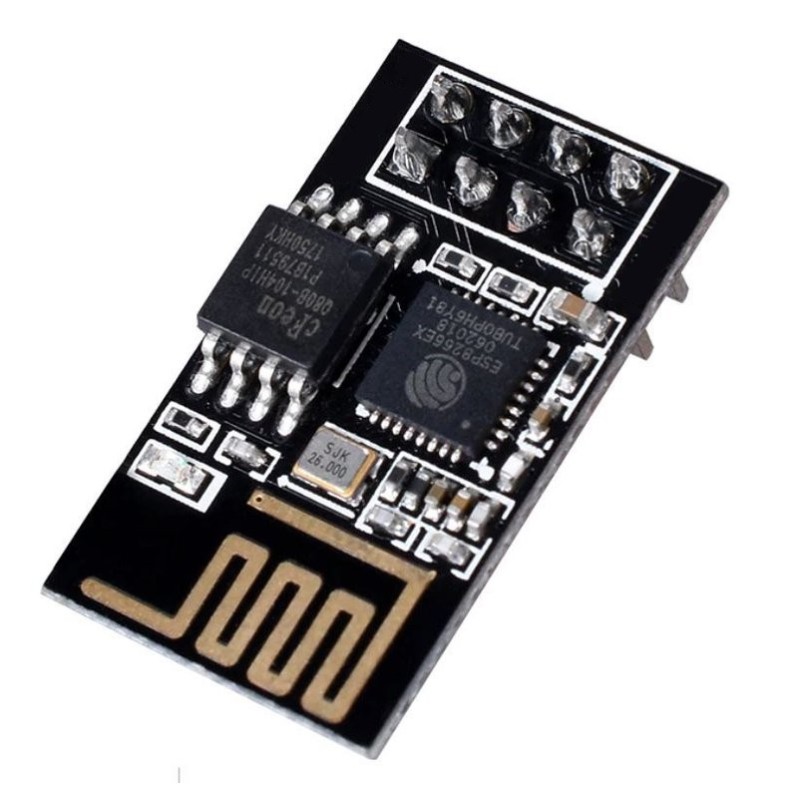

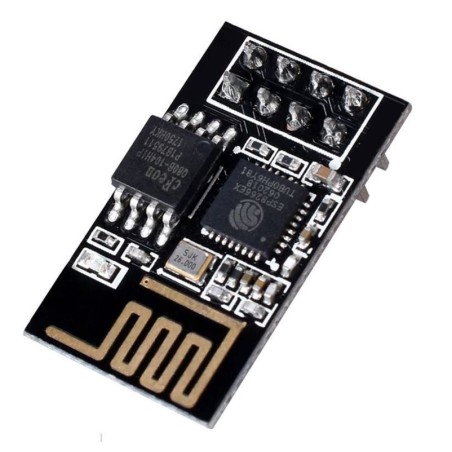

The ESP-01S ESP8266 Serial Wi-Fi Transceiver Module is a compact and cost-effective wireless solution designed to add Wi-Fi connectivity to your embedded systems and IoT applications. Built on the powerful ESP8266 chipset, it includes an integrated TCP/IP protocol stack, making it a complete standalone network controller. The 32-bit RISC processor runs at 80 or 160 MHz, offering strong processing capabilities while maintaining low power consumption. With multiple communication interfaces like UART, SPI, I²C, and GPIO, it can easily connect to sensors, actuators, and other peripherals. The module supports IEEE 802.11 b/g/n standards and security protocols (WEP, WPA, WPA2), ensuring reliable wireless communication. Ideal for smart home automation, IoT monitoring, and embedded web servers, the ESP-01S is widely compatible with microcontrollers such as Arduino and STM32. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High-Performance Processor: L106 32-bit RISC core running at 80/160 MHz.
Integrated Wi-Fi: IEEE 802.11 b/g/n with complete TCP/IP protocol stack.
Versatile Interfaces: Supports UART, SPI, I²C, I²S, and GPIO for various applications.
Low Power Consumption: Optimized for energy-efficient IoT and battery-powered systems.
Built-in Flash Memory: Includes 1Mb external QSPI flash for firmware and data.
Compact Design: Easy integration into compact embedded designs.
Secure Connectivity: Supports WEP, WPA/WPA2 authentication, or open networks.
Onboard LEDs: Power and status indicators for monitoring module activity.
Wide Compatibility: Works with Arduino, STM32, ESP32, and other microcontrollers.
Affordable IoT Solution: Perfect balance of performance, size, and cost for wireless projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
IoT Projects: Enable Wi-Fi communication for smart home and automation systems.
Wireless Data Logging: Send sensor data to servers or cloud platforms.
Embedded Web Servers: Host web pages or dashboards directly from the module.
Wi-Fi Control Systems: Build remote-controlled devices and wireless relays.
Smart Sensors: Integrate with temperature, humidity, or motion sensors for monitoring.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Processor | L106 32-bit RISC microprocessor |
| Clock Speed | 80 MHz / 160 MHz |
| Memory | 32 KiB instruction RAM, 80 KiB user-data RAM, 1Mb external flash |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Security | WEP, WPA/WPA2, or open |
| Interfaces | UART, SPI, I²C (software), I²S, GPIO |
| GPIO Pins | 17 |
| ADC | 10-bit |
| Operating Voltage | 3.3V |
| Power Consumption | Low power (optimized for IoT) |
| LEDs | Power LED, Status LED (GPIO1) |
| Dimensions | 24mm × 14mm × 3mm (approx.) |
| Compatible With | Arduino, ESP32, STM32, Raspberry Pi |
| Applications | IoT, home automation, data logging, embedded Wi-Fi systems |
| Shipment Weight | 0.0025 kg |
| Shipment Dimensions | 3 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Pinout Description:
- VCC: Power supply (3.3V).
- GND: Ground.
- TX: Transmit data (connected to the status LED).
- RX: Receive data.
- CH_PD: Chip power-down control (active high).
- RST: Reset (active low).
- GPIO0: General-purpose I/O 0.
- GPIO2: General-purpose I/O 2.
Package Includes:
1 x ESP-01S ESP8266 Serial WIFI Wireless Transceiver Module
