Product Description:

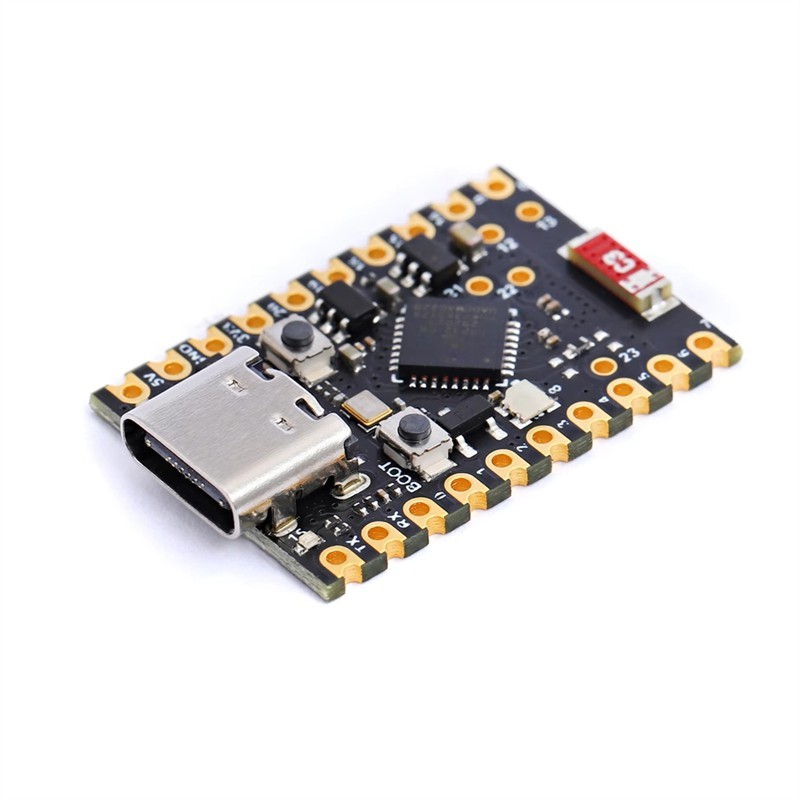

The ESP32-C6 SuperMini Development Board is a compact, efficient, and next-generation IoT controller built around the ESP32-C6 microcontroller. Featuring a RISC-V 32-bit single-core processor running at up to 160 MHz, this board delivers reliable performance for modern IoT, automation, and wireless projects.
Equipped with WiFi 6 (802.11ax) and Bluetooth 5 LE + Mesh, the ESP32-C6 SuperMini offers faster connectivity, lower latency, and improved power efficiency compared to earlier ESP32 models. It includes 512 KB high-performance SRAM, 16 KB low-power SRAM, and 4 MB Flash, ensuring smooth execution even for complex applications.
Designed with makers and embedded engineers in mind, it features a USB Type-C interface for easy programming and power, along with a stamp-hole PCB layout for direct soldering into custom boards. Despite its ultra-small footprint, the ESP32-C6 SuperMini provides multiple I/O pins and versatile communication interfaces including UART, I²C, SPI, ADC, and PWM, making it a perfect fit for connected, low-power devices.
Key Features:
Based on ESP32-C6 microcontroller
RISC-V 32-bit single-core CPU up to 160 MHz
WiFi 6 (IEEE 802.11ax), 2.4 GHz with 40 MHz bandwidth
Bluetooth 5 LE + Mesh support
Ultra-low power consumption with multiple sleep modes
Compact SuperMini size ideal for embedded designs
USB Type-C interface for easy programming and power supply
Stamp-hole design for direct PCB soldering
4 MB Flash and 512 KB SRAM + 16 KB low-power SRAM
Versatile I/O: UART, SPI, I²C, ADC, PWM
Technical Specifications:
| Parameter | Specification |
|---|
| Microcontroller | ESP32-C6 (RISC-V 32-bit CPU) |
| CPU Frequency | Up to 160 MHz |
| Flash Memory | 4 MB |
| SRAM | 512 KB (high-performance) + 16 KB (low-power) |
| WiFi | IEEE 802.11ax (WiFi 6, 2.4 GHz) |
| Bluetooth | Bluetooth 5 LE + Mesh |
| Interface Ports | UART, SPI, I²C |
| Analog Inputs (ADC) | 6 channels |
| Digital I/O Pins | 11 pins |
| PWM Pins | 11 pins |
| External Interrupt Pins | 22 pins |
| Power Supply | 3.3 V (USB Type-C input supported) |
| Operating Frequency Band | 2.4 GHz |
| Dimensions | Ultra-compact SuperMini format |
Applications:
IoT Devices & Home Automation
Wireless Sensor Networks
Smart Home Controllers
BLE + WiFi Gateway Modules
Wearable & Portable Electronics
DIY Smart Projects and Prototyping
Package Includes:
Why Choose ESP32-C6 SuperMini?
The ESP32-C6 SuperMini brings the efficiency of RISC-V architecture, the speed of WiFi 6, and the versatility of Bluetooth 5 LE into a compact, maker-friendly board. Whether you’re prototyping smart home devices or building production-grade IoT systems, this board provides the perfect balance of power, size, and connectivity.
