    LILYGO TTGO LoRa32 868/915Mhz ESP32 OLED 0.96 Inch Wireless Module

    RBD-4179

    • LILYGO TTGO
    • Model: 915MHZ CH9102F  T3_V1.6.1
    • LoRa32 V2.1_1.6 Version 915Mhz
    • ESP32 LoRa
    • OLED 0.96 Inch
    • SD Card
    • Bluetooth
    • WIFI
    • Wireless Module
    • ESP-32 SMA

    BDT 4,400
    BDT 4,400 BDT 4,400 BDT 4,400 BDT 4,400
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 4,400 Tax excluded
    BDT 4,400 Tax included
    BDT 0 Tax
    BDT 4,400 Tax excluded
    BDT 0 Tax
    BDT 4,400 Tax included
    Quantity
    Last items in stock
    1 Item

    Only 1 item left in stock
    Description

    LILYGO TTGO Model 915MHZ CH9102F  T3_V1.6.1 is widely used in industrial automation, data lines and all kinds of factory production equipment. With Bluetooth module, the data can be transmitted to the back through the OLED screen. Wi-Fi module provides you with a high speed solution to save the network quality and protect your equipment, making it ideal for many years to come. The Bluetooth module with a built-in microphone is compatible for all wireless systems, including iPhone, iPad, iPod touch, android phone and pc. The module can be used for wireless routers, access control cards, access control switches, routers and security systems. Allows you to add a serial number in the main circuit and save time on other electronic components. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. TTGO LoRa V2.1 added the SMA and IP5306 to the board
    2. SMA antenna can enhance signal transmission.

    Digital RSSI function:

    1. Automatic frequency correction
    2. Automatic gain control
    3. Fast wake-up and frequency hopping
    4. Highly configurable data packet handler
    5. SMA Antenna
    6. IP5306

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Working voltage1.8~3.7v
    Acceptable current10~14mA
    Transmit current

    120mA@+20dBm

    90mA@+17dBm

    29mA@+13dBm

    Operating frequency915Mhz
    Transmit power=+20dBm
    Receive sensitivity-139dBm@LoRa &62.5Khz&SF=12&146bps -136dBm@LoRa &125Khz&SF=12&293bps -118dBm@LoRa &125Khz&SF=6&9380bps -123dBm@FSK&5Khz&1.2Kbps
    Frequency error=+/-15KHz
    FIFO space64Byte
    Data rate

    1.2K~300Kbps@FSK

    0.018K~37.5Kbps@LoRa

    Modulation ModeFSK,GFSK,MSK,GMSK,LoRa TM，OOK
    Interface formSPI
    Sleep current0.2uA@SLEEP 1.5uA@IDLE
    Operating temperature-40℃- +85℃
    Shipment Weight0.020 kg
    Shipment Dimensions12 × 8 × 2.5 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

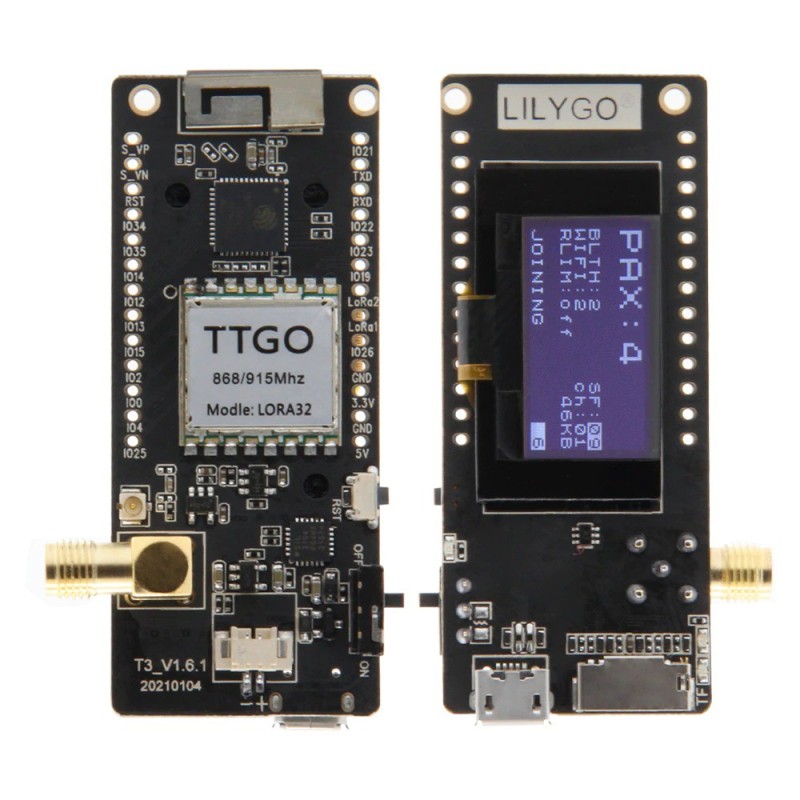

    Pin Description:

    Documentation:

    1. Xinyuan-LilyGO TTGO-LoRa-Series Github Repository
    2. LilyGO ESP32-Paxcounter Github Repository

    Package Includes:

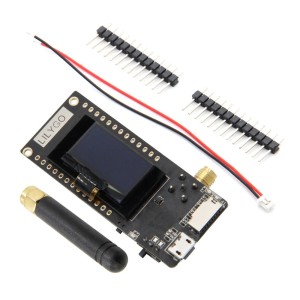

    1 x LILYGO TTGO LoRa32 915Mhz ESP32 OLED 0.96 Inch Wireless Module.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-4179
    1 Item

    Specific References

    EAN13
    4179
