Silicon Transmission Technology's SX1278 module (SX1278ZTR4-GC) has been widely used by thermostat manufacturers due to its small size, low cost, and reliable quality. At the same time, Silicon Transmission Technology provides high-quality technical services, allowing manufacturers to quickly get started and complete development. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Industrial-grade active crystal oscillator, suitable for industrial sites with complex environments
- Using spread spectrum technology communication, the same urban and industrial application environment, the performance is better than the radio frequency products that use traditional modulation methods (FSK, 2-FSK, 4-FSK, GFSK, PSK, ASK, OOK, etc.). The advantages are particularly obvious in a noise environment (near strong interference sources such as in the electric meter, near the motor, and natural shielding environments such as elevator shafts, mines, and basements)
- High confidentiality, using LoRa modulation method, traditional wireless equipment cannot obtain and analyze it
- High concealment, normal communication is still possible when the average power in the band is lower than the noise floor
- Adopt LoRa modulation method, compatible with and support FSK, GFSK, OOK traditional modulation method at the same time
- Support hardware frequency hopping (FHSS), combined with LoRa spread spectrum technology, can achieve superior communication concealment and security
- Low power consumption: receiving current ≤13mA; sleep current ≤2uA; CAD function is provided, which separates calculation and signal reception, and further optimizes the power consumption of the wake-up window (calculated current is about half of the receiving current)
- SPI communication interface, can be directly connected to various single-chip computers, software programming is very convenient
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Working voltage: | 2.4V-3.7V |
| Working frequency band: | 410-525MHz |
| Transmitting power: | 19±1dBm(max) |
| Ultra-high receiving sensitivity: | -136±1dBm(@250bps) |
| Ultra-long effective communication distance: | 5Km@250bps |
| Working temperature: | -40-+80 ℃ |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

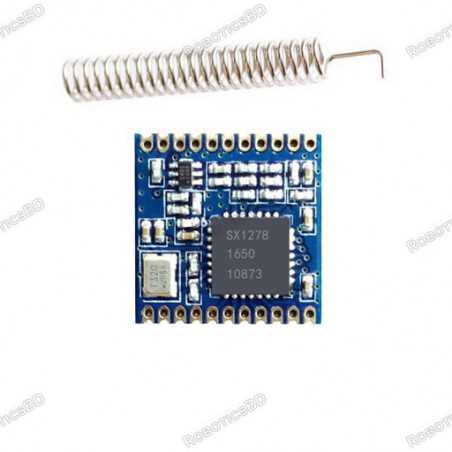

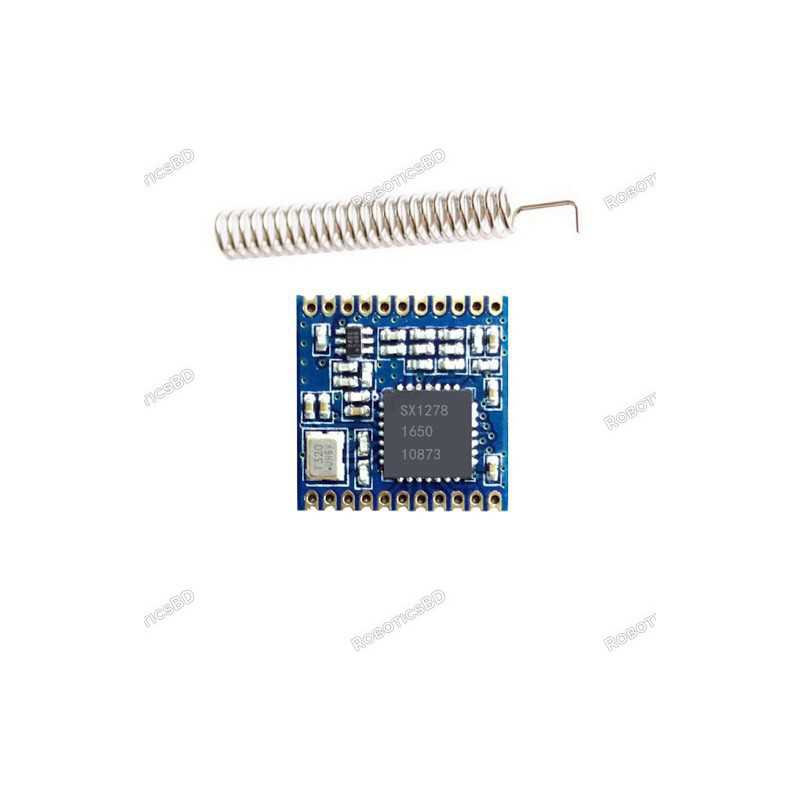

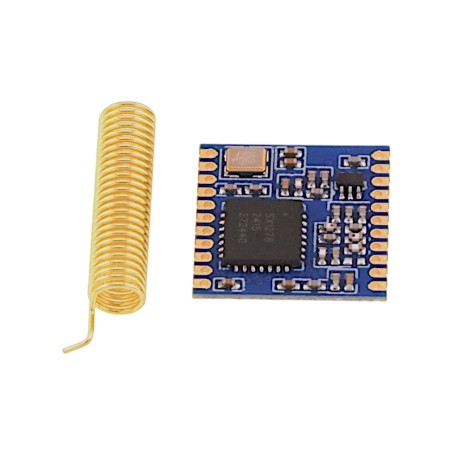

1 x LoRa SX1278 Long Range RF Wireless Module.
