This ESP32-C5 development board is a high-performance wireless MCU platform supporting dual-band WiFi 6 (2.4 GHz & 5 GHz), Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee/Thread). It is suitable for next-generation IoT, smart home, industrial control, and wireless gateway applications.
This ESP32-C5 development board is a high-performance wireless MCU platform supporting dual-band WiFi 6 (2.4 GHz & 5 GHz), Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee/Thread). It is suitable for next-generation IoT, smart home, industrial control, and wireless gateway applications.
The board provides rich GPIO, USB programming/debugging, and low-power features, making it ideal for prototyping and embedded development.
ESP32-C5 SoC (32-bit RISC-V, up to 240 MHz)
Dual-band WiFi 6: 2.4 GHz & 5 GHz
Bluetooth 5 (LE)
IEEE 802.15.4: Zigbee & Thread support
USB Serial / JTAG for programming and debugging
Multiple peripherals: SPI, UART, I²C, ADC, PWM, CAN-FD, RMT
Low-power modes for energy-efficient designs

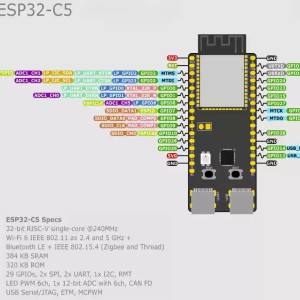

CPU: Single-core 32-bit RISC-V @ up to 240 MHz
SRAM: 384 KB
ROM: 320 KB
GPIOs: Up to 29
ADC: 12-bit, multi-channel
PWM: Multiple channels
USB: Native USB for programming/debug
Smart home & Matter devices
IoT gateways and controllers
Wireless sensors & automation
Zigbee / Thread / WiFi 6 hybrid devices
Embedded networking projects
This product uses a Third-Party Module.
It is compatible with ESP32-C5-DevKitC-1 in form factor and functionality, but it is not an official Espressif development board.

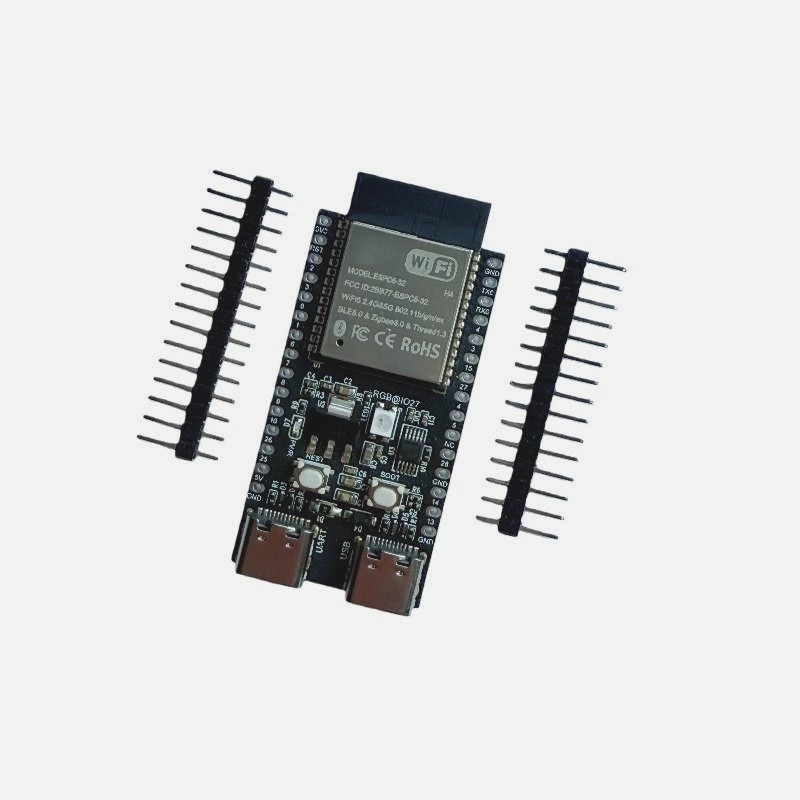

1 × ESP32-C5 Dual-Band WiFi 6 Development Board
A powerful and flexible choice for developers exploring WiFi 6 + Bluetooth 5 + Zigbee/Thread on the ESP32-C5 platform.
