Product Description:
The M5StickC Plus2 is a compact and powerful IoT development board built around the ESP32-PICO-V3-02 dual-core processor. Designed for creativity and portability, it integrates Wi-Fi and Bluetooth connectivity, a 1.14-inch TFT LCD display, microphone, RTC, IMU sensor, and built-in rechargeable battery—all within a pocket-sized enclosure. The M5StickC Plus2 makes rapid prototyping for IoT, wearable tech, and STEM projects effortless, offering flexible programming through Arduino, MicroPython, UIFlow, and .NET nanoFramework.
Whether you're a maker, educator, or developer, this tiny device is an all-in-one solution for smart project development, data logging, and wireless sensor applications.
Key Features:
Powered by ESP32-PICO-V3-02 dual-core processor, up to 240MHz
Integrated Wi-Fi and Bluetooth for IoT connectivity
1.14-inch 135×240 Color TFT LCD (ST7789v2) for visual feedback
Built-in sensors: 6-Axis IMU, microphone, RTC, IR transmitter
3 custom buttons for user control and input
Built-in 120mAh Li-Poly battery with charging circuit
USB Type-C interface for programming and power
GROVE port (I2C/UART) for easy sensor expansion
Compatible with Arduino, UIFlow, MicroPython, and more

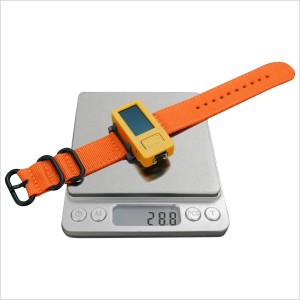

Compact and wearable design with mounting accessories
Technical Specifications:
| Main Control Resources | Parameter |
|---|
| ESP32 | ESP32-PICO-V3-02, dual-core 240MHz, supports Wi-Fi & Bluetooth |
| PSRAM | 2 MB |
| Flash | 8 MB |
| Input Voltage | 5V @ 500mA |
| Interfaces | Type-C × 1, GROVE (I2C + UART) × 1 |
| LCD Screen | 1.14-inch, 135×240 Color TFT LCD, ST7789v2 |
| Microphone | SPM1423 |
| Buttons | Custom Buttons × 3 |
How to Use:
Install the required USB driver:
Connect the device via USB Type-C cable.
Program using Arduino IDE, UIFlow, or MicroPython.
If the screen remains black, reflash the factory firmware using M5Stack’s official guide.
Applications:
IoT & Smart Home Prototyping
Wearable Devices and Smart Accessories
Sensor Data Collection and Logging
Wireless Control and Automation Projects
Educational and STEM Learning Kits

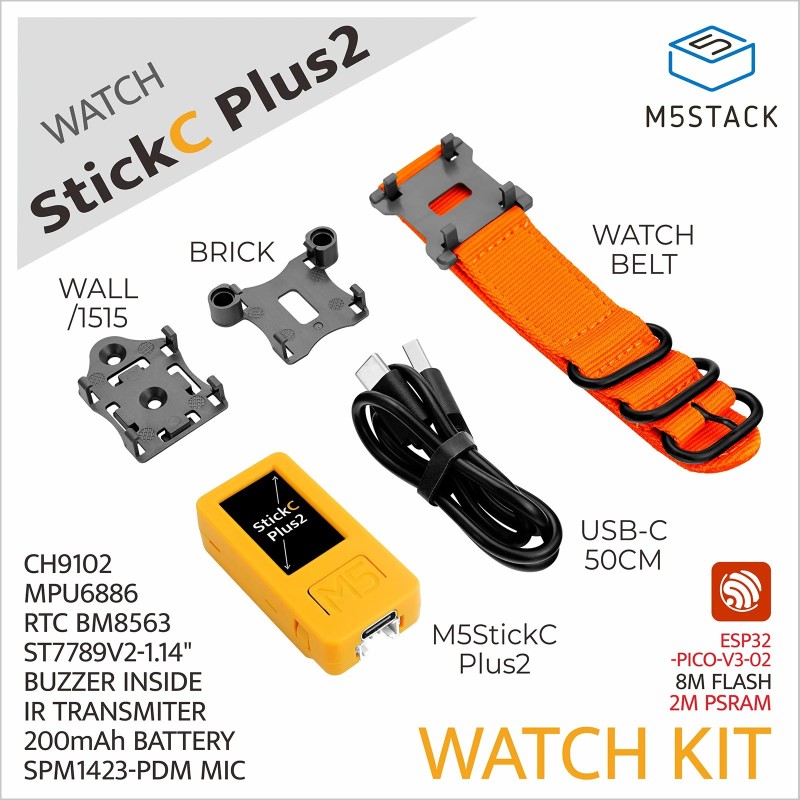

Package Includes:
Why Choose M5StickC Plus2?
The M5StickC Plus2 combines the power of the ESP32 with an all-in-one, compact design ideal for rapid IoT development. It’s fully compatible with the M5Stack ecosystem, supports multiple programming environments, and includes everything you need to start building interactive and connected projects right out of the box.
Get started with the M5StickC Plus2 today — create, connect, and control your world with endless IoT possibilities!
