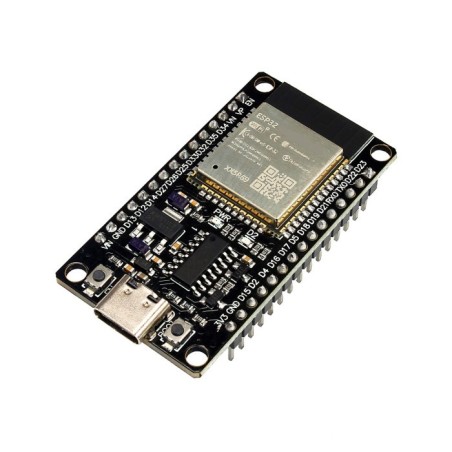

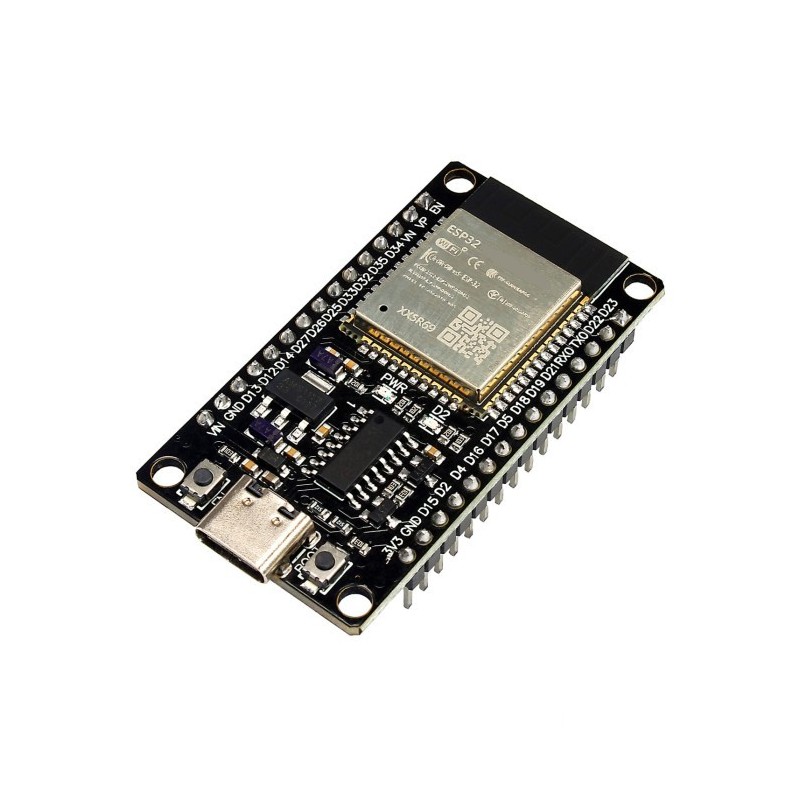

ESP32 Dev Board CH340 USB-C

Reference RBD-2266

Versatile and powerful development board for IoT and embedded systems projects.
USB Type-C port for reversible plug orientation and easy connection to computer or other devices.
Built-in Wi-Fi and Bluetooth module for wireless connectivity.
Arduino IDE compatibility for easy code writing and uploading.
Suitable for a wide range of applications, including home automation, robotics, and sensor networks.

Description
Product Details

Description

The ESP32 Dev Board CH340 - USB-C is a type of development board designed for use with the ESP32 microcontroller, which is a popular choice for IoT and embedded systems projects. The CH340 refers to the USB to serial converter chip used on the board, which allows for communication with the ESP32 via a USB connection.

The board features a USB Type-C port, which is used to connect the board to a computer or other device for programming and debugging. The USB Type-C connector provides a reversible plug orientation, which can make it easier to connect the board without worrying about which way the plug is oriented.

The board also includes a variety of other features, including a built-in Wi-Fi and Bluetooth module for wireless connectivity, a micro-USB port for power, and a series of headers for connecting various sensors, modules, and other components.

The ESP32 Dev Board CH340 - USB-C is compatible with the Arduino IDE, which makes it easy to write and upload code to the board. It can be used for a wide range of applications, including home automation, robotics, and sensor networks.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

USB Type-C port: The board features a USB Type-C port for easy connectivity and data transfer.
Built-in Wi-Fi and Bluetooth: The board has a built-in Wi-Fi and Bluetooth module for wireless connectivity.
Low power consumption: The ESP32 chip on the board is designed for low power operation, making it a good choice for battery-powered projects.
Arduino-compatible: The board can be programmed using the Arduino IDE, which is a popular platform for building embedded systems.
Extensive I/O: The board has a wide range of I/O pins and headers for connecting sensors, motors, and other components.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

IoT devices: The ESP32 Dev Board CH340 - USB-C is commonly used for IoT projects that require wireless connectivity and low-power operation.
Home automation: The board can be used to build home automation systems that allow you to control your lights, thermostat, and other appliances using a mobile app or web interface.
Robotics: The ESP32 Dev Board CH340 - USB-C can be used to control motors, sensors, and other components in robotic projects.
Wearable technology: The board's low power consumption and small form factor make it a good choice for wearable projects.
Smart agriculture: The board can be used to build systems for monitoring soil moisture, temperature, and other environmental factors in agricultural settings.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Microprocessor	32-bit 240 MHz
Supply Voltage	5V
Wi-Fi	2.4 GHz
Bluetooth	4.2
SPI Flash	4 MByte (32Mbit)
ROM	448 KB
SRAM	520 KB
SRAM in RTC	16 KB
Antenna	PCB
Power	USB Type-C Connector, or via pin header
Buttons	Reset and User/Firmware
LED	User and Power
USB Type-C connector	Yes
Virtual USB port	CH340
Module	ESP-WROOM-32
Dimensions	51.5 x 28.5mm
Shipment Weight	0.010 kg
Shipment Dimensions	11 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x ESP32 Dev Board CH340 - USB-C
