Product Description

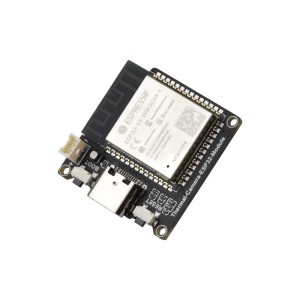

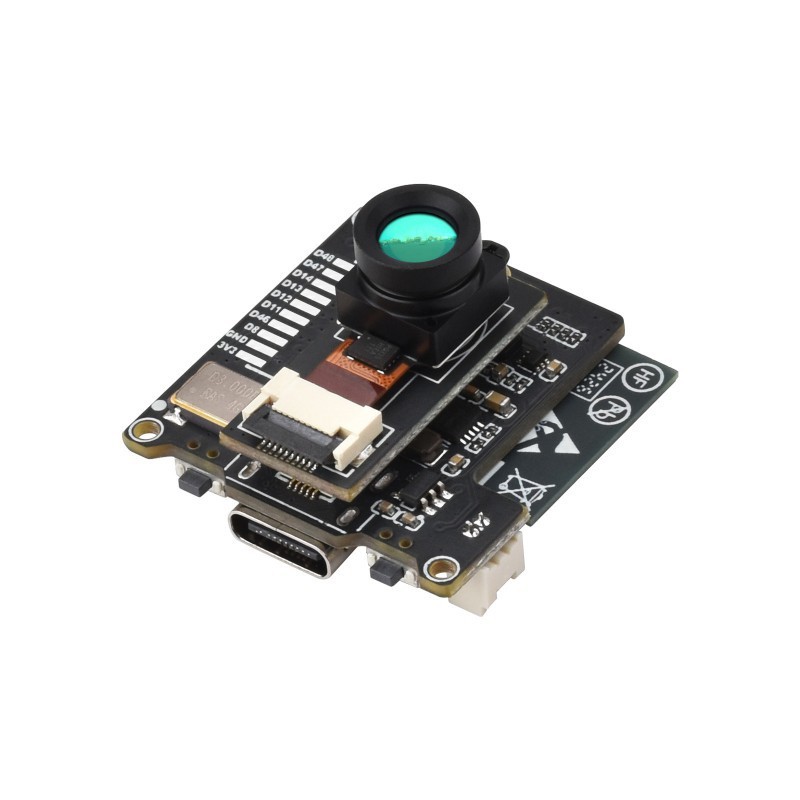

The Thermal-45 ESP32-S3 IR Imaging Camera Module is a compact wireless thermal camera designed around the ESP32-S3-WROOM-1 dual-core processor. Equipped with an 80×62 hybrid IR sensor (microbolometer + thermopile), this module captures infrared radiation from objects in view and converts it into thermal temperature data and real-time thermal images.
This version features a 45-degree FOV (Field of View), offering a narrower, more focused imaging area ideal for long-distance thermal detection, equipment monitoring, industrial diagnostics, and embedded thermal sensing applications.
It includes onboard Li-ion battery charging circuitry, Type-C connectivity, RGB status LED, and rich expansion interfaces, making it ideal for developers, hobbyists, and embedded system designers.
Key Features
• 45° narrow-angle thermal imaging lens
• ESP32-S3-WROOM-1 dual-core processor up to 240 MHz
• 80×62 pixel IR array using hybrid microbolometer and thermopile technology
• Integrated WiFi 2.4 GHz and Bluetooth 5 LE
• 8MB PSRAM and 16MB Flash for fast data processing
• Type-C USB interface for power and data
• Onboard Lithium battery charge/discharge header (battery not included)
• RGB status LED for real-time module feedback
• 2×10 solder pads including GPIO, I2C, and UART
• Supports TCP transmission, WiFi AP/STA preview modes, and Windows preview software
• Supports Bluetooth APP for easy parameter configuration
• Compact, lightweight design ideal for embedded applications
• Full ESP-IDF SDK support
Technical Specifications
IR Resolution: 80 × 62 pixels
Lens FOV: 45°
Main Processor: ESP32-S3-WROOM-1
CPU: Xtensa LX7 dual-core, up to 240 MHz
Wireless: WiFi 802.11 b/g/n, Bluetooth 5 LE
Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash
USB Interface: Type-C
Battery Support: 3.7V Li-ion via MX1.25 header
Interfaces: 14 × GPIO, 1 × I2C, 1 × UART
Preview Support: TCP, WiFi AP/STA
Configuration: Bluetooth Android APP (settings only, no image stream)
Software Support: ESP-IDF
Dimensions: Compact modular design
Applications
• Industrial monitoring
• Predictive maintenance
• Home automation thermal sensing
• Electrical inspection
• Robotics and AI thermal detection
• Embedded thermal imaging projects
• Environmental temperature analysis
Package Includes
1 x ESP32-S3 IR Thermal Imaging Camera Module – 45° FOV
Battery not included
Why Choose This Version
• Offers a focused, narrow FOV for precise long-range thermal measurement
• Ideal for industrial and professional use
• High performance, compact and ready for embedded integration
ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, Options for 45° / 90° FOV
ESP32-S3 IR Thermal Imaging Camera
80×62 Pixels IR Array, Options for 45° / 90° FOV
Version Options
Thermal-45 Camera ESP32 Module
Basic version: 45° FOV
Thermal-90 Camera ESP32 Module
Wide angle version: 90° FOV
Features
This product is a wireless IR thermal imaging camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply.
Key features include:
- Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities
- Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, enhancing device compatibility and user convenience
- Onboard RGB LED indicator for real-time monitoring the operating status of the module
- Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time
- Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion
- Compact size design, more space-saving, making it ideal for embedded applications
Provides options for 45°/90° FOV
Meet the needs of different scenarios
image preview via PC software
Supports TCP communication and WiFi AP /STA preview modes, compatible with Windows systems
Parameters Configuration via Bluetooth APP
Provides an Android APP for easy configuration of module parameters
* The Bluetooth APP is only used for configuring parameters such as the module's IP and device name. It does not support viewing thermal images.
Supports battery power supply
Onboard 3.7V MX1.25 lithium battery recharge / discharge header for flexible power supply
* Note: the Lithium battery is NOT included.
Compact Size & Lightweight
Modular design, compact in size yet fully functional
Supports ESP-IDF
Comprehensive SDK, dev resources, and tutorials to help you easily get started
Application Scenarios
Pin Definition
What's On Board
Outline dimensions
