The SHTC3 Temperature & Humidity Sensor Module is a high-accuracy, ultra-low-power digital environmental sensor based on the Sensirion SHTC3 sensor IC. It provides reliable temperature and relative humidity measurements through a true I2C digital interface, making it simple to integrate into IoT, embedded, and low-power applications.
Product Description
The SHTC3 Temperature & Humidity Sensor Module is a high-accuracy, ultra-low-power digital environmental sensor based on the Sensirion SHTC3 sensor IC. It provides reliable temperature and relative humidity measurements through a true I2C digital interface, making it simple to integrate into IoT, embedded, and low-power applications.
This module is designed for fast response and minimal power consumption, with power-up and measurement completed in as little as 1 ms. Thanks to its factory calibration and NIST traceability, the SHTC3 ensures stable and repeatable measurements over long-term operation.

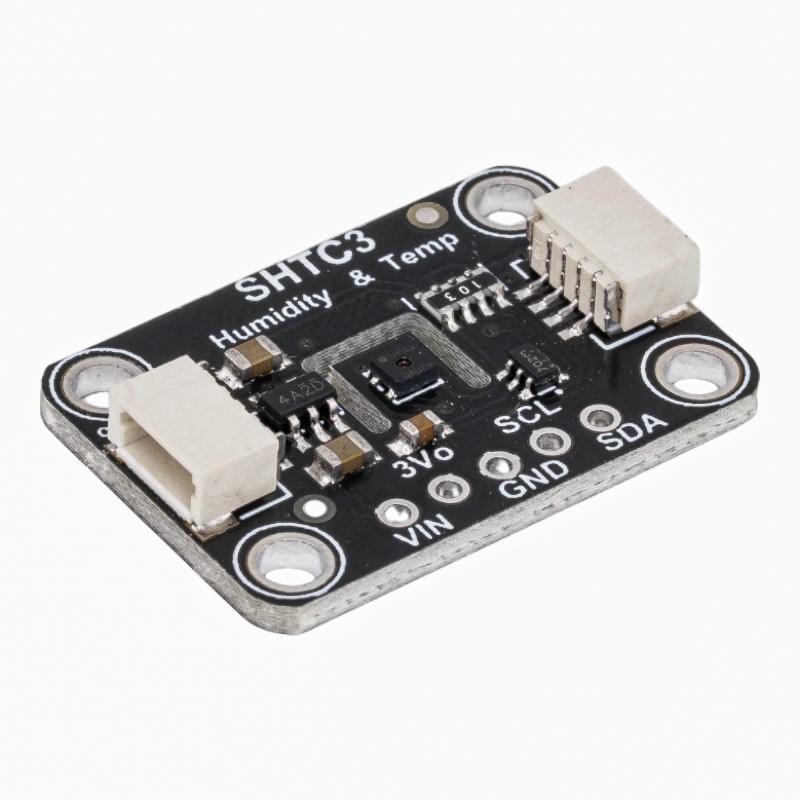

The board is equipped with a STEMMA QT / Qwiic compatible 4-pin JST-SH connector, allowing plug-and-play, solder-free connection to Arduino, Raspberry Pi, ESP32, STM32, and other I2C-enabled controllers. It also supports standard header pins for breadboard or custom wiring use.
Ultra-low power consumption, ideal for battery-powered devices
True digital I2C interface (no analog calibration required)
Fast startup and measurement time (≈ 1 ms)
Factory calibrated with NIST traceability
Compact, easy-to-integrate module design
STEMMA QT / Qwiic compatible for solder-free connections
Humidity Measurement Range: 0 to 100 %RH
Temperature Measurement Range: −40 °C to +125 °C
Typical Accuracy:
Humidity: ±2 %RH
Temperature: ±0.2 °C
Interface: I2C
I2C Address: 0x70
Power Consumption: Ultra-low (optimized for low-energy systems)
Power-up & Measurement Time: ~1 ms
Indoor environmental monitoring
Smart home and HVAC systems
Wearable and portable devices
IoT sensor nodes
Weather stations and data loggers
1 × SHTC3 Temperature & Humidity Sensor Module
Pin header (not soldered)
