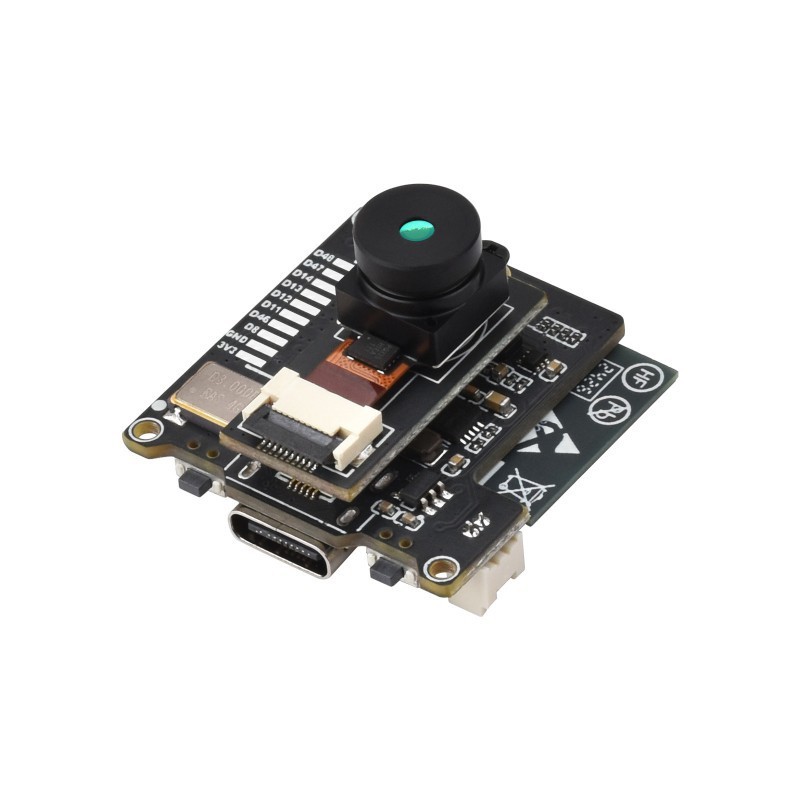

    ESP32-S3 Thermal Imaging Camera Module – 90° FOV

    RBD-3975
    Waveshare

    The Thermal-90 ESP32-S3 IR Imaging Camera Module is a wide-angle wireless thermal camera designed using the ESP32-S3-WROOM-1 processor and an 80×62 hybrid IR sensor. It captures thermal radiation and generates real-time surface temperature images, ideal for scenarios requiring broader coverage.

    SKU:30139
    Part No.:Thermal-90 Camera ESP32 Module
    Brand:Waveshare

    BDT 15,690
    BDT 15,690 BDT 15,690 BDT 15,690 BDT 15,690
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 15,690 Tax excluded
    BDT 15,690 Tax included
    BDT 0 Tax
    BDT 15,690 Tax excluded
    BDT 0 Tax
    BDT 15,690 Tax included
    Quantity
    Last items in stock
    1 Item

    Only 1 item left in stock
    Description

    Product Description

    The Thermal-90 ESP32-S3 IR Imaging Camera Module is a wide-angle wireless thermal camera designed using the ESP32-S3-WROOM-1 processor and an 80×62 hybrid IR sensor. It captures thermal radiation and generates real-time surface temperature images, ideal for scenarios requiring broader coverage.

    This version features a wide 90-degree FOV, offering a large-area thermal perspective suitable for room scanning, robotics, environmental monitoring, people detection, and multi-object thermal observation.
    With onboard Li-ion charging support, Type-C USB port, RGB status LED, and extensive I/O pads, it is a powerful solution for developers and embedded system integrators.

    Key Features

    • 90° wide-angle thermal imaging lens
    • ESP32-S3-WROOM-1 dual-core processor up to 240 MHz
    • 80×62 pixel IR hybrid array (microbolometer + thermopile)
    • 2.4GHz WiFi and Bluetooth 5 LE
    • 8MB PSRAM and 16MB Flash memory
    • Type-C power and data connection
    • Onboard Li-ion battery charging header (battery not included)
    • RGB status LED
    • 2×10 solder pads: 14 × GPIO, I2C, UART
    • Supports TCP thermal streaming, WiFi AP/STA preview, and Windows image viewer
    • Bluetooth Android APP for parameter configuration
    • Fully compatible with ESP-IDF SDK
    • Compact modular design for easy integration

    Technical Specifications

    IR Resolution: 80 × 62 pixels
    Lens FOV: 90° wide angle
    Processor: ESP32-S3-WROOM-1
    CPU: Xtensa LX7 dual-core, up to 240 MHz
    Wireless: WiFi 802.11 b/g/n, Bluetooth 5 LE
    Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash
    USB Port: Type-C
    Battery Input: 3.7V Lithium via MX1.25 header
    Interfaces: 14 GPIO, I2C, UART
    Preview: TCP, WiFi AP/STA, Windows software
    Configuration: Bluetooth Android APP
    SDK Support: ESP-IDF
    Design: Compact modular

    Applications

    • Robotics and autonomous navigation
    • Wide-room thermal scanning
    • Home automation and presence detection
    • Security and thermal monitoring
    • Environmental heat mapping
    • Smart agriculture and greenhouse monitoring
    • DIY thermal imaging projects

    Package Includes

    1 x ESP32-S3 IR Thermal Imaging Camera Module – 90° FOV
    Battery not included

    Why Choose This Version

    • The large 90° viewing angle makes it perfect for room-level scanning and multi-object detection
    • Ideal for robotics, automation, and environmental monitoring
    • Flexible, wide-coverage thermal imaging in a compact module
