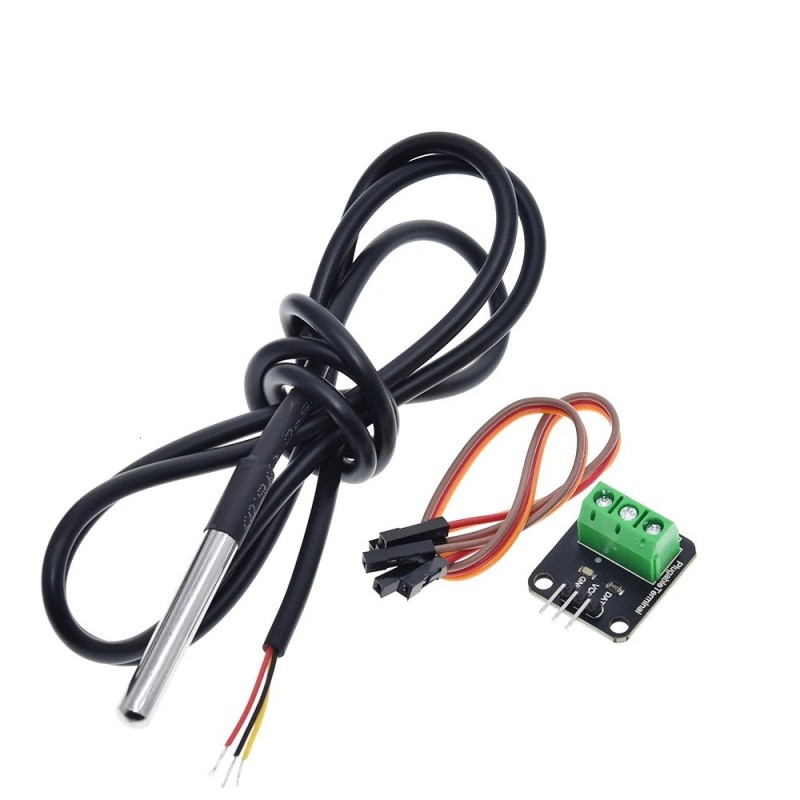

The DS18B20 Waterproof Temperature Sensor Kit is a digital temperature sensing solution designed for reliable operation in wet and harsh environments. It uses a stainless-steel probe with a sealed cable, making it suitable for soil, water tanks, and outdoor temperature monitoring.
Product Description
The DS18B20 Waterproof Temperature Sensor Kit is a digital temperature sensing solution designed for reliable operation in wet and harsh environments. It uses a stainless-steel probe with a sealed cable, making it suitable for soil, water tanks, and outdoor temperature monitoring.
This kit includes a plugable terminal adapter with the required pull-up resistor support, simplifying connection to microcontrollers and eliminating the need for additional external components.
Key Features
Waterproof stainless-steel probe suitable for wet and humid environments
Digital temperature sensing using 1-Wire communication
Adjustable resolution from 9-bit to 12-bit
Wide operating voltage range from 3.0V to 5.5V
Plugable terminal adapter for easy wiring and pull-up resistor support
Long cable design for flexible installation
Simple three-wire interface (DATA, VCC, GND)
Technical Specifications
Sensor Type: DS18B20
Communication Protocol: 1-Wire
Supply Voltage: 3.0V to 5.5V
Temperature Range: -55°C to +125°C
Maximum Continuous Cable Temperature: 85°C
Resolution: 9-bit to 12-bit (configurable)
Sensor Wire Colors:
Yellow: DATA
Red: VCC
Black: GND
Adapter Cable Colors:
Green: DATA
Red: VCC
Black: GND
How to Use
Connect the DS18B20 sensor to the plugable terminal adapter, then wire the adapter to a microcontroller. Power the sensor within the supported voltage range and read temperature data using the 1-Wire protocol.
Applications
Soil temperature monitoring
Hot water tank temperature control
Weather and environmental sensing
Aquarium and liquid temperature measurement
Embedded and IoT temperature monitoring projects
Package Includes
DS18B20 Waterproof Temperature Sensor × 1
Plugable Terminal Adapter × 1
3-Pin Connection Cable × 1
Why Choose
This kit combines a waterproof DS18B20 sensor with a convenient plugable terminal adapter, offering a reliable and easy-to-install temperature sensing solution without additional pull-up circuitry.
