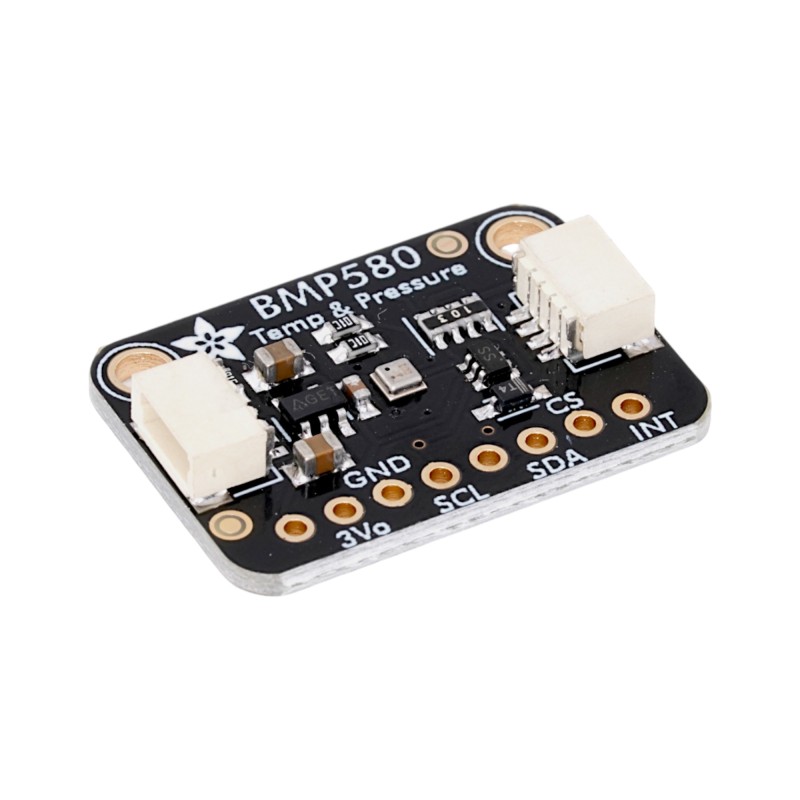

The BMP580 is a next-generation digital temperature and barometric pressure sensor from Bosch. It supports both I2C and SPI communication and provides high-resolution pressure data suitable for altitude estimation, environmental monitoring, and embedded sensing applications.
The BMP580 is a next-generation digital temperature and barometric pressure sensor from Bosch. It supports both I2C and SPI communication and provides high-resolution pressure data suitable for altitude estimation, environmental monitoring, and embedded sensing applications.
Digital pressure and temperature sensor
Supports I2C and SPI interfaces
High-resolution pressure measurement
Integrated temperature sensing
Fast conversion time
STEMMA QT / Qwiic connector available and compatible
Sensor Model: BMP580
Sensor Type: Barometric pressure and temperature sensor
Pressure Measurement Accuracy:
Relative accuracy: ±6 Pa (typical, room temperature)
Absolute accuracy: ±30 Pa (typical)
Pressure Noise: As low as 0.1 Pa
Altitude Resolution: Approximately 1.5 cm (relative)
Temperature Measurement Accuracy: ±0.5°C
Communication Interfaces:
I2C
SPI
Operating Voltage: Compatible with 3.3V and 5V logic systems
Interface Connector: STEMMA QT / Qwiic (JST-SH 4-pin)
Firmware Compatibility: Software compatible with BMP581
Module Form Factor: STEMMA QT breakout board
Country of Origin: Made in China
Altitude and height estimation
Drones and UAV altitude stabilization
Weather stations and barometric logging
Wearable and portable devices
Environmental monitoring
Embedded and IoT projects
VIN: Power input
GND: Ground
SDA: I2C data line
SCL: I2C clock line
SPI pins: Available via header pads (module dependent)
STEMMA QT: Plug-and-play I2C connection
1 x BMP580 temperature and pressure sensor module
QT cable not included
Altitude calculations require a reference sea-level pressure
Choose SPI if multiple devices with fixed I2C addresses are used
Designed for DC-powered systems only
The BMP580 sensor module provides precise pressure and temperature measurements with flexible I2C or SPI communication. With STEMMA QT / Qwiic compatibility and improved performance over previous BMP series sensors, it is well suited for modern altitude sensing and environmental monitoring applications.
