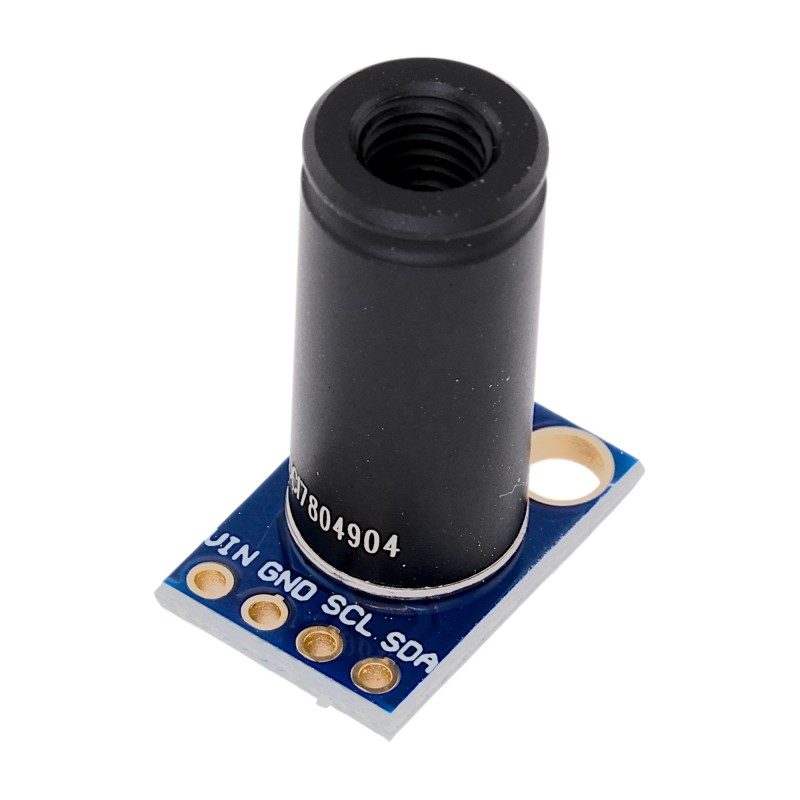

    GY-906 MLX90614-DCI Long-Range Infrared Temperature Sensor Module (Small Angle) Robotics Bangladesh
    • GY-906 MLX90614-DCI Long-Range Infrared Temperature Sensor Module (Small Angle) Robotics Bangladesh

    GY-906 MLX90614-DCI Long-Range Infrared Temperature Sensor Module (Small Angle)

    RBD-4088

    The GY-906 MLX90614-DCI is a non-contact infrared temperature sensor module designed for accurate object temperature measurement at a distance. It uses the MLX90614 infrared thermometry chip and communicates digitally over I2C, making it suitable for embedded systems, automation, and industrial temperature monitoring applications.

    BDT 4,250
    BDT 4,250 BDT 4,250 BDT 4,250 BDT 4,250
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 4,250 Tax excluded
    BDT 4,250 Tax included
    BDT 0 Tax
    BDT 4,250 Tax excluded
    BDT 0 Tax
    BDT 4,250 Tax included
    Quantity
    Last items in stock
    2 Items

    1 person has purchased this item
    Only 2 items left in stock
    Description

    Short Description

    The GY-906 MLX90614-DCI is a non-contact infrared temperature sensor module designed for accurate object temperature measurement at a distance. It uses the MLX90614 infrared thermometry chip and communicates digitally over I2C, making it suitable for embedded systems, automation, and industrial temperature monitoring applications.

    Key Features

    • Non-contact infrared temperature measurement

    • Small-angle field of view for long-range sensing

    • Factory-calibrated temperature output

    • High measurement resolution

    • Digital I2C communication interface

    • Onboard pull-up resistor for I2C

    • Internal voltage regulation for 3V to 5V operation

    Technical Specifications

    • Sensor Chip: MLX90614 (DCI small-angle version)

    • Measurement Type: Infrared thermometry (non-contact)

    • Communication Interface: I2C (SMBus compatible)

    • Power Supply Voltage: 3V to 5V (internal LDO regulator)

    • Object Temperature Range: -70°C to +380°C

    • Sensor Ambient Temperature Range: -40°C to +125°C

    • Measurement Accuracy: ±0.5°C (typical, 0 to 50°C range)

    • Measurement Resolution: 0.02°C

    • Output Types:

      • Digital I2C

      • Optional configurable PWM output

    • Pull-Up Resistor: 10 kΩ for I2C

    • Module Type: GY-906 breakout

    • Country of Origin: Made in China

    Applications / Use Cases

    • Non-contact temperature measurement

    • Body temperature sensing

    • Industrial temperature monitoring

    • Moving or hard-to-reach object measurement

    • HVAC and thermal comfort control

    • Home appliances with temperature regulation

    • Livestock and agricultural monitoring

    • Medical and healthcare equipment

    • Thermal alarms and safety systems

    Package Includes

    • 1 x GY-906 MLX90614-DCI infrared temperature sensor module

    Notes / Warnings

    • Measures surface temperature, not internal temperature

    • Ensure correct I2C address configuration when using multiple sensors

    • Soldering may be required depending on pin usage

    • Avoid strong reflective surfaces for best accuracy

    Reference Link

    Link: https://pan.baidu.com/s/1PEHq8qItdHAuIlr9_pSY2A
    Extraction code: bol6

    The GY-906 MLX90614-DCI infrared temperature sensor module provides precise, non-contact temperature measurement with a narrow sensing angle, making it well suited for long-range and targeted thermal sensing applications in embedded and industrial systems.
