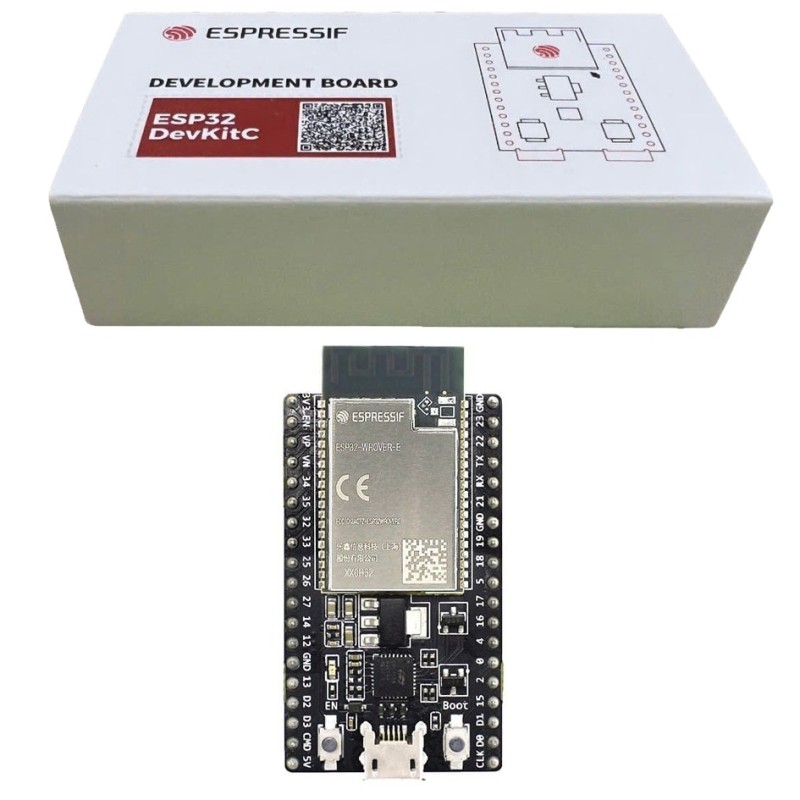

The ESP32-DEVKITC-VE from Espressif Systems is a high-performance evaluation and development board designed for advanced RF, RFID, IoT, and wireless applications. Powered by the ESP32-WROVER-E module, it integrates an Xtensa® dual-core 32-bit LX6 microprocessor running at up to 240 MHz, making it ideal for demanding embedded projects.
The ESP32-DEVKITC-VE from Espressif Systems is a high-performance evaluation and development board designed for advanced RF, RFID, IoT, and wireless applications. Powered by the ESP32-WROVER-E module, it integrates an Xtensa® dual-core 32-bit LX6 microprocessor running at up to 240 MHz, making it ideal for demanding embedded projects.
With 8MB Flash and 8MB PSRAM, along with 448KB ROM, 520KB SRAM, and 16KB RTC SRAM, this board provides abundant memory resources for complex applications such as AIoT, data logging, wireless communications, and multimedia processing.
Module: ESP32-WROVER-E
Processor: Xtensa® dual-core 32-bit LX6, up to 240 MHz
Memory:
8 MB Flash
8 MB PSRAM
448 KB ROM
520 KB SRAM
16 KB RTC SRAM
Connectivity:
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth® 4.x (BR/EDR and BLE)
I/O & Peripherals:
Up to 24 GPIOs
SD card interface
UART, SPI, SDIO, I2C
LED PWM, Motor PWM
I2S audio interface
IR remote control interface
Pulse counter
Capacitive touch sensor
12-bit ADC, 8-bit DAC
TWAI® (ISO 11898-1/CAN 2.0 compliant)
IoT and AIoT development
Wireless sensor networks
Industrial automation
Smart home and building control
Audio processing and streaming
Robotics and motor control
RFID and RF-based applications
1 × Espressif ESP32-DEVKITC-VE Development Board with ESP32-WROVER-E Module
