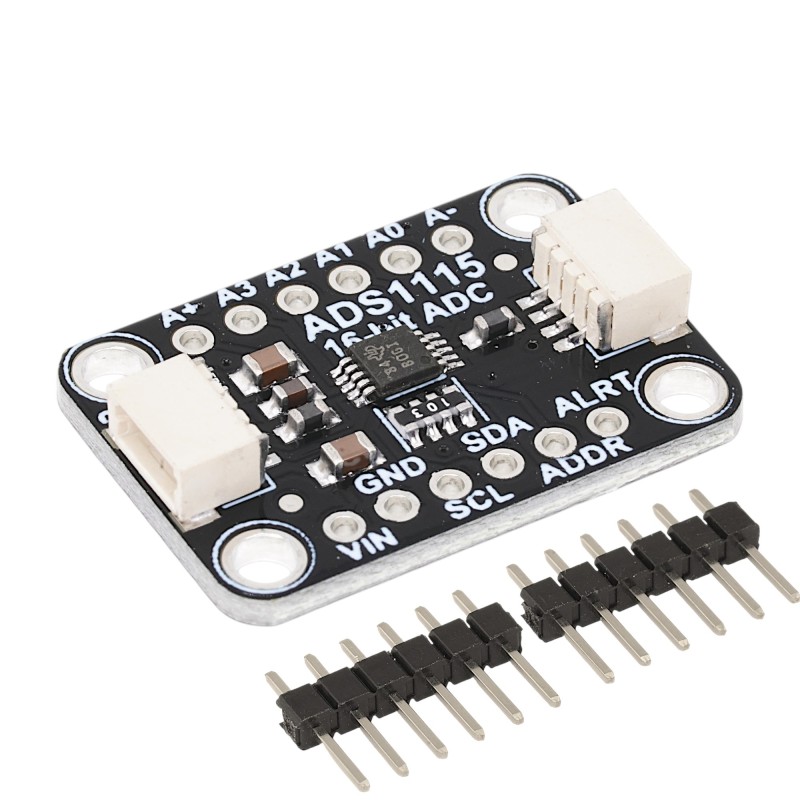

    ADS1115 16-Bit ADC with Programmable Gain Amplifier – STEMMA QT / Qwiic Compatible Robotics Bangladesh
    • ADS1115 16-Bit ADC with Programmable Gain Amplifier – STEMMA QT / Qwiic Compatible Robotics Bangladesh
    • ADS1115 16-Bit ADC with Programmable Gain Amplifier – STEMMA QT / Qwiic Compatible Robotics Bangladesh

    ADS1115 16-Bit ADC with Programmable Gain Amplifier – STEMMA QT / Qwiic Compatible

    RBD-4084

    The ADS1115 is a high-accuracy 16-bit analog-to-digital converter (ADC) with an integrated programmable gain amplifier. It supports four single-ended inputs or two differential inputs and communicates over I2C. This module is suitable for precision voltage measurement in embedded systems, data acquisition, and sensor interfacing applications.

    BDT 600
    BDT 600 BDT 600 BDT 600 BDT 600
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 600 Tax excluded
    BDT 600 Tax included
    BDT 0 Tax
    BDT 600 Tax excluded
    BDT 0 Tax
    BDT 600 Tax included
    Quantity
    5 Items

    1 person has purchased this item
    Only 5 items left in stock
    Description

    The ADS1115 is a high-accuracy 16-bit analog-to-digital converter (ADC) with an integrated programmable gain amplifier. It supports four single-ended inputs or two differential inputs and communicates over I2C. This module is suitable for precision voltage measurement in embedded systems, data acquisition, and sensor interfacing applications.

    Key Features

    • 16-bit resolution ADC

    • Four single-ended or two differential input channels

    • Integrated programmable gain amplifier up to ×16

    • Configurable data rate up to 860 samples per second

    • Low power consumption with single-shot mode

    • I2C communication interface

    • STEMMA QT / Qwiic connector available and compatible

    Technical Specifications

    • ADC Model: ADS1115

    • Resolution: 16-bit

    • Analog Input Channels:

      • 4 single-ended

      • 2 differential

    • Programmable Gain Amplifier: Up to ×16

    • Data Rate: 8 to 860 samples per second

    • Power Supply Voltage: 2.0V to 5.5V

    • Current Consumption:

      • Approximately 150 µA in single-shot mode

    • Communication Interface: I2C

    • I2C Address Options:

      • 0x48 (ADR to GND)

      • 0x49 (ADR to VDD)

      • 0x4A (ADR to SDA)

      • 0x4B (ADR to SCL)

    • Module Dimensions: 25.2 x 17.8 mm

    • Logic Level Compatibility: 3.3V or 5V

    • Country of Origin: Made in China

    Applications / Use Cases

    • Precision voltage measurement

    • Sensor signal acquisition

    • Data logging systems

    • Embedded and microcontroller projects

    • Industrial monitoring and control

    • Educational and laboratory use

    Package Includes

    • 1 x ADS1115 ADC module

    • 2 x 6-pin headers

    Notes / Warnings

    • Requires an I2C-compatible microcontroller

    • Ensure input voltage remains within configured PGA range

    • QT cable not included

    • Address pin must be set correctly to avoid I2C conflicts

    The ADS1115 ADC module provides a flexible and accurate solution for analog signal measurement. With its programmable gain, multiple input configurations, and STEMMA QT / Qwiic compatibility, it is well suited for a wide range of precision sensing and data acquisition applications.
