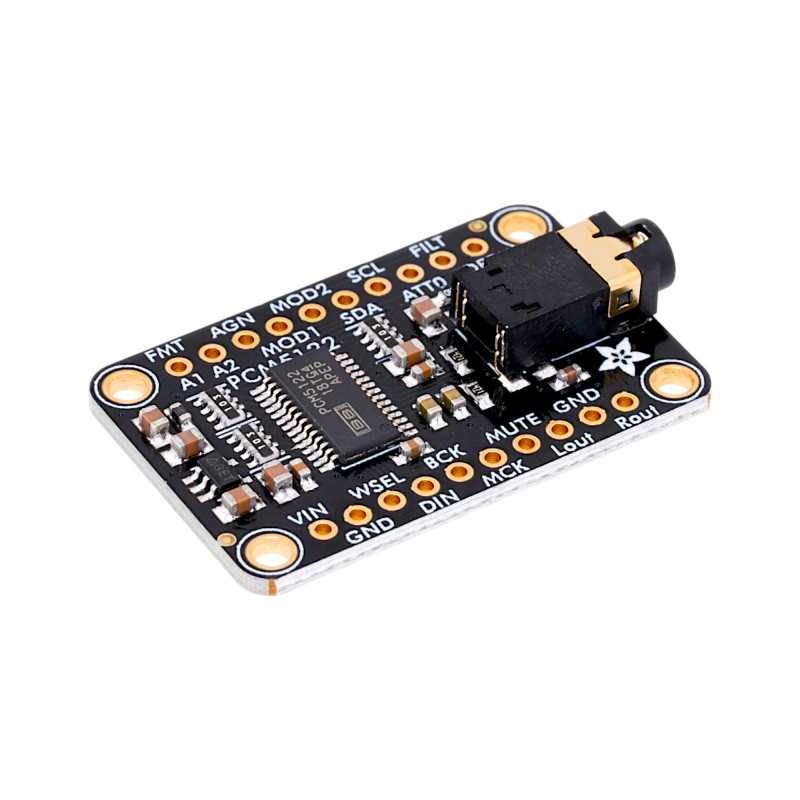

    PCM5122 I2S Stereo DAC with Line-Level Output (HW / I2C / SPI Configurable)

    RBD-4115

    The PCM5122 is a high-performance I2S digital-to-analog converter designed for converting digital audio from microcontrollers or single-board computers into high-quality stereo analog output. It supports simple hardware-only operation as well as advanced configuration via I2C or SPI, making it suitable for a wide range of audio projects.

    BDT 2,150
    BDT 2,150 BDT 2,150 BDT 2,150 BDT 2,150
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 2,150 Tax excluded
    BDT 2,150 Tax included
    BDT 0 Tax
    BDT 2,150 Tax excluded
    BDT 0 Tax
    BDT 2,150 Tax included
    Quantity
    Last items in stock
    1 Item

    Only 1 item left in stock
    Description

    Short Description

    The PCM5122 is a high-performance I2S digital-to-analog converter designed for converting digital audio from microcontrollers or single-board computers into high-quality stereo analog output. It supports simple hardware-only operation as well as advanced configuration via I2C or SPI, making it suitable for a wide range of audio projects.

    Key Features

    • High-quality stereo I2S DAC

    • Hardware mode works without configuration

    • Optional I2C or SPI control for advanced features

    • Line-level audio output via 3.5mm jack and breakout pads

    • No external MCLK required

    • Wide audio format and sample rate support

    Technical Specifications

    • DAC Chip: PCM5122

    • Audio Channels: Stereo

    • Audio Interface: I2S

    • Supported Audio Formats:

      • I2S

      • Left-Justified

      • Right-Justified

      • TDM / DSP

    • Audio Bit Depth: 16-bit, 20-bit, 24-bit, 32-bit

    • Sampling Rate: Up to 384 kHz

    • Signal-to-Noise Ratio / Dynamic Range: 112 dB

    • THD+N: -93 dB (at -1 dBFS)

    • Power Supply Voltage: 3V to 5V

    • Digital Logic Level: 3.3V

    • Control Interfaces:

      • Hardware pin configuration

      • I2C

      • SPI

    • Output Type: Line-level analog audio

    • Minimum Load Impedance: 1 kΩ

    • Output Coupling: DC-coupled (centered on ground)

    • Dimensions: 37.6 x 22.8 x 6.4 mm

    • Country of Origin: Made in China

    Applications / Use Cases

    • Digital audio projects with ESP32, RP2040, or similar MCUs

    • Raspberry Pi audio output

    • DIY audio players and streamers

    • Embedded audio systems

    • Line-level audio signal generation

    • Educational audio and signal processing projects

    How to Use

    • Supply the board with 3V to 5V power

    • Connect I2S signals: BCLK, WSEL (LRCK), and DIN

    • Use hardware mode for immediate operation, or configure via I2C/SPI for advanced control

    • Connect line-level output via the 3.5mm jack or analog output pads

    Package Includes

    • 1 x PCM5122 I2S stereo DAC breakout board

    • Pin header (not soldered)

    Notes / Warnings

    • This is a line-level output DAC and cannot drive headphones directly

    • Requires a load of 1 kΩ or higher

    • QT cable not applicable

    • Ensure correct I2S signal timing and logic levels

    The PCM5122 I2S DAC breakout provides a flexible and high-quality solution for digital audio conversion. With excellent audio performance and multiple configuration options, it is well suited for both quick prototyping and advanced audio system design.

    Product Details
    RBD-4115
    1 Item

    Specific References

    EAN13
    4115
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    JQ6500 HW-896 V1.2 Voice Sound MP3 Player Module Robotics Bangladesh JQ6500 HW-896 V1.2 Voice Sound MP3 Player Module Robotics Bangladesh

    Reference: RBD-2065

    JQ6500 HW-896 V1.2 Voice Sound MP3 Player Module

    (0)
    Play standard mono or stereo MP3 files Control with buttons Serial communications protocol (JQ6500 Arduino Library available). Power supply 4.2V Speaker power 4 ohms / 3 watts
    BDT 390
    BDT 390 tax incl.
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 390 tax incl.
    BDT 390 tax incl.
    BDT 0 Tax
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 0 Tax
    BDT 390 tax incl.
    More JQ6500 HW-896 V1.2 Voice Sound MP3 Player Module
    In-Stock
    In stock: 5
    PCB Mounted Passive Buzzer Module Robotics Bangladesh PCB Mounted Passive Buzzer Module Robotics Bangladesh

    Reference: RBD-2085

    PCB Mounted Passive Buzzer Module

    (0)
    Operating Voltage : 1.5 ~ 15V DC Working Current: Less than 25mA Tone Generation Range : 1.5 ~ 2.5kHz Dimensions (LxWxH):  26 x 15 x 11 mm
    BDT 69
    BDT 69 tax incl.
    BDT 69 tax excl.
    BDT 69 tax excl.
    BDT 69 tax incl.
    BDT 69 tax incl.
    BDT 0 Tax
    BDT 69 tax excl.
    BDT 69 tax excl.
    BDT 0 Tax
    BDT 69 tax incl.
    More PCB Mounted Passive Buzzer Module
    In-Stock
    In stock: 177
    VS1053 MP3 Recording Module Development Board with Onboard Recording Function Robotics Bangladesh

    Reference: RBD-3444

    VS1053 MP3 Recording Module Development Board with Onboard Recording Function

    (0)
    VS1053 MP3 Recording Module with real-time OGG encoding support Supports multiple audio formats including MP3, WAV, and MIDI SPI interface for easy microcontroller integration Onboard microphone, line-in input, and stereo headphone output TF (microSD) card slot for audio storage and playback Ideal for MP3 players, voice recorders, and embedded audio systems
    BDT 680
    BDT 680 tax incl.
    BDT 680 tax excl.
    BDT 680 tax excl.
    BDT 680 tax incl.
    BDT 680 tax incl.
    BDT 0 Tax
    BDT 680 tax excl.
    BDT 680 tax excl.
    BDT 0 Tax
    BDT 680 tax incl.
    More VS1053 MP3 Recording Module Development Board with Onboard Recording Function
    In-Stock
    In stock: 10

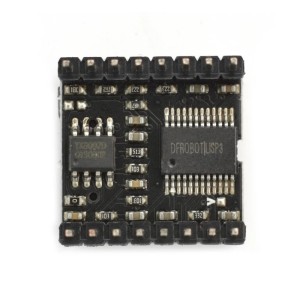

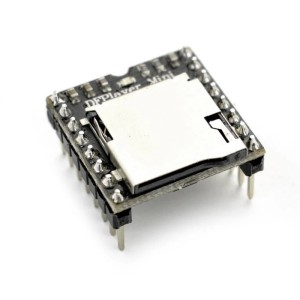

    DFPlayer Mini MP3 Player for DIY Arduino / ESP32 Sound Project DFRobot Robotics Bangladesh DFPlayer Mini MP3 Player for DIY Arduino / ESP32 Sound Project DFRobot Robotics Bangladesh
