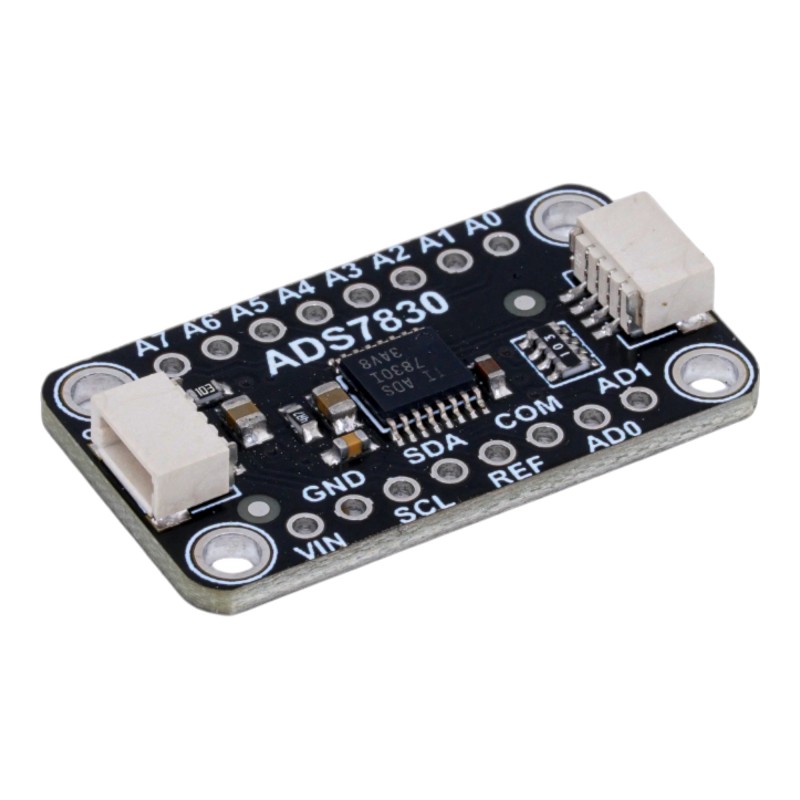

    ADS7830 8-Bit Analog-to-Digital Converter Module 8-Channel, I2C Interface Robotics Bangladesh
    • ADS7830 8-Bit Analog-to-Digital Converter Module 8-Channel, I2C Interface Robotics Bangladesh
    • ADS7830 8-Bit Analog-to-Digital Converter Module 8-Channel, I2C Interface Robotics Bangladesh

    ADS7830 8-Bit Analog-to-Digital Converter Module 8-Channel, I2C Interface

    RBD-4222

    The ADS7830 Analog-to-Digital Converter Module is an 8-bit, multi-channel ADC module designed to expand analog input capability for microcontrollers and single-board computers. It supports up to 8 single-ended or 4 differential analog inputs and communicates via the I2C interface, making it suitable for systems with limited native ADC channels.

    BDT 822
    BDT 822 BDT 822 BDT 822 BDT 822
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 822 Tax excluded
    BDT 822 Tax included
    BDT 0 Tax
    BDT 822 Tax excluded
    BDT 0 Tax
    BDT 822 Tax included
    Quantity
    Last items in stock
    1 Item

    7 people recently added this item to the cart
    Only 1 item left in stock
    Description

    Product Overview
    The ADS7830 Analog-to-Digital Converter Module is an 8-bit, multi-channel ADC module designed to expand analog input capability for microcontrollers and single-board computers. It supports up to 8 single-ended or 4 differential analog inputs and communicates via the I2C interface, making it suitable for systems with limited native ADC channels.

    With wide voltage compatibility and low power consumption, this module is ideal for multi-sensor data acquisition, industrial monitoring, and battery-powered applications.

    Key Features

    • 8-channel analog input support with single-ended or differential configuration

    • 8-bit ADC resolution with 256 quantization levels

    • I2C communication interface with selectable addresses from 0x48 to 0x4F

    • Wide operating voltage range from 2.7V to 5.5V

    • Low power consumption suitable for battery-powered systems

    • Built-in 2.5V reference voltage, with support for external reference input

    • Compact module design for easy integration

    Technical Specifications

    • ADC Model: ADS7830

    • Resolution: 8-bit (256 levels)

    • Input Channels: 8 single-ended or 4 differential

    • Interface: I2C

    • I2C Address Range: 0x48 to 0x4F

    • Sampling Rate: Up to 100 kSPS (theoretical)

    • Input Voltage Range: 0 to VREF

    • Default Reference Voltage: 2.5V (external reference supported)

    • Supply Voltage: 2.7V to 5.5V

    • Operating Temperature: -40°C to +85°C

    • Module Dimensions: 17.6 mm × 25.3 mm

    How to Use
    Power the module within the supported voltage range and connect it to a microcontroller via the I2C interface. Configure the I2C address as required and read analog input values digitally through I2C commands.

    Applications

    • Multi-channel sensor data acquisition

    • Industrial control signal monitoring

    • Battery-powered embedded systems

    • Analog input expansion for Arduino and Raspberry Pi

    • Data logging and measurement systems

    Package Includes

    • ADS7830 Analog-to-Digital Converter Module × 1

    • 2.54 mm pin header set (soldering required)

    Why Choose
    This module provides a simple and reliable way to add multiple analog input channels via I2C, with low power consumption and flexible voltage support, making it suitable for a wide range of embedded and industrial applications.

    Product Details
    RBD-4222
    1 Item

    Specific References

    EAN13
    4222
