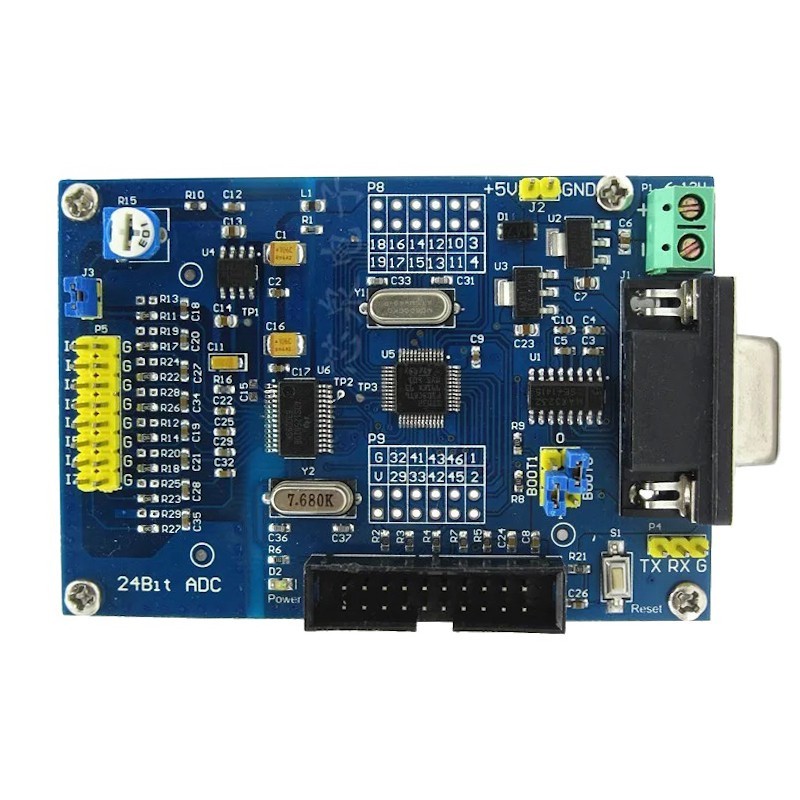

    ADS1256 24-bit ADC Module with Serial Output

    RBD-3474

    • ADS1256 24-bit ADC Module for ultra high-precision data acquisition
    • 8-channel analog input (single-ended or differential)
    • Integrated STM32F103C8T6 (72MHz ARM Cortex-M3) controller
    • Stable 2.5V precision reference for low-noise measurement
    • Serial UART output in ASCII format for easy PC interfacing
    • Ideal for industrial automation, lab instrumentation, and sensor logging
    BDT 2,990
    BDT 2,990 BDT 2,990 BDT 2,990 BDT 2,990
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 2,990 Tax excluded
    BDT 2,990 Tax included
    BDT 0 Tax
    BDT 2,990 Tax excluded
    BDT 0 Tax
    BDT 2,990 Tax included
    Quantity
    Last items in stock
    3 Items

    2 people have purchased this item
    Only 3 items left in stock
    Description

    The ADS1256 24-bit ADC Module is a professional-grade data acquisition board designed for applications that demand extremely high accuracy and low-noise analog measurement. Built around the powerful ADS1256 24-bit ADC chip and controlled by the STM32F103C8T6 ARM Cortex-M3 microcontroller, this module delivers reliable and stable conversion performance for industrial control, laboratory instrumentation, and scientific research. It supports up to 8 analog input channels, allowing both single-ended and differential configurations for flexible sensor integration. With onboard 5V/3.3V regulation, anti-reverse protection, and a precision 2.5V reference source, the module ensures consistent and safe operation. Moreover, it outputs data via UART in ASCII format, making it easy to connect with a PC through USB-TTL for direct real-time voltage monitoring. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Ultra High Resolution (24-bit ADC) – Capture extremely small voltage changes with high accuracy and minimal noise.

    2. 8 Analog Input Channels – Support both single-ended and differential inputs for versatile sensor configurations.

    3. Onboard STM32F103C8T6 MCU – Handles communication, data processing, and stable ADC control efficiently.

    4. Precision 2.5V Reference Voltage – Ensures accurate and repeatable measurements for sensitive applications.

    5. Dual Power Options – Operates via 5V/3.3V onboard supply or 5.5V–12V external DC input for flexible deployment.

    6. Serial ASCII Output – Simplifies development by allowing direct monitoring through serial terminal software.

    7. Full GPIO Breakout – All STM32 GPIO pins are accessible for advanced customization and secondary development.

    8. Safe & Developer Friendly Design – Includes reverse polarity protection, reset button, power LED, and JTAG support.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. High-Precision Sensor Data Acquisition – Measure load cells, pressure sensors, thermocouples, and precision analog sensors.

    2. Industrial Process Control – Monitor voltage and sensor feedback in automation systems.

    3. Laboratory Data Logging – Record accurate voltage signals for research and experimentation.

    4. Energy Monitoring Systems – Capture precise measurement data for power analysis applications.

    5. Embedded System Prototyping – Ideal for engineers developing custom measurement devices.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product NameADS1256 24-bit ADC Module
    ADC ChipADS1256IDB (24-bit)
    MCUSTM32F103C8T6 (ARM Cortex-M3, 72MHz)
    Analog Channels8 Channels (Single-Ended / Differential)
    Resolution24-bit
    Reference Voltage2.5V Precision Regulator
    Power Supply5V / 3.3V Onboard Regulation
    External Input Range5.5V – 12V DC
    Crystal Frequency8MHz (System Clock 72MHz)
    CommunicationUART Serial (ASCII Output)
    PC InterfaceUSB-TTL Converter Required
    Test InputOnboard Adjustable Potentiometer
    GPIO AccessFull STM32 GPIO Breakout
    Programming InterfaceSerial Bootloader / JTAG (JLINK V8/V9 Compatible)
    Board Dimensions82.8mm × 53.4mm × 1.6mm
    Shipment Weight0.039 kg
    Shipment Dimensions9 × 6 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x ADS1256 24-bit ADC Module with Serial Output
