Product Description:

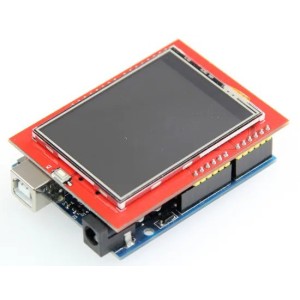

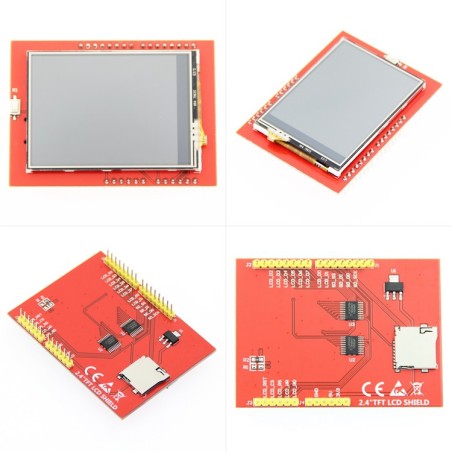

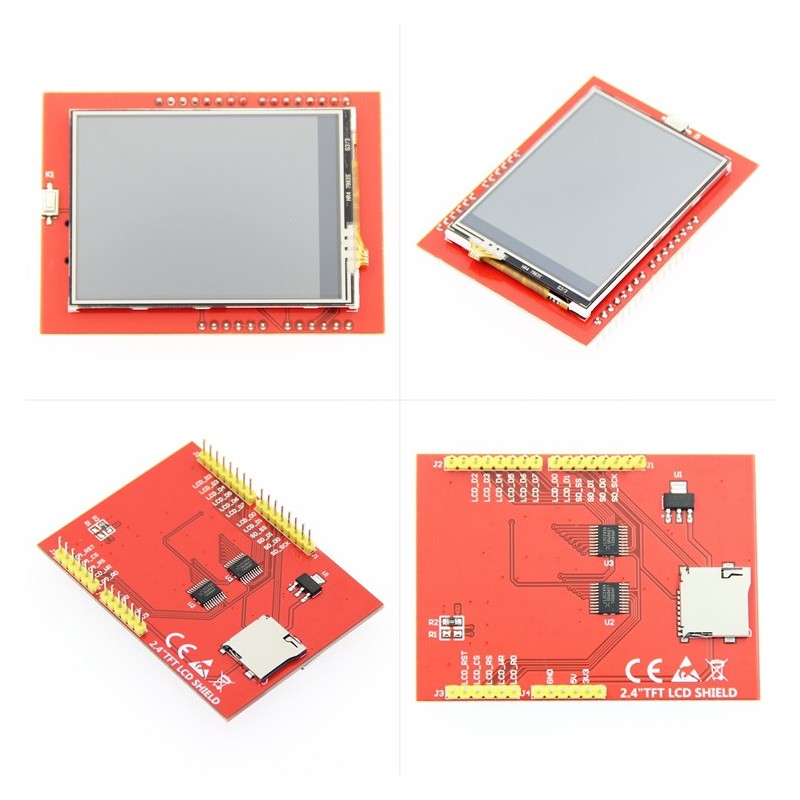

The 2.4 Inch TFT LCD Touch Display Module (MAR2406) is a full-color, high-resolution display module designed for Arduino UNO and Mega2560 boards. Featuring the ILI9341 driver, it offers a 320x240 pixel resolution, 65K RGB color depth, and a resistive touch panel, making it perfect for creating graphical user interfaces and interactive embedded projects.
With its 8-bit parallel interface, this module delivers faster refresh rates than SPI alternatives, while the onboard level-shifting IC ensures compatibility with both 5V and 3.3V systems. It also includes an SD card slot for media expansion and comes with a complete Arduino library and example programs for rapid development.
Key Features:
Full-Color Display: 2.4-inch TFT LCD with RGB 65K colors for vibrant visual output.
High Resolution: 320x240 pixels with a clear and crisp interface.
Touch Functionality: Integrated resistive touch panel for user interaction.
Fast 8-Bit Parallel Interface: Delivers quicker screen updates compared to SPI modules.
Multi-Platform Support: Compatible with Arduino UNO, Mega2560, and other 3.3V/5V logic level boards.
Built-in SD Card Slot: For loading external resources such as images or fonts.
Level-Shifting IC: Ensures safe operation with both 3.3V and 5V MCUs.
Military-Grade PCB Standards: Built for durable, long-term stable performance.
Extensive Documentation & Driver Support: Includes Arduino libraries, sample codes, schematics, and datasheets.
Technical Specifications:
| Name | Parameter |
|---|
| Display Color | RGB 65K color |
| Screen Size | 2.4 inch |
| Display Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320 x 240 pixels |
| Interface Type | 8-bit parallel |
| Active Area | 48.96 x 36.72 mm |
| PCB Size | 72.2 x 52.7 mm |
| Operating Voltage | 5V / 3.3V |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -30°C to 70°C |
| Power Consumption | TBD |
| Weight (with packaging) | 39g |
| SKU | MAR2406 |
Pinout Interface (Key Pins):
LCD_RST – Reset
LCD_CS – Chip Select (Low active)
LCD_RS – Command/Data selection
LCD_WR / LCD_RD – Write/Read signals
LCD_D0-D7 – 8-bit Data bus
5V / 3V3 / GND – Power supply options
SD_SS / SD_DI / SD_DO / SD_SCK – SD Card SPI interface
How to Use with Arduino:
Download the test program and unzip the files.
Plug the display module into the Arduino UNO or Mega2560 board.
Copy dependent libraries from the provided folder to your Arduino libraries directory.
Open example sketches, compile and upload them via Arduino IDE.
Observe output — the display should activate with UI or test graphics.
Applications:
Arduino-based GUI development
DIY control panels and interactive menus
Sensor dashboards and monitoring interfaces
Embedded systems prototyping
Educational electronics and learning projects
Package Includes:
Why Choose This Display Module?
Whether you're designing a custom interface or building an interactive electronics project, this 2.4” TFT LCD module delivers vibrant visuals, fast response, and intuitive touch control. With robust compatibility, rich documentation, and easy plug-and-play Arduino support, it’s an excellent display for makers, engineers, and educators.
Bring your Arduino projects to life with the MAR2406 TFT Touch Display – order now and start building interactive experiences today!
How to use on Arduino
- Step 1: Download the test program
- Download the Arduino test program from the Program Download column
- For a description of the relevant test procedures, please refer to the test program documentation in the package
- Step 2: Connect the Arduino development board
- Plug the module directly into the Arduino development board ( Do not plug in?)
- After the module is plugged in, power on the Arduino board
- Step 3: Copy the dependent library
- Make sure the Arduino IDE is installed on your computer (if it is not installed: Arduino IDE download URL)
- After installing the Arduino IDE, you need to copy the dependent library to the Arduino project directory as follows:
- (1) Decompress the downloaded test package
- (2) Copy the dependent libraries in the Install libraries directory in the package (shown below) to the libraries folder
- of the Arduino project directory （ Don't know the Arduino project directory?）
- Step 4: Compile and download the program to the development board
- Open the sample in the Example directory of the package to test, compile and download（ Don't know how to compile and download?）
- Step 5: Observe the running of the program
- After the program is downloaded, run it directly and observe the running status. If it can be displayed normally, the program runs
- successfully, as shown in the following figure (take the colligate_test test program as an example):
