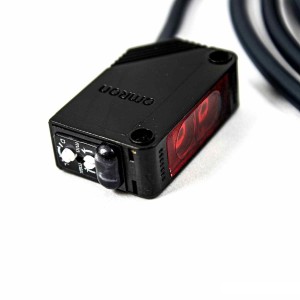

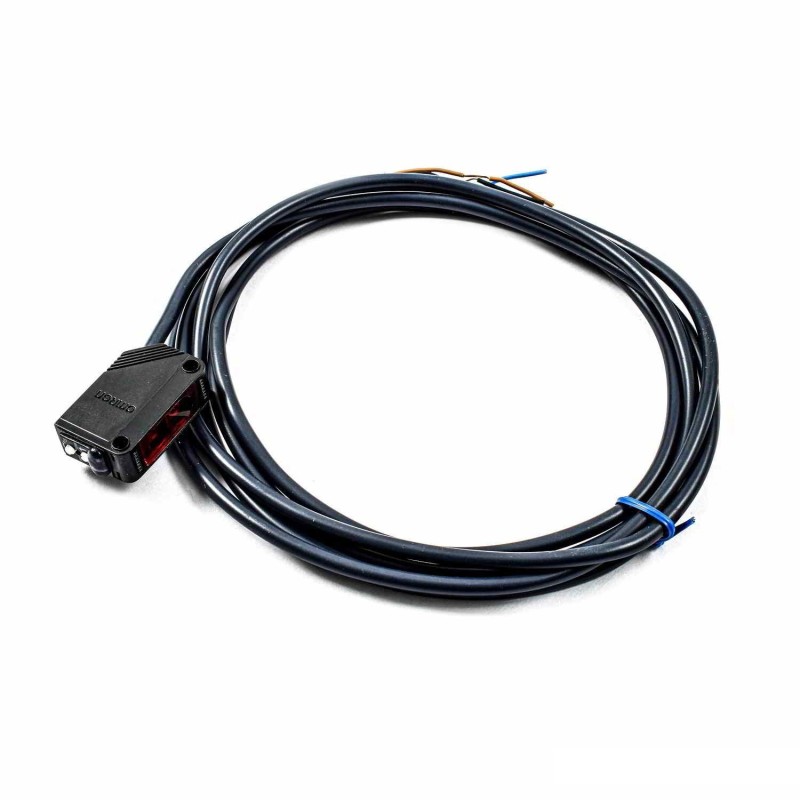

    OMRON E3Z-D61 Compact Photoelectric Sensor

    RBD-3464

    • OMRON E3Z-D61 Photoelectric Sensor with diffuse-reflective detection
    • Sensing distance 5mm to 100mm with infrared LED (860nm)
    • NPN open collector output (up to 100mA load current)
    • Selectable Light-ON / Dark-ON operation mode
    • IP67 rated housing for water and dust resistance
    • Fast response time ≤1ms for high-speed automation
    BDT 1,550
    BDT 1,550 BDT 1,550 BDT 1,550 BDT 1,550
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,550 Tax excluded
    BDT 1,550 Tax included
    BDT 0 Tax
    BDT 1,550 Tax excluded
    BDT 0 Tax
    BDT 1,550 Tax included
    Quantity
    In-Stock
    10 Items

    2 people recently added this item to the cart
    10 items in stock
    Description

    The OMRON E3Z-D61 Compact Photoelectric Sensor is a high-precision diffuse-reflective sensor designed for reliable object detection in industrial automation and smart manufacturing systems. It uses an infrared LED light source (860nm) and offers a sensing range from 5mm to 100mm, ensuring accurate detection even in demanding environments. Because it features an NPN open collector output with selectable Light-ON or Dark-ON modes, it adapts easily to different control logic requirements. Moreover, its compact IP67-rated housing protects against dust and water, making it suitable for harsh factory conditions. The built-in surge suppression, short-circuit protection, and reverse polarity protection enhance operational safety and stability. With a pre-wired 2-meter cable, installation becomes simple and efficient. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Diffuse-Reflective Detection – Accurately detects objects without requiring a separate reflector.

    2. Wide Sensing Range – Operates from 5mm to 100mm for flexible installation.

    3. Selectable Output Mode – Choose between Light-ON or Dark-ON depending on system logic.

    4. High-Speed Response – 1ms maximum response time supports fast production lines.

    5. IP67 Protection – Fully protected against dust and water ingress.

    6. Industrial-Grade Durability – Operates reliably between -10% to +10% voltage tolerance at 12–24V DC.

    7. Built-in Protection Circuits – Includes surge suppression, short-circuit, and reverse polarity protection.

    8. LED Status Indicators – Green and orange indicators simplify monitoring and troubleshooting.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Conveyor Systems – Detect object presence and movement on production lines.

    2. Packaging Machines – Ensure correct item positioning and counting.

    3. Assembly Robots – Provide accurate part detection for automated tasks.

    4. Smart Warehouses – Enable object sensing in logistics automation.

    5. Material Handling Systems – Improve operational efficiency with reliable detection.

    6. Industrial Safety Systems – Monitor object presence for process control.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelE3Z-D61
    Sensing MethodDiffuse-Reflective
    Sensing Distance5mm – 100mm
    Light SourceInfrared LED (860nm)
    Power Supply Voltage12V – 24V DC (±10%)
    Current Consumption30mA Max
    Output TypeNPN Open Collector
    Load Current0 – 100mA
    Residual Voltage≤1V (<10mA), ≤2V (10–100mA)
    Operation ModeLight-ON / Dark-ON Selectable
    Response Time≤1ms
    Protection RatingIP67
    Cable Length2 meters (Pre-wired)
    Operating TemperatureIndustrial Grade
    Standards ComplianceEN60947-5-2, EN55011
    Shipment Weight0.052 kg
    Shipment Dimensions200 × 12 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x OMRON E3Z-D61 Compact Photoelectric Sensor
