Product Description:

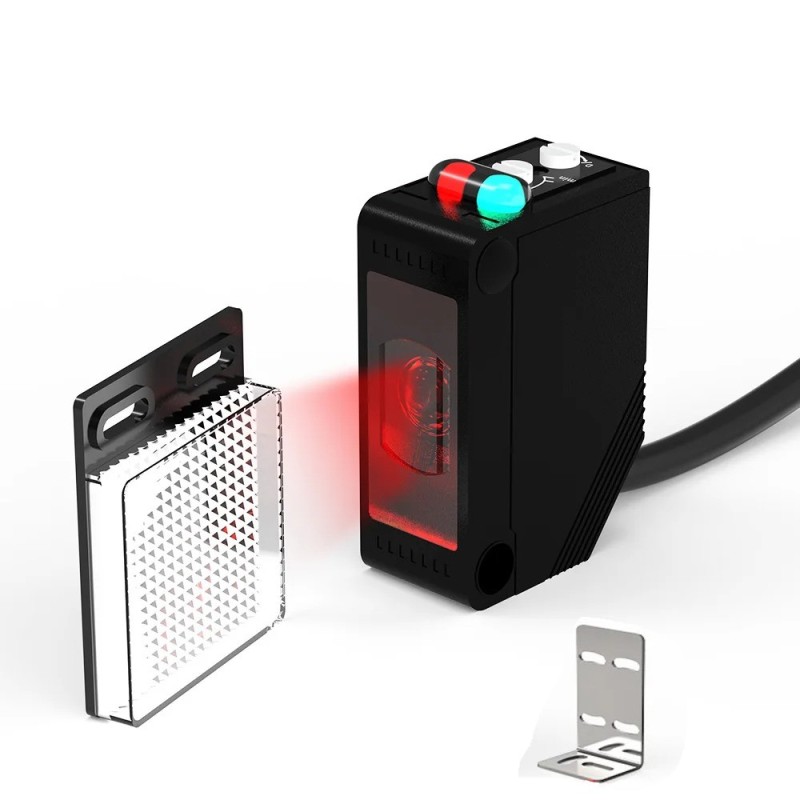

The E3Z-R81 PNP Retroreflective Photoelectric Sensor with TD08 reflective plate offers high-precision object detection for industrial automation and positioning applications. Using polarized infrared light, it ensures accurate detection even on shiny or reflective surfaces. With a sensing range of up to 4 meters, selectable Dark-ON/Light-ON modes, and a fast 1 ms response time, this sensor is ideal for reliable performance in demanding environments.
The included TD08 retroreflective plate enhances detection accuracy and stability. Built with a rugged PBT housing and a denatured polyallylate lens, the sensor is rated IP67/IP69k for dustproof and waterproof operation, making it suitable for harsh industrial conditions.
Key Features:
Complete Set: Sensor + TD08 retroreflective plate
Long Range Detection: Up to 4 m with reflector
Output Type: PNP, selectable Dark-ON or Light-ON modes
Fast Response: 1 ms switching time for high-speed applications
Durable Build: PBT body and denatured polyallylate lens
High Protection: IP67/IP69k for dust and water resistance
Easy Adjustment: Single-turn sensitivity control
Wide Voltage Range: 12–24 VDC operation
Technical Specifications:
Measurement Range: 4 m
Switching Voltage: ≤ 26.4 VDC
Switching Current: ≤ 100 mA
Power Consumption: 30 mA max
Sensing Mode: Polarized retroreflective
Light Source: Infrared LED
Lens Material: Denatured Polyallylate
Body Material: PBT
Body Style: Rectangular
Mounting: Bracket mount
Operating Temperature: -25°C to +55°C
Weight: ~20 g (0.7 oz)
Applications:
Position detection on conveyors
Object counting and sorting
Industrial automation control
Safety and presence detection in machinery
Package Includes:
Why Choose This Sensor Kit?
This set combines the precision of the E3Z-R81 photoelectric sensor with the reliability of the TD08 reflective plate, offering an efficient and rugged solution for high-accuracy detection in industrial automation, packaging, and conveyor systems.
